Yamaha - PSREW410

Description

*** NO MUSIC REST ***

PSR-EW410 is the best 76-note keyboard for performing various styles of music, from the latest to vinyl favourites, featuring a high-res piano sample, powerful on-board speakers and easy-to-use professional features like assignable Live Control knobs, Quick Sampling, Groove Creator, USB Audio Recorder and optional subwoofer.

Yamaha has a proud history of manufacturing just about every kind of musical instrument. When it comes to reproducing the sound of these instruments in a keyboard, the results are detailed and high-quality. The PSR-EW410 features a comprehensive library of 758 instrument Voices that will allow you to enjoy playing any musical genre.

High performance, more powerful

12W + 12W amplifiers power the high-definition 12 cm Bass Reflex speakers, delivering electrifying, crystal clear sound, and offering solid support in standalone performance situations.

Intuitive "Live Control Knob" interface

• Change sounds on-the-fly by switching the effect destination!
• Two assignable, real-time control knobs let you filter and adjust your sound just like an analog synthesizer.
• 10 DSP effects can be assigned and controlled by the knobs for dynamic and expressive live performance.
• The Pitch Bend wheel adjusts the pitch of the sound bringing voices like the Guitar, Sax and Trumpet to life.
• "Target" button supports quick target change of effect destination.

More convenient USB TO DEVICE terminal

You can record your performances to USB Flash Drives. The USB TO DEVICE terminal on the instrument lets you load and save your settings and songs to a USB flash drive, as well as transfer data from your PC.

Arpeggio function

Tap into instant inspiration with the Arpeggio function, which has been improved for smoother playability. 'Hold Mode' and 'Allocated Key-Range' free your hands, allowing you to improvise over the pattern. The 150 Arpeggio patterns adjust and morph around the notes and chords you play on the keyboard allowing for almost limitless creativity.

The Yamaha PSR-EW series portable keyboards, with innovative features, simple connectivity, and light-weight and portable design, are the logical and affordable partner for the next step in learning to play the piano.

Features

* 758 high quality voices including Live!, Sweet! and Cool! voices, with 48-note polyphony
* Quick Sampling function - 7 sample (1 Normal type + 6 One shot/Loop type) Max 9.6 sec/sample
* Groove Creator function - 35 grooves, 5 sections(4 main +1 Musical Climax)
* 235 auto accompaniment Styles provide real-time band backing tracks based on the chords you play
* USB Audio Recorder - 80 minutes. (.wav)
* 12W + 12W amplifiers with 12 cm Bass Reflexed speakers
* Assignable real-time Control Knobs, DSP Effects, and Pitch Bend
* Connectivity with audio and MIDI capabilities
* USB TO DEVICE terminal
* AUX IN for connecting and playing along with your favorite music
* Arpeggio function
* Worldwide sounds support multiple kinds of music

Specs

Control Interface

Number of Keys: 76
Touch Response: Soft, Medium, Hard, Fixed
Other Controls: Pitch bend; 2 x Control knobs
Display: LCD (Liquid Crystal Display)
Display Language: English
Panel Language: English

Voices

Tone Generation: AWM stereo sampling
Polyphony: 48 maximum
Number of Voices:
- 758 (237 panel voices + 24 drum/SFX kits + 40 arpeggio + 457 XGlite voices)
- Featured Voices: 1 Live! voice, 8 Sweet voices, 3 Cool voices, 3 Dynamic voices
Compatibility: GM; XGlite

Effects

Types:
- DSP: 10 types (assignable on control knobs)
- Reverb: 12 types
- Chorus: 5 types
- Master EQ: 6 types
- Harmony: 26 types

Functions:
- Dual/Layers
- Split
- Arpeggio: 150 types
- Melody Suppressor
- Crossfade (for internal/AUX IN)

Accompaniment Styles

Preset
Number of Preset Styles: 235
Fingering: Multi Finger
Style Control: ACMP on/off, Sync Start, Sync Stop, Start/Stop, Intro/Ending/rit., Main/Auto Fill, Track On/Off
File Format: Style file format (SFF)
Other features: One Touch Setting (OTS)
Expansion style: 10

Groove Creator
Number of Grooves: 35
Number of Sections: 5 (4 Sections + 1 Musical Climax/Ending)

Songs

Number of Preset Songs: 30

Recording
Number of Songs: 10
Number of Tracks: 6 (5 Melody + 1 Style/Groove Creator)
Data Capacity: Approximately 19,000 notes (when only Melody tracks are recorded)
Recording Function: Yes
Data Playback: SMF (formats 0 & 1)
Recording: Original file format (SMF 0 conversion function)

USB Audio Recorder
Recording Time: 80 minutes (approx. 0.9 GB) per song
Playback: WAV (16-bit, 44.1 kHz stereo)
Recording: WAV (16-bit, 44.1 kHz stereo)

Quick Sampling

Type: Normal, Oneshot, Loop
Samples (Preset/User): 7
Sampling Time: Approximately 9.6 seconds
Sampling Sources: AUX IN
Sampling Format: Original file format (16-bit, stereo)
Sampling Rate: 44.1 kHz

Functions

Registration: Number of Buttons: 4 (switchable between 8 banks)
Audio Interface: USB, 16-bit, 44.1 kHz, stereo
Other Controls: Metronome: Yes
Tempo Range: 11 to 280
Transpose: -12 to 0, 0 to +12
Tuning: 427.0 to 440.0 to 453.0 Hz (approx. 0.2 Hz increments)
Scale Setting: Yes
Piano Button: Yes (Portable Grand Button)

Storage and Connectivity

Storage
Internal Memory: Approximately 1.73 MB
External Drives: USB flash drive

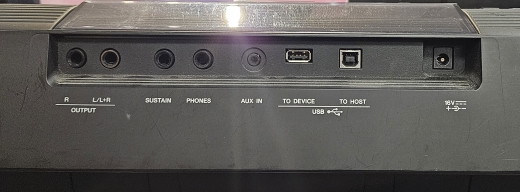

Connectivity
DC In: 16 V
AUX In: Yes (stereo-mini)
Headphones: 1 x 1/4" / 6.3 mm phones output
Sustain Pedal
USB to Device
USB to Host (MIDI/audio, 16-bit, 44.1 kHz stereo)

Miscellaneous

Amplifiers and Speakers
Amplifiers: 12 W + 12 W (when using PA-300C AC adapter)
Speakers: 2 x 4.7" / 12 cm

Power Supply
AC Adapters: PA-300C or an equivalent recommended by Yamaha (not included)
Batteries: 6 x "D" size alkaline (LR20), manganese (R20) or Ni-MH rechargeable (HR20)

Power Consumption
11 W (when using PA-300C AC adapter)
Auto Power Off Function

Dimensions (W x H x D): 1,179 X 138 X 413 mm / 46-3/8 x 5-7/16 x 16-1/4"
Weight: 8.4 kg / 18.5 lb

Included Accessories: Music Rest, Song Book (download from website)
