Sennheiser - XSW 2-ME3-A

Description

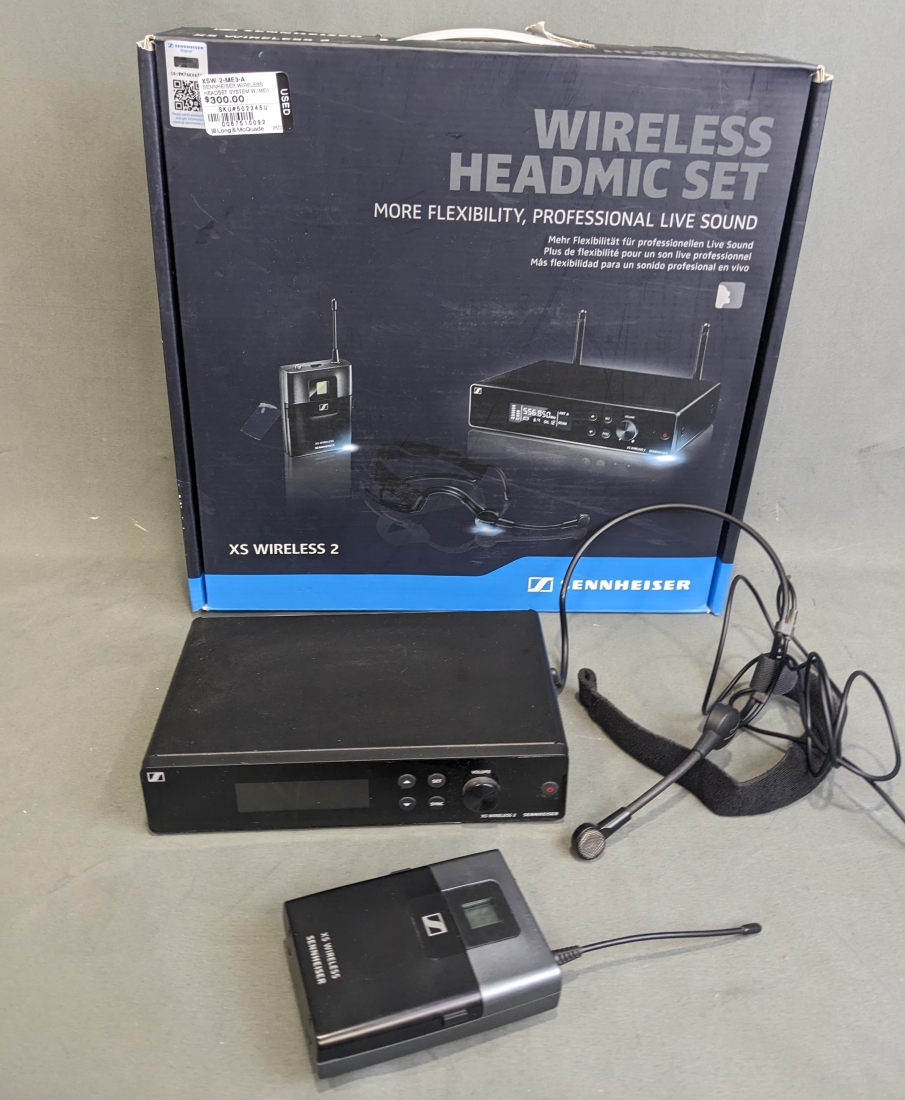

The XS WIRELESS 2 HEADMIC SET is an easy to use all-in-one wireless system for singers and performers, excellent for live sound that involves dancing and singing all at the same time.

Features:
* Lightweight headmic for hands-free operation and compact bodypack transmitter
* True diversity receiver with metal housing
* External antennas
* Automatic frequency management and synchronization via remote channel for easy setup
* Fully tunable over a wide range of UHF frequencies
* Rackmount kit included
* Up to 12 compatible channels

Receiver Specifications:
* Dimensions: approx. 200 x 42 x 127 mm
* Weight: approx. 680g
* Power supply: 12 V DC nom. / 300 mA
* Housing: Metal
* AF frequency response: 50 to 16,000 Hz (3 dB)

Transmitter Specifications:
* Dimensions: approx. 71 x 96 x 28 mm
* Weight: approx. 95g
* Operating time: approx. 10 hrs
* Power supply: 2 AA size batteries, 1.5 V
* Housing: Robust ABS
* AF frequency response: 50 to 16,000 Hz

Microphone Specifications:
* Microphone: condenser
*Frequency response: 50 to 16,000 Hz (3 dB)
* THD, total harmonic distortion: less than/equal to 0.9%
* Pick-up pattern: cardioid
* Signal-to-noise ratio: less than/equal to 103 dBA
* RF output power: 10 mW
* Switching bandwidth: up to 24 MHz
* Modulation: wideband FM
* Output voltage: 1/4" (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu
* Diversity reception: True Diversity
* Frequency: 8 frequency banks, each with up to 12 factory-preset channels
* Sensitivity less than 3 micro volts at 52 dB(A)rms S/N
* Synchronization: 2.4 GHz, Low Power OQPSK (only active during synchronization)
* Adjustment range, transmitter: 0 to -30 dB, adjustable in 10 dB steps
* Audio adjustment range: 40 dB, adjustable in 5-dB steps
* Line / Mic level: 20 dB, switchable
* Temperature Range: operation: 0C to +40C, storage: 20C to +70C
* Receiver Principle: double superheterodyne
