Focusrite - RED16 LINE

SKU: 741103 Model: RED16 LINE Serial: X563128001549
Quantity Available: 1 Condition: Used Excellent Condition

Focusrite - RED16 LINE
Focusrite - RED16 LINE 2
Focusrite - RED16 LINE 3
Focusrite - RED16 LINE 4
Focusrite - RED16 LINE 5
Focusrite - RED16 LINE 6
Focusrite - RED16 LINE 7
Focusrite - RED16 LINE 8

Sale Price: $5499

Original Price: $5499

Buy From Store

Notify Me

 Customer responsible for any shipping charges.

 This product may not come in original packaging.


Description

Red 16Line is a 64-in/64-out Pro Tools | HD and dual Thunderbolt 3 audio interface with ultra-low latency A-D/D-A conversion, Red Evolution mic preamps, up to 121dB dynamic range, ultra-low round trip latency, and expansion over Ethernet for networked audio. Since Red 16Line provides both DigiLink connectors and Thunderbolt connections, it's now easier than ever to switch from Pro Tools | HD to a second DAW, without the need to reconfigure option cards in the interface. Simply change the host mode either in the remote control software, or on the device front panel and change DAWs in seconds.

High-performance audio converters with over 118dB dynamic range A/D and 121dB dynamic range D/A (A-weighted) have been expertly selected and calibrated to provide the best balance of sound quality, dynamic range and conversion latency in Focusrite's best-quality audio interface. Red's ultra-low round trip latency completely transforms your workflow. If you're used to having to build two different mixes one using input monitoring to overdub, the other using the DAW for playback the good news is that now, one is enough. Build your mix on the DAW and use it whether you're overdubbing (monitoring the input you're recording with the Focusrite Control software mixer) or playing back, with all your plug-ins in place, all the time.

Red 16Line features 16 line inputs on D-sub, coupled with 16 line outputs and two main monitor outputs. The two digitally-controlled Red Evolution mic preamps provide up to 63dB of ultra-clean gain along with stereo linking, individual phantom power, high-pass filter, phase reverse and Air mode: the name Focusrite give to the sonic signature of the classic transformer ISA preamp. With a dual-port Dante card, you will be able to expand your studio over Ethernet for more channels at higher sample rates, anywhere in your network, at lower latency and lower cost.

Features
* Connect to Pro Tools | HD, Thunderbolt computers and Dante simultaneously without option cards
* High-performance audio conversion with over 118dB dynamic range A/D and 121dB dynamic range D/A (A-weighted)
* Ultra-low round trip latency to track through plug-ins and record virtual instruments in real time

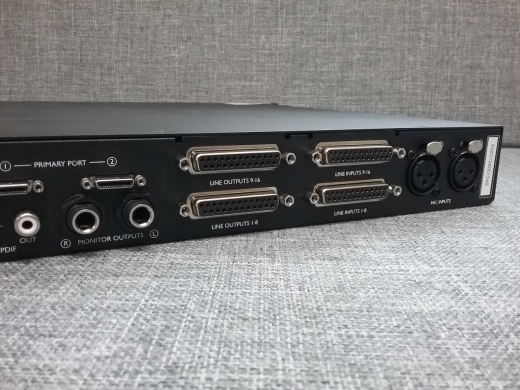

* 16 line inputs on D-sub, coupled with 16 line outputs and two main monitor outputs
* Two digitally-controlled Red Evolution mic preamps with up to 63dB of ultra-clean gain, stereo linking, individual phantom power, high-pass filter and phase reverse
* Air mode on the preamps, giving recordings the clarity of a transformer-based ISA
* Two Thunderbolt 3 ports as standard to connect additional Thunderbolt products
* Dual-port Dante card for more channels at higher sample rates

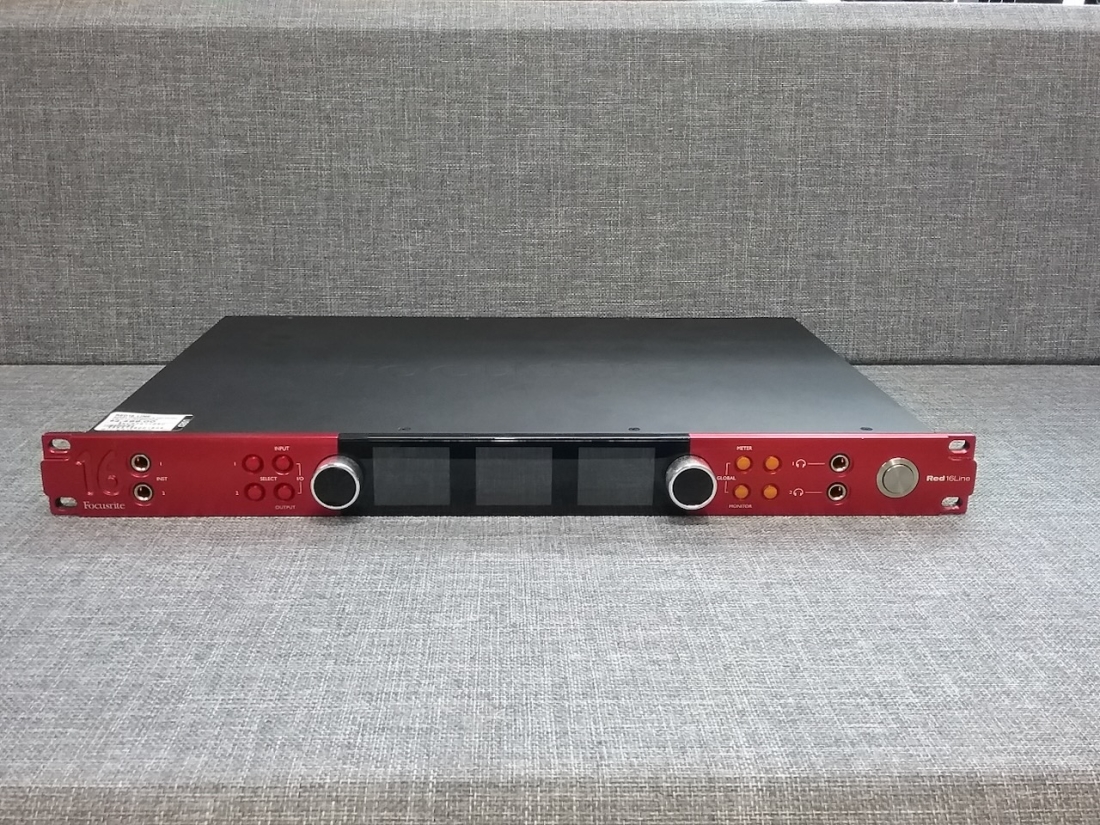

* Three LCD displays for highly accurate level metering
* Focusrite Control software mixer for setting up monitoring and routing configurations, with remote control of preamps
* Two discrete high-fidelity headphone outputs

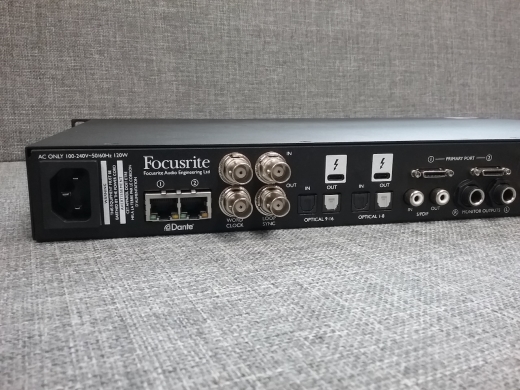

* Connect multiple digital sources using word clock I/O and loop-sync I/O
* Two instrument inputs on the front panel
* AAX/AU/VST-compatible Red 2 and Red 3 EQ and compression plug-ins

Included Software
* Red 16Line
* RedNet PCIe drivers (included with RedNet Control download)
* Audinate Dante™ Controller (installed with RedNet Control)
* Red 2 & 3 Plugin Suite
* Softube Time & Tone Bundle

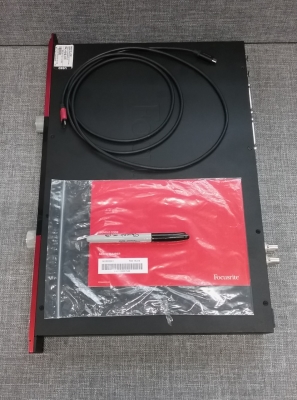

In the Box
* Red 16Line
* Power supply
* Thunderbolt 3 cable

Specifications
Recording / Playback Channels: 64x64
Number of Mic Inputs: 2
Number of Line Inputs: 16
Number of Instrument Inputs: 2
Number of Line Outputs: 18
Headphone Outs: 2
Phantom Power: Yes
Number of S/PDIF Connectors: 1
Number of ADAT Connectors: 2
AES/EBU Connectors: 0
Number of MADI Connectors: 0
Ethernet: 2
Other Connectors: HDX Port
MIDI Connectors: No
Word Clock: 1xIn, 1xOut
Max. Sample rate: 192 kHz
Max. Resolution in Bit: 24 bit
Bus-Powered: No
Windows Thunderbolt driver: Yes
Thunderbolt Version: 3
