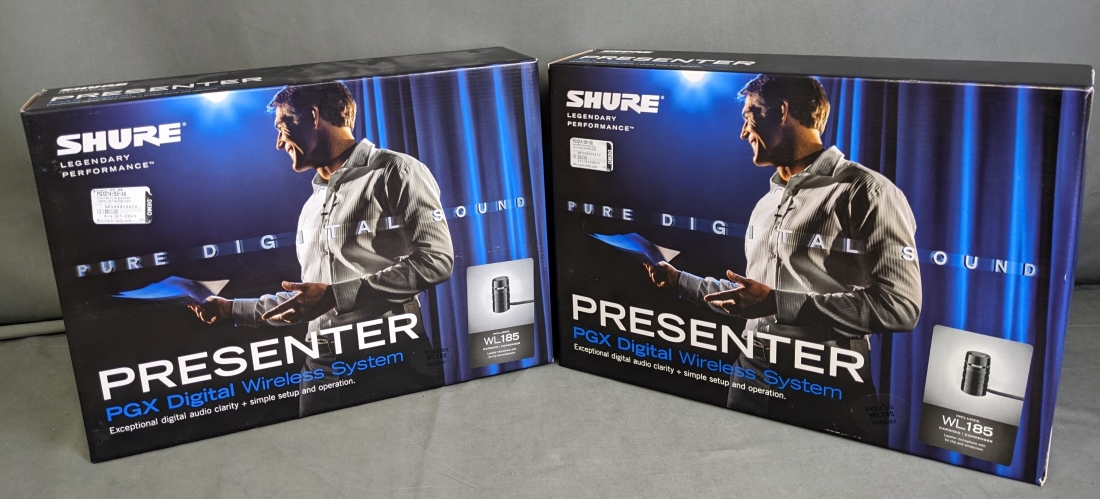

Shure - PGXD14/85-X8

Description

The PGX Digital Vocal Wireless System from Shure adds the clarity of 24-bit digital audio to the legacy of trusted Shure microphone options for wireless performance. This system includes the WL185 cardioid lavalier microphone for general purpose sound reinforcement applications requiring good rejection of ambient noise. The included tie clip can be rotated in 90 degree intervals for placement flexibility.

Included:
* PGXD4 wireless receiver
* PGXD1 bodypack transmitter
* WL185 lavalier microphone
* Tie clip

Features:

PGXD1 Bodypack transmitter
* Rugged, compact bodypack with belt clip
* 20Hz to 20kHz frequency range captures every nuance of your tone
* Power, mute, and battery status LED
* Up to 10 hours of continuous use from 2 AA batteries
* 200' (60m) operating range
* 26dB of continuously adjustable gain to match variable input levels

PGXD4 Wireless Receiver
* 24-bit / 48kHz digital technology for incredibly accurate sound
* Automatic frequency selection locates a clear channel instantly
* One-touch sync automatically syncs the transmitter and receiver
* True digital diversity delivers rock-solid wireless signal reliability
* Up to 5 systems can be used at once
* 1/4" and XLR audio outputs


Specifications:

PGXD1 transmitter
Audio input level: +10 dBV maximum, at minimum gain setting -16 dBV maximum, at maximum gain
Gain adjustment range: 26dB
Input impedance: 1M
RF Output Level: 10 mW maximum (dependent on applicable country regulations)
Dimensions (HxWxD): 108mm x 64mm x 19mm (4.25" x 2.50" x 0.75")
Weight: 128g (4.5oz.) without batteries
Housing: Molded polycarbonate case
Battery Life: Up to 10 hours

PGXD4 receiver
Dimensions (HxWxD): 40mm x 181mm x 104mm (1.6" x 7.125" x 4.1")
Weight: 289g (10.2oz.)
Housing: ABS
Audio Output Level (ref. 38kHz deviation, 1kHz tone): XLR connector (into 3000 load): -2.5dBV 1/4" connector (into 10000 load): +10 dBV
Impedance:
XLR: 50Ω
1/4": 50Ω
Sensitivity: -102 dBm @ 10-5 BER
Power Requirements: 12-18 Vdc at 150 mA, supplied by external power supply
