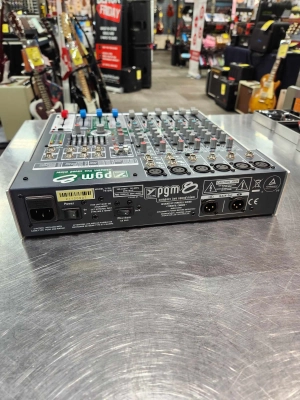

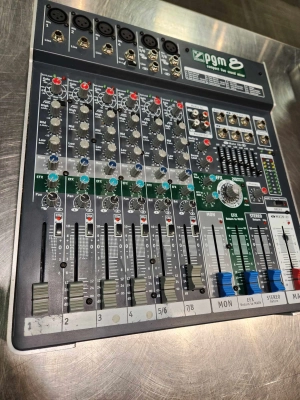

Yorkville - PGM8

Description

The Yorkville PGM8 delivers all of the essential features needed in a professional mixer in a convenient, ultra-compact package. High quality 60mm faders throughout, effective fully featured input channel design, 24-bit digital effects, and break switch make the PGM8 the perfect mixer for live music applications and for small installs.

Features:
* Four Mono Input Channels with XLR & -inch TRS inputs
* Channel 4 Mono Input has a Hi-Z input switch
* Two Additional stereo line input channels (5/6 and 7/8)
* Additional XLR mono input per stereo channel for maximum 6 Mic inputs
* Input gain level control with Non-defeatable soft multi-slope compressor on every input
* 3-band EQ, High Pass Filter, Monitor send , Effect Send, Clip LED, Mute Switch and Pan control per Channel
* 60mm Faders Throughout
* Global 48 volt Phantom Power
* 7-band stereo graphic EQ on Main Outs
* Stereo RCA Record Outputs with Level Control
* BREAK Switch (mutes all input channels)
* Stereo RCA Media Input Jacks with Rotary Level Control (returns pre equalizer, post BREAK switch).
* Monitor TRS Output
* Main stereo TRS phone and XLR outputs
* Sixteen 24bit digital audio effects
* Effects TRS output jack
* Effects defeat footswitch jack
* Effects return to Main and Monitor
* Stereo Return TRS jacks with fader
* Headphone Level Control
* Stereo Headphone Output Jack (Signal strong enough to drive 8-ohm speakers)
* Dual 10-segment LED Output Meter
* IEC removable line cord receptacle (No Adaptors)
* Universal Power Supply from 90VAC to 264VAC at either 50Hz or 60Hz.

Specifications
* Number of Channels - 8
* Mono Channel EQ - 3-band
* Pan/Balance Controls - 4/2
* Channel Overload Protection - Yes
* Inputs - XLR (bal)6, 1/4" 6. RCA 1 stereo pair
* Phantom Power - 48 volt + LED indicator
* VU Meters - 2 x 10 Segment LEDs
* Headphone Monitor Features - yes
* Internal Effects - 24 bit stereo 16 effects
* Effects Sends - 2 (1 internal, 1 external)
* Effects Returns - Main and Monitor
* Reverb / Effects Footswitch - yes
* Record Outputs - 1 stereo pair
* Signal to Noise Ratio (dB) - Greater Than -100dB
* Frequency Response (all EQ Flat,+/-2dB)- 20Hz-20KHz
* THD (Main out w/ -10dB input)- Less Than 0.05%
* Typical crosstalk -1 kHz (dB) - Greater Than -60dB
* CMRR @ 60Hz (min/typ) - 55dB/65dB
* Power Consumption (typ/max) - 26VA (typical)
* Chassis Construction - Steel
* Dimensions (DWH, inches)- 14.2 x 12.8 x 2.8
* Dimensions (DWH, cm) - 36 x 32.5 x 7
* Weight (lbs/kg) - 8.5/3.8
