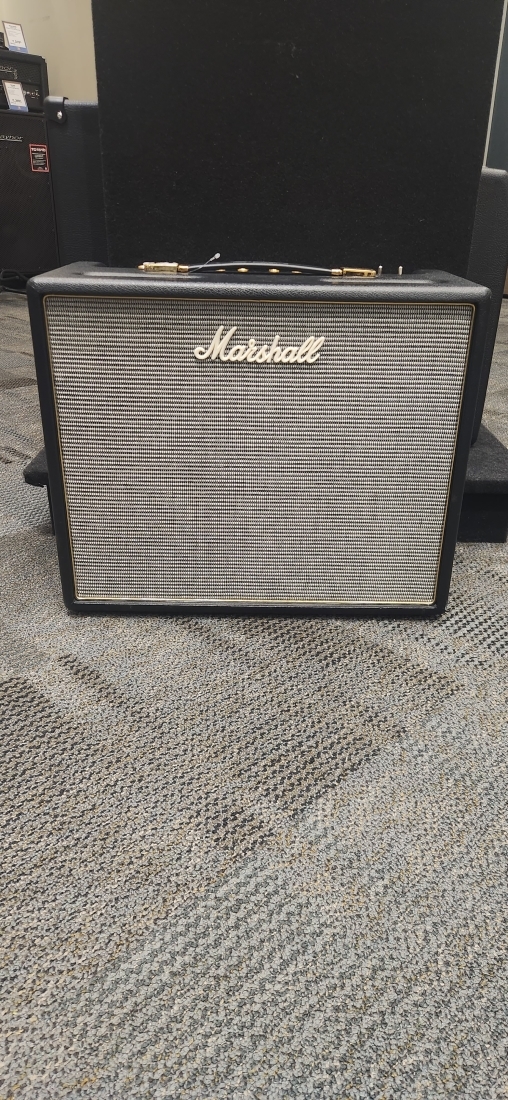

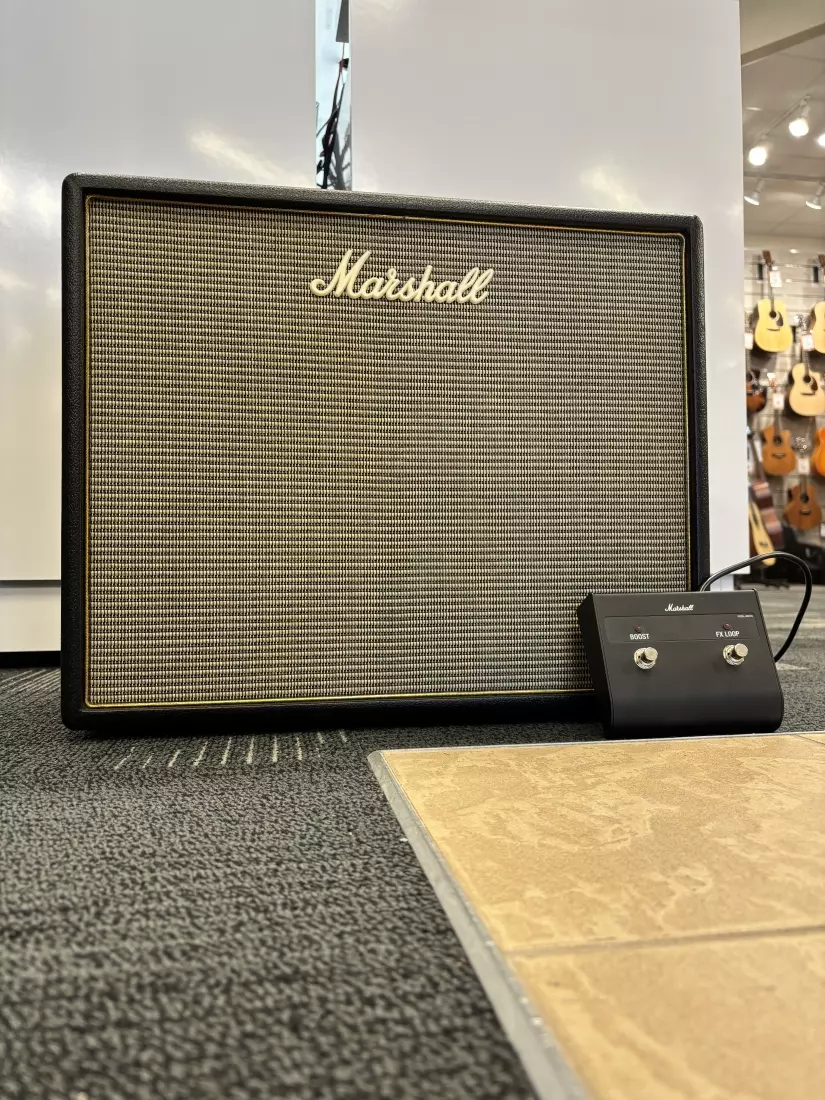

Marshall - ORI20C

Description

This 20w combo is designed for those that like expression through innovation. Using a Celestion V type speaker the Origin20C provides a classic all-valve Marshall tone. A 2-way footswitch allows you to control the gain boost and turn the FX loop on and off. With classic styling and modern features this amp generates rich, harmonic tones so that you can craft a sound to suit your personality.

What is PowerstemTM?

PowerstemTM works by reducing the voltage rails around the power amplifier rather than using Marshall's traditional pentode/triode reduction methods. This offers power reductions without changing the sonic character and so provides optimum tone and performance regardless of the volume level required by guitarists.

Key Features

ADD A LITTLE BOOST
Using the footswitchable gain boost feature you can add that extra level of gain to generate a more overdriven tone.

YOU HAVE THE POWER
Marshall's new power reducing technology, PowerstemTM, allows you to have high, medium or low power modes to suit your environment, from playing small venues to playing in your bedroom.

TILT YOUR SOUND
It may only have one channel but don't underestimate it. By using the tilt control you can vary your sound from normal to high treble.

CONTROL YOUR TONE
Using the presence control you can increase the high frequency and increasing the master volume can give you that classic overdrive sound

Specifications

GENERAL
Model: Origin20C
Technology: Valve
Channels: 1

ELECTRONICS
Output wattage: 20w
Outputs: Speaker outputs: 3 x 1/4" jack sockets (16Ω load / 8Ω load), DI out (1/4" jack)
Inputs: 1 x 1/4" jack instrument input, footswitch
Controls: Gain, boost, tilt, bass, middle, treble, master, presence, power scaling
Effects: None
Effects loop: Yes, Send/Return

SPEAKERS
Speaker configuration: 1x10"
Speaker model: Celestion V type (16Ω, 50W)
Unit impedance: 16Ω

VALVES
Pre amp valves: 3 x ECC83
Power amp valves: 2 x EL34

ACCESSORIES
Footswitch: PEDL-90016 included
Cable: Detachable power cable included

DIMENSIONS
Weight: 13.9 kg (30.6 lbs)
Width: 520mm (20.47")
Height: 420mm (16.54")
Depth: 240mm (9.45")
