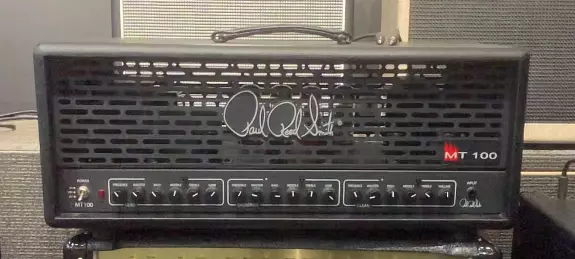

PRS MT100 Head

Description

Three Channel Command

The result of many years of R&D and road-testing, the MT 100 is a professional amp for serious musicians. Built on a robust chassis, the MT 100 features custom transformers and three independent channels with identical controls but truly unique voices.

Each of the MT 100's three channels is built from its own unique circuit with dedicated preamp tubes to ensure the voicing of each channel is exactly as intended. The Clean channel (like the MT 15) stays pristine and chimey - try it with split or single coils to hear it sing. The Gain channel (also like the MT
15) gets lush heavy tones with massive bass response that is never muddy.

The added Overdrive channel (modeled after one of Tremonti's favorite personal amps) brings an incredibly flexible gain structure and musical midrange response to this already versatile amp platform. Select your channel on the amp face or via the included footswitch - both feature matching channel lights so you'll never lose your place.

All three channels share the same preamp tube type (12AX7s) for ease of servicing. At a powerful 100 watts, the value of the MT 100 well exceeds its price tag. It is a straightforward, powerful amp full of aggression and articulation, and the onboard effects loop means your pedals are welcome to join the party.

Please note: Mind your master... volume that is. On the Overdrive and especially on the Lead channel, keep the Master down to start. On the Lead Channel, keep the Master below 10 o'clock to avoid dangerous volumes!

Specifications

General
Available Configurations: Head
Channels: (3) Clean, Overdrive, & Lead

Electronics
Wattage: 100

Tubes
Power Tubes: (4) 6L6GC
Preamp Tubes: (8) 12AX7

Front Panel Controls
Lead Channel: Presence, Master, Treble, Middle, Bass, Volume
Overdrive Channel: Presence, Master, Treble, Middle, Bass, Gain
Clean Channel: Presence, Master, Treble, Middle, Bass, Gain

Back Panel Features
Inlet: Fused Power Inlet (IEC)
H.T.: (B+) Fuse Screwdriver Accessible
Effects: Loop Series, Tube Driven
Extension Speaker Jacks: 3
Output Jack Configuration/Ohm Switching :(2) 8 ohm (parallel), (1) 16 ohm, phone
Bias: Adjustable with Monitoring
Footswitch: Jack 7-pin DIN

Hardware
Covering Black Tolex

Measurements
Amp Width: 26"
Amp Depth: 10.85"
Amp Height: 11"
Amp Weight: 43.2 lbs

INCLUDED ACCESSORIES
3-Button Footswitch (Channel Selection)
V1: Input
V2: Clean Channel
V3 & 4: Overdrive Channel
V5 & 6: Lead Channel
V7: Effects Loop
V8: Phase Inverter
