BOSS - SD-1W

Description

Waza Craft: The Art of Superior Tone
Since the beginning, the engineers at BOSS have been committed to achieving the finest guitar tones using any technology necessary, from old-school analog circuits to high-tech DSP. Continuing this enthusiastic spirit, we are pleased to introduce the new Waza Craft series. In Japan, Waza is the term for art and technique, and these special edition pedals proudly carry the Waza symbol to represent the pinnacle of BOSS design and craftsmanship. With final sound approval carried out by BOSS in Japan, the Waza Craft series brings you exceptional tone and touch response through carefully-selected analog components, refined circuitry, and meticulous attention to detail.

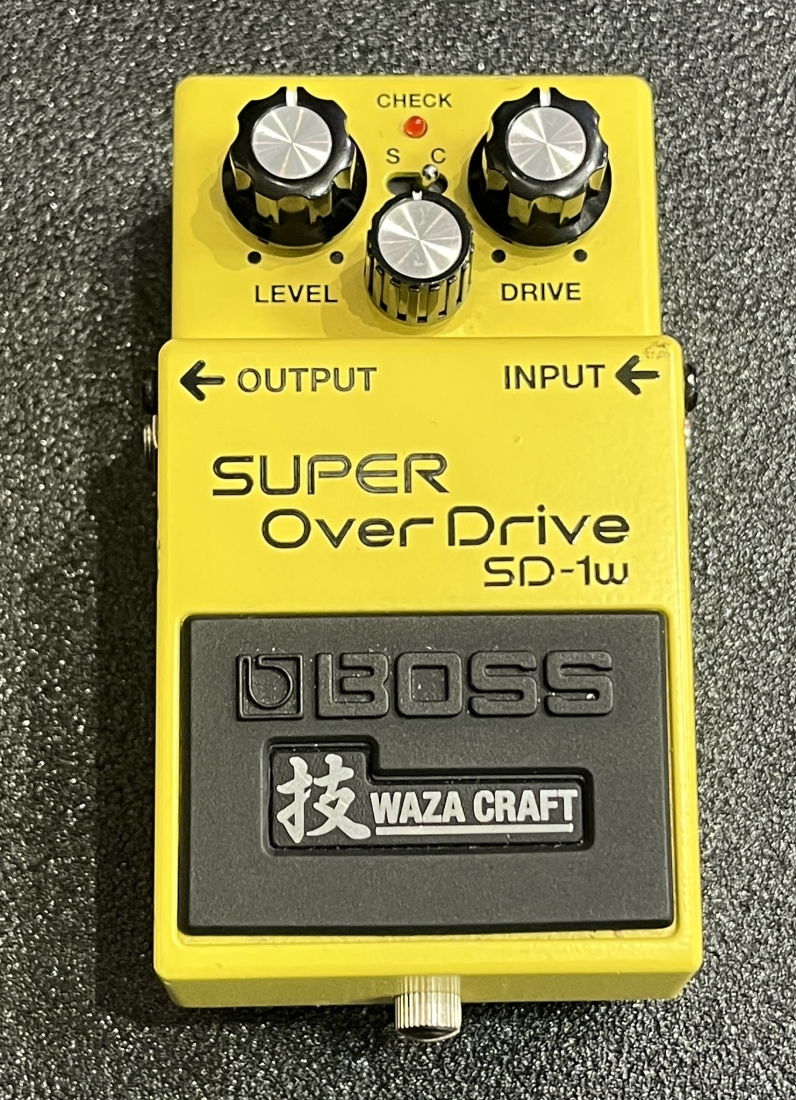

Passionately designed by the master engineers at BOSS in Japan, the Waza Craft SD-1W Super Overdrive delivers a premium stomp experience that fans of customized pedal tone will love. Crafted with an ear for highly refined sound, the SD-1W hot rods the famous BOSS overdrive with all-discrete analog circuitry. Standard mode captures the classic SD-1 sound while Custom mode offers new tonal range and gain.

FEATURES

* Special edition Waza Craft pedal delivers the ultimate BOSS tone experience
* Premium sound based on the legendary SD-1 Super Overdrive
* Newly revised, all-analog discrete amplifier circuit
* Standard and Custom sound modes
* Highly responsive to picking dynamics and volume changes
* BOSS five-year warranty

SPECIFICATIONS

* Nominal Input Level: -20 dBu
* Input Impedance: 1 M ohm
* Nominal Output Level: -20 dBu
* Output Impedance: 1 k ohm
* Recommended Load Impedance: 10 k ohms or greater

Controls
* Pedal switch
* Mode switch
* LEVEL knob
* TONE knob
* DRIVE knob
* Indicator

CHECK indicator
* (Serves also as battery check indicator)

Connectors
* INPUT jack
* OUTPUT jack
* DC IN jack

Power Supply
* Alkaline battery (9 V, 6LR61) or Carbon-zinc battery (9 V, 6F22)
* AC adaptor (sold separately)

Current Draw
* 15 mA

Accessories
* Owner's Manual
* Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTE," and "Information")
* Carbon-zinc battery (9 V, 6F22)

Option (sold separately)
* AC adaptor (PSA series)

DIMENSIONS

* Width: 73 mm, 2-7/8 inches
* Depth: 129 mm, 5-1/8 inches
* Height: 59 mm, 2-6/16 inches
* Weight: 430 g, 0 lbs. 16 oz.
