AKG - MULTI-PATTERN CONDENSER MICROPHONE - C314

Description

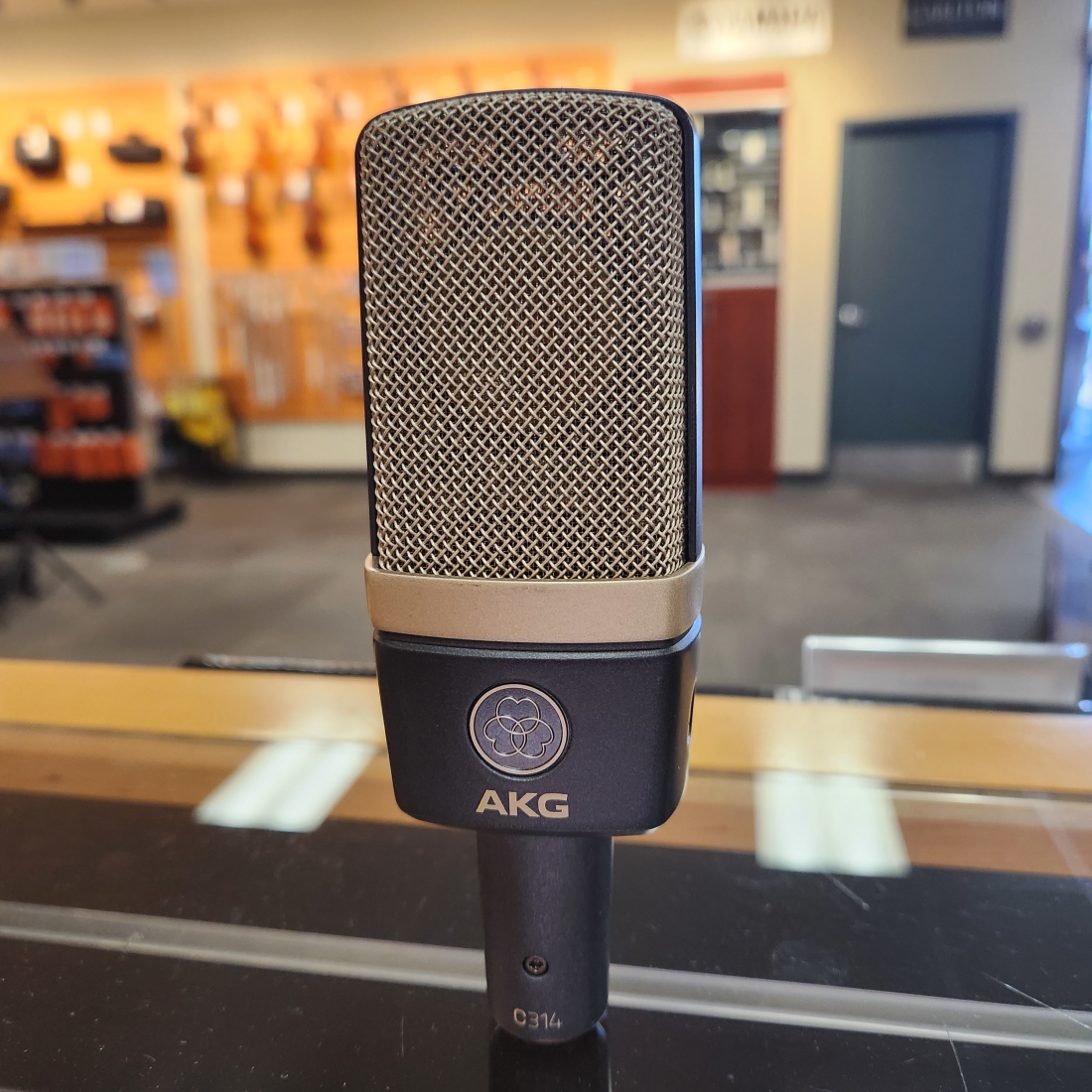

The AKG C 314 is a professional multi-pattern condenser microphone that captures every detail with the precision your creativity deserves. Whether you're recording in a large concert hall or a one-room studio, you want to capture the emotion and moment, not just the sound. With a full frequency range of 20Hz 20kHz and the lowest self-noise in its class, the C314 brings out the best in every nuance. Built on the rich heritage of the C414 XLS capsule, its dual computer-matched diaphragms guarantee the highest polar pattern accuracy, while the integrated suspension dramatically reduces noise for pure, faithful recordings.

Features:

* Four selectable polar patterns are perfect for every application: vocals, guitars, overheads, piano and more

* Lowest self noise - for the highest resolution in high-dynamic applications, such as miking classic instruments

* Overload detection LED indicates overly high sound pressure levels - know exactly when to use the pad

* Computer-matched diaphragms guarantee the highest polar pattern accuracy

* Integrated capsule suspension reduces mechanical noise and resonances

* 20 dB attenuation pad and bass-cut filter - for close-up recording and reducing the proximity effect

* All-Metal Grille and Rugged Housing - features a transparent double-mesh all-metal grille, which protects the magic inside and ensures an exceptionally high level of RF immunity

Technical Specifications:

General
Audio Frequency bandwidth: 20 to 20000 Hz
Sensitivity: 20 mV/Pa
Equivalent Noise Level: 8 dB-A
Signal to Noise: 86 dB-A
Preattenuation Pad: -20 dB
Bass Cut Filter: 100 Hz, 12dB/octave Hz
Electrical Impedance: 200 Ohms
Recommended Load Impedance: 1000 Ohms

Polar Patterns: Cardioid, Super Cardioid, Omnidirectional and Figure of eight
Powering Interface: 44 to 52 V, 3 mA
Audio Output: Balanced XLR, Male, 3-pin

Dimensions (L x W x H): 160 mm x 55 mm x 43 mm
Net Weight: mic only 300 g
