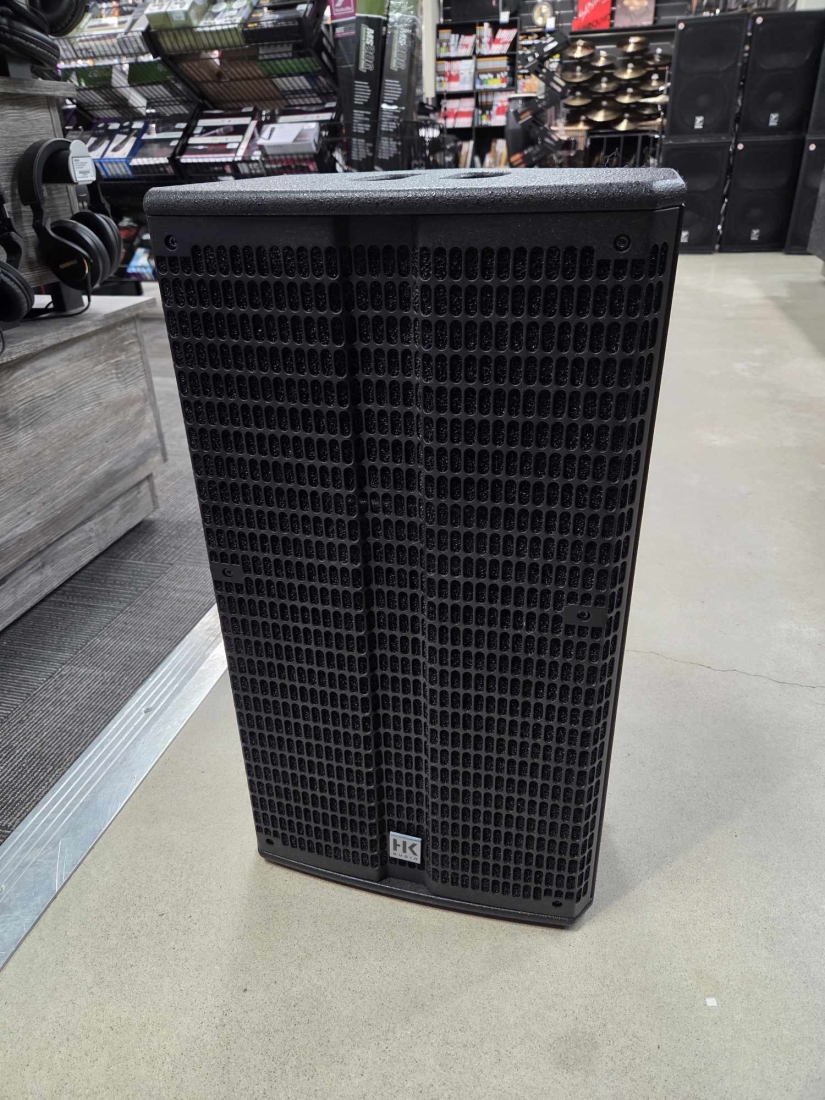

HK Audio - L5-112XA
SKU: 696320
Model: L5-112XA
Serial: A01-2147-20466428
Quantity Available: 1
Condition: New
Sale Price: $1649
Original Price: $1649
Buy From Store
Ship from Store
Pick Up in Store
Customer responsible for any shipping charges.
Description
L5 112 XA - THE NEW PERFORMANCE CLASS
The 12″/1″ model is housed in a multipurpose enclosure tuned to deliver the highest sound pressure levels (136 dB SPL peak). A switchable filter configures it for use as a top unit (adding long range capability) in systems with Linear SUB 2000/ 2000 A units. The L5 112 XA also makes an excellent monitor with a plenty of gain before feedback. Its rotatable 60 x 40 CD horn provides the right coverage pattern for each scenario.
Details
* Application: Mid/High Unit, Monitor
* 1000 Watt Class-D Amplifier (650 W + 350 W, biamped)
* 12″ Speaker with 2,5″ voice coil
* 1″ Driver with 1,75″ voice coil
* 136 dB Max SPL Peak @ 10% THD (halfspace)
* CD Horn (60 x 40) , rotatable
* Rugged hybrid (birch multiplex /MDF) housing
* 2 separate Inputs
* EQ switch (Top / Monitor)
* Max SPL: 128 dB half space (@ 10% THD)
* Frequency response +/- 3dB: 100 Hz - 18 kHz
* Power Rating: 1000 W
* Amplifier: Class D - Biamped
* Active protection circuits: Undervoltage-Protection, Thermoprotection, Short-Circuit Protection, Overcurrent-Protection, Subsonic 24dB/oct., Peak limiter
* Low/Mid Driver: 1x 12"
* HF Driver: 1"
* Horn characteristics: 60 x 40 CD horn, rotatable
* Cut-off Frequency active: 1,65 kHz, 24 dB/oct.
* Connections: 2x XLR1/4"-Combo In, 2x XLR-Thru, 1x XLR-Mix Out
* Input Sensitivity: +4dBu @ Gain Centerclick / L5 System Level
* Sensitivity switch: Line/Mic Input A
* Equalizer: EQ switch Flat/Monitor
* Angles: up 33
* Pole mount: DuoTilt 3/7
* Rigging points: 3x M8
* Handles: 2, integrated
* Enclosure: Hybrid (birch multiplex / MDF)
* Grille: 2 mm metal grille backed with black acoustic foam
* Finish: Acrylic enamel, black
* Optional accessories: Protective cover
* Dimensions (WxHxD): 37 x 67 x 30 cm
* Weight: 21.1 kg / 46.5 lbs
