Warm Audio - EQPWA

Description

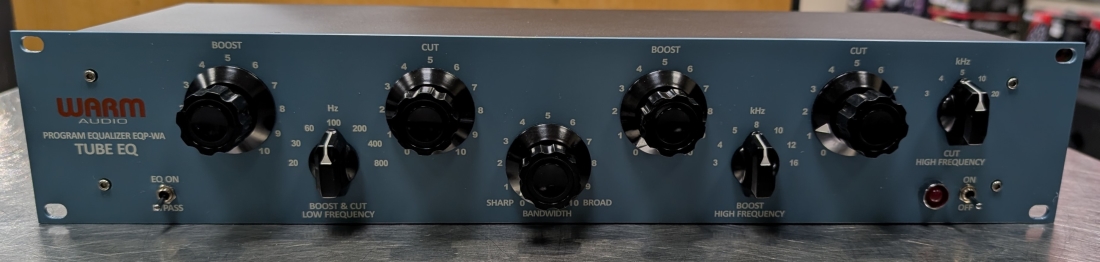

The EQP-WA is a re-creation of the most renown tube Equalizer in studio history, the "Pultec EQP-1A". Not only does the look and feel of the EQP-WA match the classic Pultec units, but the sonic quality has been carefully considered by using top-end components such as CineMag transformers and premium tubes. This fully discrete Tube EQ can pull euphoric sonics from any track and bring a brilliance and luster to mixes thats nearly impossible to achieve inside-the-box.

Specifications

* Utilizes premium grade input and output
* Tube Equalizer based on the classic Pultec EQP-1A
* Premium high voltage 12AX7 and 12AU7 tubes
* CineMag inductor EQ section
* EQ section is bypassable - signal still passes through tubes and transformers for warming effect
* No insertion loss - loss restored by tube amplifier
* XLR and TRS transformer balanced inputs
* XLR and TRS transformer balanced outputs
* Flat frequency response from 20 Hz - 50 kHz
* Boost and Cut controls can be used simultaneously for phase effect
* Low frequency boost - 20, 30, 60, 100, 200, 400, 800 Hz - 12 db
* Low frequency cut - 20, 30, 60, 100, 200, 400, 800 Hz - 18 db
* High frequency boost - 3, 4, 5, 8, 10, 12, 16 kHz - 18 db
* High frequency cut - 3, 4, 5, 10, 20 kHz - 14 db
* 5 added frequency points for greater flexibility
* Switchable 115/230 volt IEC power inlet
* Dimensions: 19 x 3.5 x 6 inches - 2RU rack mountable
