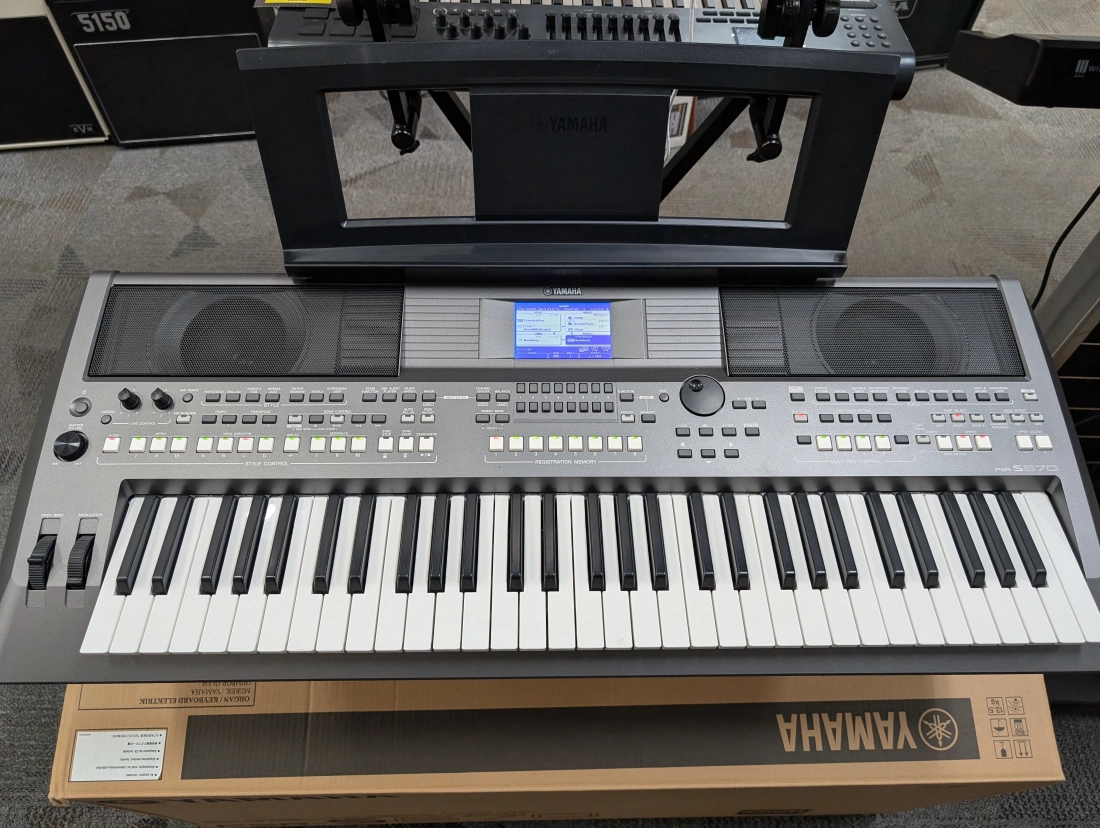

Yamaha PSRS670 Portable Arranger Keyboard

Description

The PSR-S670 features two assignable live controllers, a modulation wheel and two assignable footswitch inputs, ensuring that you have total control over voices, styles, effects and other functions during live performance.

Key Features:

* 416 Voices (including MegaVoices), 34 Drum/SFX kits and 480 XG Voices
* Authentic sampled sounds including superb acoustic and electric pianos, and electronic sounds perfect for today's dance music
* Intelligent Arpeggio function with instant access to a library of arpeggiated synth phrases and patterns
* 230 Styles including a DJ category.
* Two live controllers for instant control over effects and other functions, including filter, arpeggio and track mute.
* Expansion Memory - add new voices, drum kits and styles for extra versatility and enhanced performance
* Authentic voices and styles from around the world

A new concept for performing live

DJ Styles are a new live performance concept featuring a collection of programmed chord progressions. This leaves both hands free to play melody lines, use the live controllers or even trigger additional audio samples with the Multi Pad. With new arpeggio function, PSR-S670 will play the phrase for you when you are holding chord.

Let your music take you to new places

Voice & Style Expansion Packs enable you to customize the PSR-S670 with a wide range of additional content from all over the world. For even more versatility, use Yamaha Expansion Manager version 2.3 (or later) to link the PSR-S670 to your computer*. Yamaha Expansion Manager allows you to create individual expansion data sets containing content from various packs. You can even create your own voices based on your samples.
*(available during 2015)

Great on stage, in the studio or at home

Audio data can be played back with the USB Audio Player or triggered using the Audio Link Multi Pad function, giving you even more creative options. The PSR-S670 also has an AUX IN input to connect your audio player and a dedicated line output that makes it easy to use the PSR-S670 with a PA system for larger venues.

Chord Tracker

Identify the chord sequence from an audio track instantly with the Yamaha Chord Tracker app! The Yamaha Chord Tracker app for iPhone and iPad helps practicing and performance by extracting the chord sequence of an audio song stored on your device.

Specifications:

Dimensions (WxHxD): 1004 x 134 x 410mm
Weight: 8.1 kg

CONTROL INTERFACE
Keyboard Number of Keys: 61
Touch Response: Hard1, Hard2, Medium, Soft1, Soft2
Other Controllers: Pitch Bend, Modulation, Control Knobs: 2 (assignable)
Display Type: QVGA 4.3 inch LCD
Display Language: English, German, French, Spanish, Italian, Japanese

VOICES
Tone Generating Technology: AWM Stereo Sampling
Number of Polyphony (Max.): 128
Preset:
Number of Voices: 416 Voice + 34 Drum/SFX Kits + 480 XG Voices
Featured Voices: 11 Mega Voices, 19 Sweet! Voices, 28 Cool! Voices, 19 Live! Voices
Compatibility: XG, GS(for Song playback), GM, GM2
Expansion Voice: Yes (approx. 32 MB max.)

EFFECTS
Reverb: 44 Presets + 3 User
Chorus: 71 Presets + 3 User
DSP: 283 Presets + 10 User
Master Compressor: 5 Presets + 5 User
Master EQ: 5 Presets + 2 User
Arpeggio: Yes

ACCOMPANIMENT STYLES
Number of Preset Styles: 230, including 10 DJ Styles
Music Finder: 1,200 Records
One Touch Setting (OTS): 4 for each Style
Expandability: Expansion Style: Yes
Compatibility: Style File Format, Style File Format GE

SONGS
Number of Preset Songs: 4 Sample Songs
Recording: Number of Songs: Unlimited (depends on the drive capacity)
Number of Tracks: 16
Data Capacity: approx. 300 KB/Song

FUNCTIONS
Metronome Tempo Range: 5 - 500, Tap Tempo
Transpose: -12 0 +12
Tuning: 414.8-440-466.8 Hz
Voices: Harmony/Echo, Panel Sustain, Mono/Poly
Score Display Function: Yes
Lyrics Display Function: Yes

STORAGE AND CONNECTIVITY
Storage: Internal Memory: approx. 2 MB
External Drives: USB Flash Memory (via USB to DEVICE)
Connectivity: Headphones: Yes
FOOT PEDAL1 (SUSTAIN), 2 (VOLUME), Function Assignable
AUX IN: Yes
LINE OUT: L/L+R, R
USB TO DEVICE: Yes
USB TO HOST: Yes

AMPLIFIERS and SPEAKERESE
Amplifiers: 15 W x 2
Speakers: 12 cm x 2

POWER SUPPLY
Power Supply: PA-300C
Auto Power Off Function: Yes

ACCESSORIES
Included Accessories: AC Adapter, Music Rest

MULTI PADS
Preset: Number of Multi Pad Banks: 179 banks x 4 Pads
Audio Link: Yes

Owners Manual, Reference Manual and Data List are available from Yamaha here.
