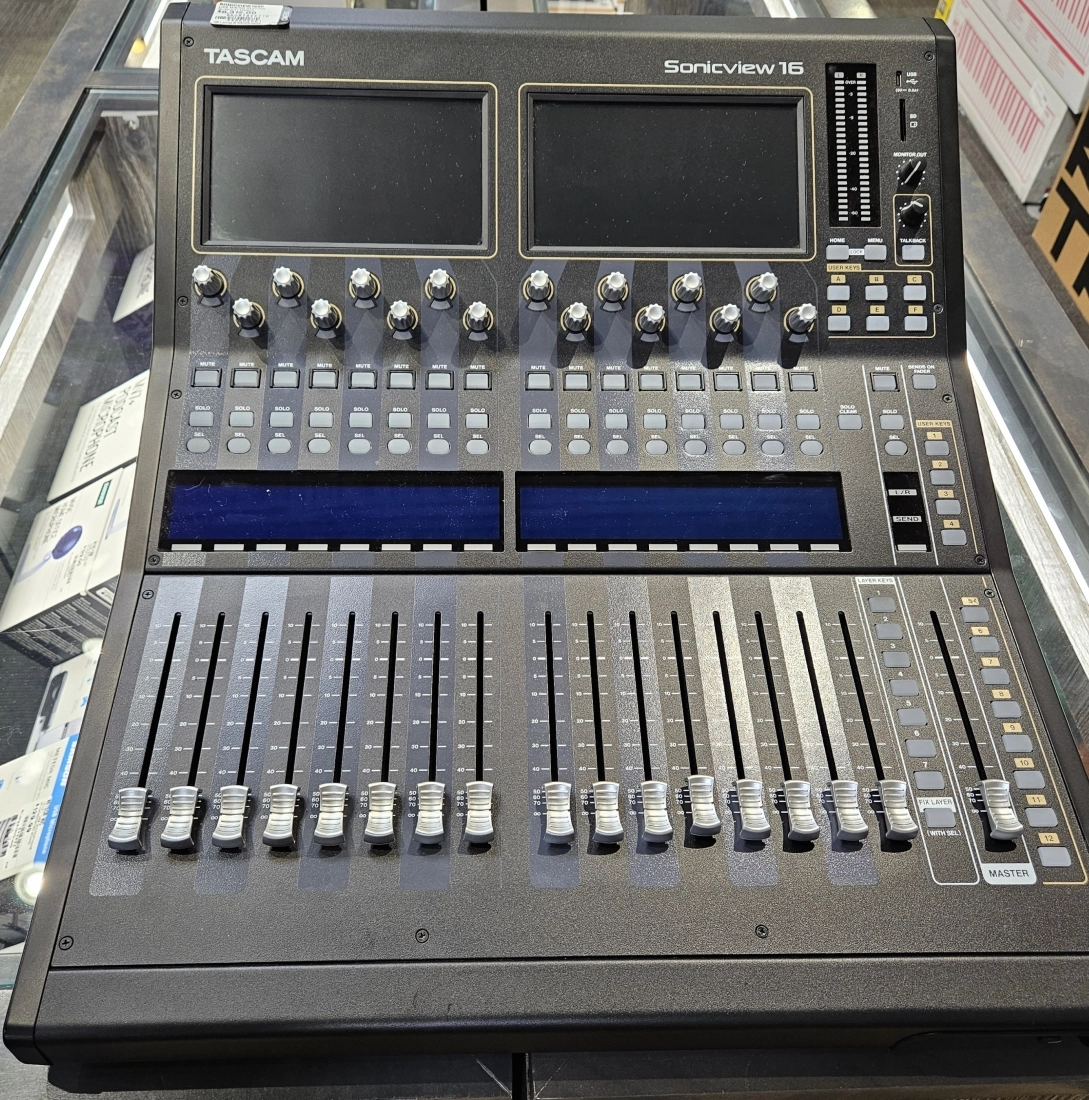

Tascam - SONICVIEW16XP

Description

TASCAM has a long history of high-quality digital mixers, culminating with the legendary DM-4800, a workhorse mixer that set a new standard. With TASCAM Sonicview, TASCAM has created an entirely new line of digital recording and mixing consoles that incorporate the latest technology and make it easy to see and control all of the parameters you want, when you want, with completely customizable touch screens and user-definable buttons, along with motorized faders and intuitive control software.

TASCAM Sonicview recording mixing consoles integrate beautifully with the rest of your system, thanks to built-in Dante networking, a 32-bit/96 kHz multi-channel USB audio interface, built-in multi-track SD recording*, and plenty of I/O. No-compromise audio quality, including 54-bit float-point FPGA mixing, combines with ample signal processing, an expansion slot for additional connectivity, and wireless remote control to make TASCAM Sonicview recording mixers a next-generation choice for touring, installed sound, recording studios, and broadcasting.

Features
* TASCAM VIEW (Visual Interactive Ergonomic Workflow) interface supports intuitive operation with three different view system
* Multiple displays with two 7-inch touch panels
* 44 input channels (or 40 mono input channels and 2 stereo input channels) and 4 FX return
* 22 flexible output buses and main L/R bus with 31-band graphic EQ
* 96 kHz, 54-bit float-point FPGA mixing engine
* Ultra-low latency: 2 x samples (20.8μS) in mixing engine, 0.51 ms analog-to-analog
* 32-bit/96 kHz AD/DA conversion
* TASCAM Class 1 HDIA microphone preamplifiers
* 32-in/32-out, 32-bit/96 kHz USB audio interface
* Built-in 32-track SDXC recorder
* 64-in/64-out built-in Dante interface; supports redundancy and DDM, AES67 and SMPTE ST 2110 interoperability
* 16 mic/line inputs (up to +32 dBu), 16 XLR line outputs with flexible routing
* 4 multi-effects processors
* TASCAM Sonicview Control software for macOS/Windows/iPadOS enables remote control and off-line editing
* 2 TASCAM expansion slots
* 18 assignable user keys, 7 custom fader layers, 8 DCA groups
* 16+1 100mm motorized faders
* 16 encoder knobs with color LED
* 16 LCDs with color LED display channel name, input level, and gain reduction meter
* 2 ch internal recording/playback with SD card or USB flash drive
* 8 TRS line inputs, 2 RCA stereo input pairs, XLR talkback input
* XLR monitor outputs
* 1/4-inch and 1/8-inch headphone outputs
* Word clock In and Out/Thru
* 1000BASE-T gigabit Ethernet
* 8-in/8-out GPIO on DB25
* TRS footswitch jack
* XLR 4-31 lamp connector
* Power switch with guard

Specifications
Processing Capability
Input: 52 [Monaural: 40, Stereo: 2 (Stereo),Fx Return: 4 (Stereo)]
Bus: 32 [AUX/GROUP Switchable MIX bus: 22, MAIN L/R bus: 1 (Stereo), Fx Send bus: 4 (Stereo)]
Built-in Fx: 4

Input Ports
96 kHz: Max 152 ports
48 kHz: Max 248 ports
MIC/LINE: 16
Stereo (RCA): 4 (2xStereo)
Dante: 32 (96 kHz), 64 (48 kHz)
SLOT: 32x2 (96 kHz), 64x2 (48 kHz)
USB Audio: 32
Built-in Player: 2 (1xStereo)
OSC: 1
TALKBACK: 1

Output Ports
96 kHz: Max 148 ports
48 kHz: Max 244 ports
LINE: 16
Dante: 32 (96 kHz), 64 (48 kHz)
SLOT: 32x2 (96 kHz), 64x2 (48 kHz)
USB Audio: 32
MONITOR OUT (Analog): 2 (1xStereo)
Built-in Recorder: 2 (1xStereo)

I/O Ports
Analog Insert I/O: 2 I/O (MIC/LINE Input 7/8)

Digital Signal Processing
Mixer Engine: 96 kHz/54 bit floating point
ADC: 96 kHz, 32 bit
DAC: 96 kHz, 24 bit
Digital I/O sampling rate: 96 kHz, 48 kHz

Mic/Line Inputs (1-16 channels)
Connector: XLR-3-31 equivalent (1:GND,2:HOT,3:COLD)
Max input level: +12dBu (PAD=OFF, TRIM MIN), +32dBu (PAD=ON, TRIM MIN)
Min input level: -62dBu (PAD=OFF, TRIM MAX), -42dBu (PAD=ON, TRIM MAX)
Input impedance: 5.0kΩ or more
Phantom power: +48V available

Line Inputs (9-16 channels)
Connector: Connector: 6.3mm(1/4")TRS phone jack, Balanced (TIP: HOT, RING: COLD, SLEEVE: GND)
Max input level: +12dBu (PAD=OFF, TRIM MIN), +32dBu (PAD=ON, TRIM MIN)
Min input level: -62dBu (PAD=OFF, TRIM MAX), -42dBu (PAD=ON, TRIM MAX)
Input impedance: 5.0kΩ or more

Return (Ring)
Max input level: +18dBu
Nominal Input level: -2dBu
Input impedance: 5.0kΩ or more

Send (Tip)
Max input level: +18dBu
Nominal Input level: -2dBu
Input impedance: 100kΩ or less

Talkback Inputs
Connector: XLR-3-31 equivalent (1: GND,2: HOT,3: COLD)
Max input level: +10dBu
Min input level: -65dBu
Gain range: 0 - 55dB
Input impedance: 5.0kΩ or more
Phantom power: +48V available

Stereo (RCA) Inputs (1-2)
Connector: RCA pin jack
Max input level: +6dBV (1.995Vrms)
Nominal Input level: -10dBV (0.316Vrms)
Head room: 16dB
Input impedance: 10kΩ or more

Monitor Outputs (L,R)
Connector: XLR-3-32 equivalent (1: GND, 2: HOT, 3: COLD)
Max output level: +24dBu
Nominal output level: +4dBu
Output impedance: 100Ω or less

Headphone Output
Connector: 6.3mm(1/4") stereo phone jack and 3.5mm stereo mini phone jack
Max output power: 100mW + 100mW (32Ω load, when connected to only one side)

USB Audio
Connector: Type-B
Input: 32ch USB to Sonicview
Output: 32ch Sonicview to USB
Sampling rate: 48 kHz, 96 kHz
Bit depth: 32 bit

Dante (Primary/Secondary)
Connector: etherCON Cat5e compatible
Number of channels: 64 channels (48 kHz), 32 channels (96 kHz)
Ethernet: 1000BASE-T (IEEE802.3ab)
Cable: CAT5e STP

GPIO
Input circuit: Pull up (5V)
Output circuit: Open corrector
Output impedance: 10Ω
Voltage Resistance: 20V
Max Current: 35mA
Max supply current (+5V): 50mA

Foot Switch
Connector: 6.3mm(1/4")TS phone jack (TIP:SIG, SLEEVE: GND)

General
Main display: 7", Colored touch panel display x2
Resolution: 800x480
Channel display: Monochrome x2
Resolution: 384x68
Fader: 100mm stroke, Motor driven
Weight: 13kg (28.67 lbs)
AC IN: AC100V-240V 50/60Hz
Power consumption: 65W
Operating Temperatures: 0 - 40°C

Includes
- TASCAM Sonicview 16XP with integrated IF-MTR32 recorder card x 1
- Power cord (JAPAN/USA/EUROPE/OCEANIA) x 3
- Owner's Manual with Warranty x 1
- TASCAM ID Registration Guide x 1
