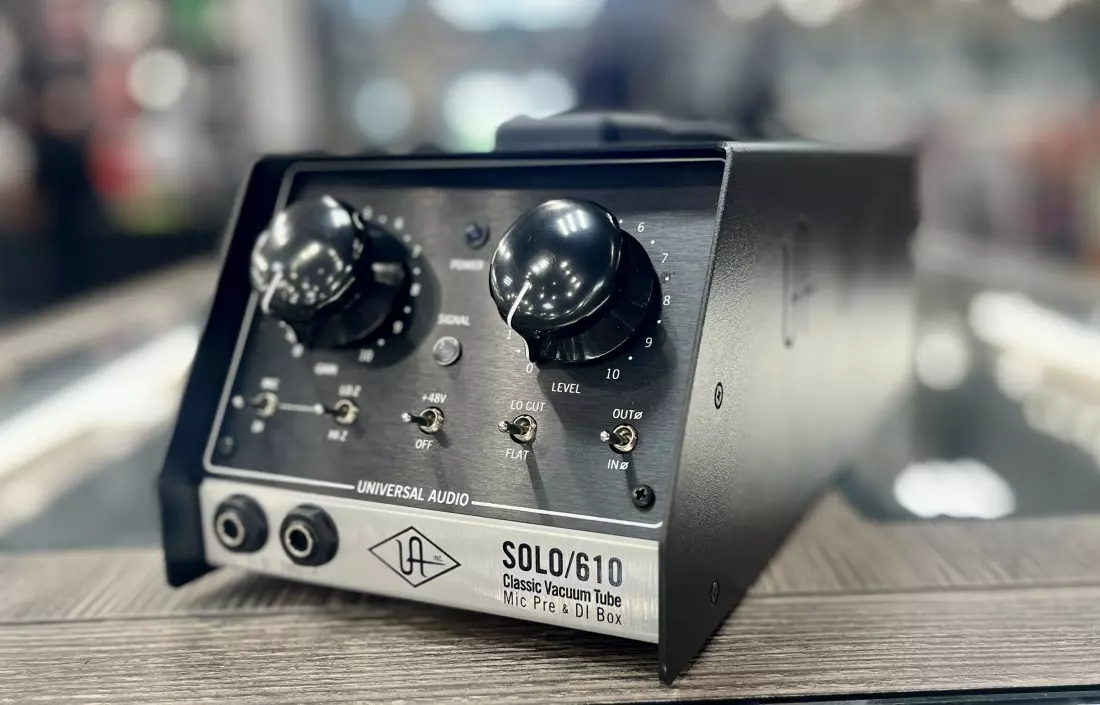

Universal Audio - SOLO 610

Description

*** VERY GOOD CONDITION ***

The SOLO/610 delivers the classic Putnam 610 tube console sound in a portable, highly versatile mic preamp design. It provides the silky, vintage warmth of the original console's mic amp design, and will flatter and enhance any microphone or instrument with its iconic tones.

Thanks to its convenient form factor, the SOLO/610 can be conveniently used in the control room or the recording room, on stage, or on a desktop. Functionally lean but sonically mean, the SOLO/610 maintains the character of the 610 console - at a price every serious project studio can afford.

The SOLO/610 offers Mic and DI inputs, and Gain and Level controls for myriad clean or colored sounds. Unlike its predecessors, the SOLO/610 has continuous Gain control with even greater range, allowing for precise gain structuring. The SOLO/610 has all of the essential features of a professional mic pre, including 48v Phantom Power, Lo-Cut filtering, Phase Reverse, and flexible dual impedance selection for both Mic and DI inputs. The SOLO/610 also includes essential DI features like Thru use in conjunction with an amplifier, plus Ground Lift and a versatile Mic/Line level output switch.

Features:
* Classic Putnam 610 console mic preamplifier and DI
* Legendary all-tube sound, at a project studio price
* Gain, Level, and Impedance selection for maximum tonal variety
* Portable design for studio, desktop or stage
* Rugged construction-steel chassis
* DI features include Thru and Mic/Line level output
* Hand-built in USA; backed by 1-year limited warranty

Specifications:
* Input Impedance: Mic Input - Selectable 450 ohms (Lo-Z) or 1.6 kilohms (Hi-Z)
DI Input - Selectable 2.2 megohms (Lo-Z) or 50 kilohms (Hi-Z)
* Output Load Impedance: 20 Hz to 20 kHz +/- 1 dB
* Maximum Gain: 61 dB
* Tube Complement: (1) 12AX7, (1) 12AT7
* Maximum Mic Input Level: -12 dBu, 1.0% THD+N Ratio
* Maximum Instrument Input Level: +4 dBu, 1.0% THD+N Ratio
* Maximum Gain Mic Input: 55 dB (1.6K ohm input), 60 dB (450 ohm input)
* Mic/Instrument In Frequency Response: 20 Hz to 20 kHz, +/- 0.1 dB
* Maximum Gain Instrument Input: 37 dB
* Dimensions: L: 14" W: 5 3/4" H: 5"
* Weight: 9 lbs.
