Yorkville Sound Coliseum 70-Volt 180-Watt 6-Channel 4-Zone PA Amplifier
Additional Photos:
Ideal for restaurants, small clubs, offices and retail environments where a simple and reliable system capable of servicing multiple paging zones is required. Multiple inputs for microphone or source material, and voice activated paging from either a microphone or telephone matrix means the CA1 can be used in virtually any application.
Features:
Versatile input mixing capabilities make the CA1 the solution for small churches, boardrooms and conference room PA applications. Unlike most installation amplifiers in this class, user selectable phantom power is available on three channels to drive condenser microphones, the type most commonly used on podiums or as a lavaliere (tie clip) microphone.

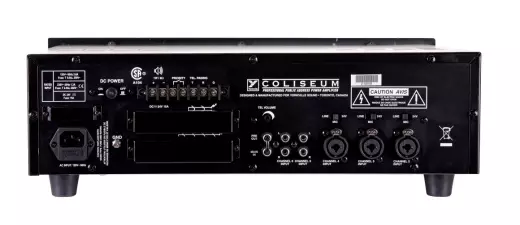

XLR / TRS balanced combi-jack inputs and attenuated RCA unbalanced inputs ensure the CA1 system can interface with any source (CD, Cassette, Satellite Tuner, DVD or video system) your installation may require.
Capable of driving either a 4-ohm speaker load, or four separate 70-volt speaker systems (one 'system' per zone), the CA1 system delivers 180 watts (mono). A pre-amp output is available to feed an auxiliary power amplifier or active subwoofer to enhance the system, or to feed video or audio recording equipment.
Specifications:
• Number of Channels: 6
• Inputs - 1/4 IN / XLR Combi: 3
• Inputs - RCA (unbal): 2
• Phantom Power: Yes
• Headphone Monitor Features: Yes - main Output
• Record Outputs: Yes
• Mixer - Signal to Noise Ratio (dB): Greater than 55dB
• Mixer - Freq Resp (Tone and EQ Flat,2dB): 50 - 15kHz
• Amp A - Power Output @ 4 Ohms: 180 Watts
• Amp A - Power Output -other: 180 Watts 70-volts
• Amp C-Power Output@8 Ohms (0.1 PER THD 1kHz): 0
• Amp C - Power Output @ 4 Ohms: 0
• Amp D-Power Output@8 Ohms (0.1 PER THD 1kHz): 0
• Amp D - Power Output @ 4 Ohms: 0
• THD - 1kHz (dB): Less than 1%
• Cooling: Passive
• Finish: Black
• Chassis Construction: Steel
• Rackmount: Yes
• Other Features: Zone Paging / Telephone interface
• Dimensions (DWH, inches): 12 x 19 x 6
• Dimensions (DWH, cm): 320 x 480 x 150
• Weight (lbs/kg): 24 / 9
