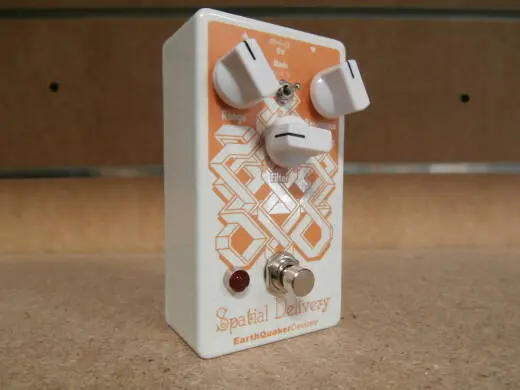

EarthQuaker Devices Spatial Delivery V2 Envelope Filter w/ Sample & Hold
Additional Photos:
Product Videos :
The Spatial Delivery has three modes - Upward Filter Sweep, Downward Filter Sweep, and Sample & Hold.
In Up and Down modes, you'll get super precise touch-sensitive tone sweeps with a variety of filter types. In both modes, the Spatial Delivery's controls for "Range," "Resonance," and "Filter" interact to deliver anything from subtle phaser-like modulation, to whistly resonant peaks. The "Range" control adjusts the sensitivity of the envelope, dialing in the overall touch-responsiveness to pick attack. "Resonance" adjusts the feedback of the filter. Counter-clockwise settings yield a rounded, subdued tone, while clockwise settings increase the body and ring of the filter voice, resulting in a sharp, peaky tone. The "Filter" control crossfades between Low-Pass, Band-Pass, and High-Pass filters, so only the good bits of your signal get freaky funkified.
In Sample & Hold mode, the filter is controlled by a random voltage, which causes a series of unpredictable bleeps and bloops, and honestly, is just good clean fun. In this mode, the DzRangedz controls the speed of the effect, and if you figure out what the rest of the controls do, let us know, will you? Add an octave before/after the Sample & Hold and you'll have created a deep-fried space droid computer freakout!
We recommend placing the Spatial Delivery first in your signal chain for optimal tracking, but experimenting with stacking and signal chain placement can take the potential of the Spatial Delivery even further.
V2 Updates - January 2018
New flexi switch silent relay based switching allows for traditional latching or momentary operation. For standard latching operation, tap the footswitch once to activate the effect and then tap again to bypass. For momentary operation, hold the footswitch down for as long as you'd like to use the effect. Once you release the switch the effect will be bypassed.
Hear Spatial Delivery on Soundcloud.
Features:
• Voltage Controlled Envelope filter with Sample & Hold
• Three filter modes: Upwards Sweep, Downwards Sweep, and Sample & Hold
• "Filter" control crossfades between Low Pass, High Pass, and Band Pass filters for precise control over filter bandwidth
• Touch responsive filtering for expressive auto-wah style modulation
• Great on guitar, bass, keys, drum machines, synths, etc.
• New flexi switch silent relay based switching allows for traditional latching or momentary operation*
• True Bypass
• All-analog dry signal path
• Hybrid analog/digital wet signal path
• Current draw: 69mA
• Weight: 14 ounces
• Product Dimensions: 3.25" H x 3.25" W x 5.75" D
