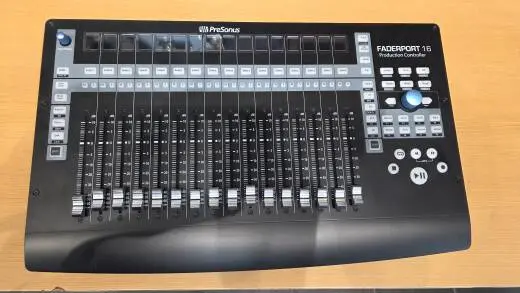

PreSonus FaderPort 16 Mix Production Controller
Additional Photos:
Product Videos :

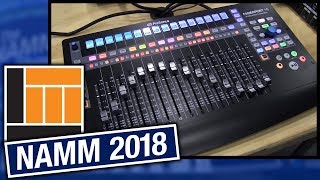

FaderPort 16: 16-channel Mix Production Controller
A superior solution for anyone who mixes in the box, only the FaderPort 16 provides 16 100mm touch-sensitive, motorized faders and 89 buttons covering 104 different functions, all in a compact chassis that easily sits on any desk. Quickly zoom in on audio files for editing, modify plug-in parameters, manage aux mixes - and, of course, control track levels with the touch of a finger. With the FaderPort 16, you'll enjoy the fastest, most efficient workflow you've ever experienced.
Work faster and smarter.
Rather than forcing you to revise your mixing method, the FaderPort 16 augments the way you currently mix. You still use your faithful keyboard and mouse for things they do well, and the FaderPort 16 handles what you really want to get your fingers on: your mix. Having the ability to control the levels of 16 channels at once makes creating the perfect mix easier than ever before. And the FaderPort 16 allows you to view just the information you need to access. Sixteen digital scribble strips provide visual feedback. Quickly navigate between tracks and buses. Need to automate your virtual instruments? The FaderPort 16 lets you view just those tracks, making switching automation tasks a breeze. This is DAW control the way you always hoped it could be!
Universal compatibility and tight Studio One integration.
FaderPort 16's streamlined workflow and support for the Mackie Control and HUI protocols make it fast and easy to control virtually any DAW. No driver installation is necessary; just plug the control surface into a USB port and take command of your mix and plug-ins.
But the FaderPort 16 is downright magical when used with PreSonus Studio One. (Studio One Artist is included.) You'll be amazed how much faster you can work.
FEATURES
• 16 touch-sensitive, 100 mm long-throw, motorized faders
• 16 Scribble Strip displays
• Complete recording-transport controls: Play, Stop, Fast Forward, Rewind, Record, Loop
• Drop Marker, Next/Prev Marker, Next / Prev Event
• General session controls: Undo/Redo, Arm All, Solo/Mute Clear, Track Management, Click On/Off
• Session Navigator provides quick control over Track Scrolling, Channel Banking, Timeline Scrolling, and much more
• Channel Controls: Level, Pan, Solo, Mute, Rec Arm
• Automation Controls: Touch, Latch, Trim, Write, Read, Off
• Optional Fader functionality: Plug-in edit, bus sends, pan
• Mac / Windows compatible with native Studio One support and HUI and Mackie Control Universal emulation
• Footswitch input for hands-free start/stop
• USB 2.0 connectivity
COMPUTER SYSTEM REQUIREMENTS
Below are the minimum computer-system requirements for the FaderPort 16:
Mac
Mac OS X 10.8.5 64-bit or later
Intel Core 2 Duo processor (Intel Core i3 or faster recommended)
4 GB RAM (8 GB or more recommended)
Windows
Windows 7 x64/x86 SP1 + platform update, Windows 8.1 x64/x86, Windows 10 x64/x86
Intel Core 2 Duo (Intel Core i3 or faster recommended)
4 GB RAM (8 GB or more recommended)
Mac and Windows Systems
USB 2.0 port
Internet connection required for driver and bundled software installation
30 GB hard disk space*
Monitor with 1366 x 768 resolution (high-dpi monitor recommended)*
*Required for Studio One
TECHNICAL SPECIFICATIONS
Input / Output
- 1 USB 2.0 port
- 1 Footswitch jack for hands-free stop/start
Faders
- 16 100 mm long-throw, touch-sensitive, motorized faders
- Dual-servo motorized drive belt system for fast and quiet operation
- Ultra-smooth feel and lightning fast
- Heavy-duty construction
- Resolution: 10-bit, 1,024 steps
Buttons and Knobs
General Controls: Undo/Redo, Arm All, Solo/Mute Clear, Timecode, Track Management, Click On/Off, 4 programmable User buttons, 8 Function buttons, Macro, Parameter Link, Bypass Plug-ins
Channel Controls: Level, Pan, Solo, Mute, Select, Rec Arm
Automation Controls: Touch, Latch, Trim, Write, Read, Off
Optional Fader Functionality: Plug-in Edit, Bus Sends, Pan
Window View: Mix, Project, Transport, Undo
Transport: Play, Stop, Fast Forward, Rewind, Record, Loop, Return to Zero (Functionality varies slightly, depending on the DAW.)
Navigation: Track Scroll, Channel Banking, Timeline Scroll, Horizontal Zoom, Vertical Zoom, Drop Marker, Next/Prev Marker, Next/Prev Event, Scrub, Nudge
Console Management: Show/Hide: Audio Tracks, Inputs, MIDI Tracks, Buses, Outputs, VCAs, FX; Show All
Displays: 16 digital scribble strip displays, time code display, channel meters
Power
12 VDC, 1.2A external power supply (factory configured, included)
Dimensions
Height: 2.11" (53.59 mm)
Depth: 11.9" (302.26 mm)
Width: 19.6" (497.84 mm)
Weight: 8 lb. (3.63 kg)
Media
