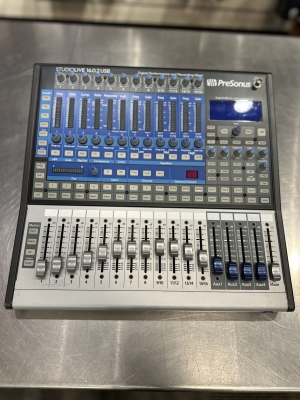

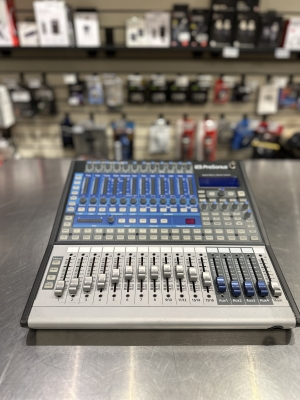

PreSonus StudioLive 16.0.2 USB 16-Channel Digital Mixer

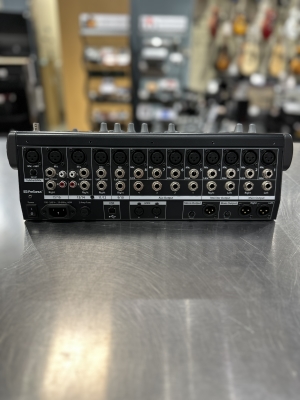

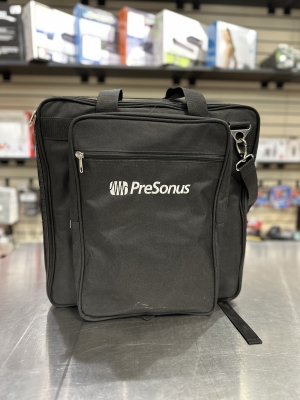

Additional Photos:
You'll never run out of signal processors.
StudioLive 16.0.2 USB mixers provide plenty of DSP power, with no limitations, no shared resources, no figuring out what processing is available where. You have all of the processing available at all times, with no compromises or caveats. The unique Fat Channel provides a compressor, limiter, expander, and 3-band semi-parametric EQ on every channel and bus; a highpass filter on each channel; phase reverse for the channel mic preamps; a library of professionally crafted presets; and the ability to save and selectively recall processor settings. A stereo, 31-band graphic EQ sits on the main bus. To top it off, you get two 32-bit delay/reverb effects processors, each with its own dedicated mix bus and a library of useful effects presets.
Superior sound.
Connect a StudioLive 16.0.2 USB mixer and you'll instantly hear details and clarity you'd expect to find only in a much more expensive console. StudioLive mixers operate at up to 48 kHz for high-definition mixing and recording. High-quality Burr-Brown converters on every input and output provide a best-in-class 118 dB of dynamic range so you'll catch every high and low with great accuracy and no audible distortion. And our XMAX microphone preamps deliver incredibly high headroom, deep lows, smooth highs, and a rich overall sound.
Integrated, multiplatform software for flexible control and one-click recording.
Like all PreSonus StudioLive mixers, the StudioLive 16.0.2 USB is tightly integrated with an entire suite of state-of-the-art software. Mix wirelessly or over a wired network from anywhere using UC Surface touch-control software for Mac, Windows, Android, and iPad. Control individual monitor mixes onstage with QMix-UC for iPhone/iPod touch and Android. Automate virtual soundchecks and record shows with Capture for Mac and Windows. Edit, sweeten, and digitally release your recordings with Studio One Artist. StudioLive 16.0.2 USB mixers and software work together to form a cohesive ecosystem that helps you achieve your creative vision.
Add excitement to performances with MIDI control.
Being able to control the StudioLive 16.0.2 USB from an iPad, iPhone, iPod touch, or Android device is cool - unless your hands are busy playing your instrument. That's why the StudioLive 16.0.2 USB offers MIDI In and Out. Use a MIDI footpedal or DAW to recall scenes using MIDI Program Changes, control the main output volume and effects level, mute effects between songs, switch from lots of reverb to a little bit of delay, and change the mix for a solo. You can even automate these features with a DAW! It's a great way to make your performances more exciting and varied, even if you don't have a separate soundperson.
FEATURES
8 mono and 4 stereo channel inputs with 60 mm precision faders (12 faders)
4 auxiliary buses (pre/post-fader send)
2 Internal FX buses
Fat Channel signal processing on all channels and buses, with 3-band semi-parametric EQ, compressor, limiter, downward expander on all channels and busses
One 31-band stereo graphic EQ (on main outputs only)
18-in/16-out USB recording interface (24-bit/44.1 kHz and 48 kHz)
• Compatible with most audio software via ASIO, Windows Audio, Core Audio
2 stereo 32-bit digital effects processors with customizable reverb and delay presets
Scene store and recall
Settings can be copied among channels and buses and saved as user presets.
Software bundle includes:
• PreSonus Studio One Artist digital audio workstation for Mac and Windows
• PreSonus Capture live-recording software for Mac and Windows
• PreSonus UC Surface mixer-control software for Mac, Windows, Android, and iPad
• Free downloadable PreSonus QMix-UC software for iPhone/iPod touch and Android provides wireless remote control of aux mixes
Lockout mode protects your settings from meddlers and accidents
MIDI Control Mode provides control over:
• Scene and FX Preset recall
• Main Volume, FXA, and FXB output levels
• FXA and FXB assign/unassign to Mains
COMPUTER SYSTEM REQUIREMENTS:
Mac
- Mac OS X 10.8.5 64-bit or later
- Intel Core 2 Duo processor (Intel Core i3 or faster recommended)
- 4 GB RAM (8 GB or more recommended)
Windows
- Windows 7 x64/x86 SP1 + platform update, Windows 8.1 x64/x86, Windows 10 x64/x86
- Intel Core 2 Duo (Intel Core i3 or faster recommended)
- 4 GB RAM (8 GB or more recommended)
Mac and Windows Systems
- USB 2.0 port
- Internet connection
- Internal or external 7200 RPM storage drive highly recommended
- 30 GB hard disk space
- Monitor with 1366x768 resolution
iOS
- iOS 9.3 or later
- iPad Pro, iPad Air 2, iPad Air, iPad mini 4, iPad mini with Retina display, iPad (4th generation), iPad mini, iPad (3rd generation), iPad 2
Android
- Android 5.0 (Lollipop) or later
- Android smartphone (QMix-UC)
- Android tablet (8-inch) with 1024x768 resolution (UC Surface)
TECHNICAL SPECIFICATIONS:
Microphone Preamp
Type: XLR Female, Balanced
Frequency Response to Direct Output (at unity gain): 20 Hz-20 kHz, 0 / -0.5 dBu
Frequency Response to Main Output (at unity gain): 20 Hz-20 kHz, +/-0.5 dBu
Input Impedance (Balanced): 1 kΩ
THD to Direct Output (1 kHz at unity gain): < 0.005%, +4 dBu, 20 Hz20 kHz, unity gain, unwtd
THD to Main Output (1 kHz at unity gain): 0.005%, +4 dBu, 20 Hz-20 kHz, unity gain, unwtd
EIN to Direct Output: +125 dB unwtd, +130 dB A-wtd
S/N Ratio to Direct Output (Ref = +4 dB, 20 kHz BW, unity gain, A-wtd): -102 dB
S/N Ratio to Main Output (Ref = +4 dB, 20 kHz BW, unity gain, A-wtd): -95 dB
Common Mode Rejection Ratio (1 kHz at unity gain): +65 dB
Gain Control Range ( 1 dB): -16 dB to +67 dB
Maximum Input Level (unity gain): +16 dBu
Phantom Power (+/- 2 VDC): +48 VDC
Line Inputs, Balanced
Type: 1/4" TRS Female, balanced mono
Frequency Response to Direct Outputs (at unity gain): 10 Hz-20 kHz, 0 / -0.5 dBu
Frequency Response to Main Outputs (at unity gain): 20 Hz-20 kHz, 0/-0.5 dBu
Input Impedance: 10 kΩ
THD to Direct Output (1 kHz at unity gain): < 0.0007%, +4 dBu, 20 Hz-20 kHz, unity gain, unwtd
THD to Main Output (1 kHz at unity gain): < 0.005%, +4 dBu, 20 Hz-20 kHz, unity gain, unwtd
S/N Ratio to Direct Output (Ref = +4 dBu, 20 kHz BW, unity gain, A-wtd): -105 dB
S/N Ratio to Main Output (Ref = +4 dBu, 20 kHz BW, unity gain, A-wtd): -95 dB
Gain Control Range (+/- 1 dB): -20 dB to +20 dB
Maximum Input level (unity gain): +22 dBu
Line Inputs, Unbalanced
Type: RCA Female, unbalanced (stereo pair)
Maximum Input Level: +22 dBu
Main Outputs
Type: XLR Male, balanced (stereo pair); 1/4" TRS Female, balanced (stereo pair)
Rated Output Level: +24 dBu
Output Impedance: 100Ω
Aux Outputs
Type: 1/4" TRS Female, balanced (mono)
Rated Output Level: +18 dBu
Output Impedance: 100Ω
Monitor Outputs
Type: 1/4" TRS Female, balanced (stereo pair)
Rated Output Level z: +18 dBu
Output Impedance: 100Ω
System Crosstalk
Input to Output (Ref = +4 dBu, 20 Hz-20 kHz, unwtd): -90 dBu
Adjacent Channels (Ref = +4 dBu, 20 Hz-20 kHz, unwtd): -87 dBu
Noise Gate (Expander)
Threshold Range: -84 dB to 0 dB
Attack Time: Adaptive (0.2 - 2.5 ms)
Release Time: 70 ms
Expander Attenuation Range: 2:1
Compressor
Threshold Range: -56 dB to 0 dB
Ratio: 1:1 to 14:1
Response Time (Attack/Release): 0.2 ms / 1.0s ("Tight") to 180 ms / 1.0s ("Smooth")
Auto Attack and Release: Attack = 10 ms, Release = 150 ms
Curve Types: hard and soft knee
EQ
Type: 2nd-order shelving filter (Q = 0.55)
Low (Low-pass or Bandpass): 36 to 465 Hz, +/-15 dB
Mid: 260 Hz to 3.5 kHz, +/-15 dB
High (High-pass or Bandpass): 1.4 kHz to 18 kHz, +/-15 dB
Digital Audio
Host Interface: USB 2.0
ADC Dynamic Range (A-wtd, 48 kHz): 118 dB
DAC Dynamic Range (A-wtd, 48 kHz): 118 dB
Internal Processing: 32-bit, floating point
Sampling Rate: 44.1, 48 kHz
A/D/A Bit Depth: 24 bits
Reference Level for 0 dBFS: +18 dBu
Clock
Jitter: < 20 ps rms (20 Hz - 20 kHz)
Jitter Attenuation: > 60 dB (1 ns in ≈ 1 ps out)
Power
Connector: IEC
Input-Voltage Range: 100 to 240 VAC (factory configured)
Power Requirements (continuous): 100W
Physical
Dimensions (L x W x H max): 15.56 x 16 x 5.5 inches (397 x 406 x 140 mm)
Weight: 20 lbs. (9.1 kg)
Q & A
Reviews
NOTE: this is not a DAW control surface
ONLY COMPLAINT: midi connections cannot be used for recording keyboard performance- control of mixer only. 1810C supported this no problem
