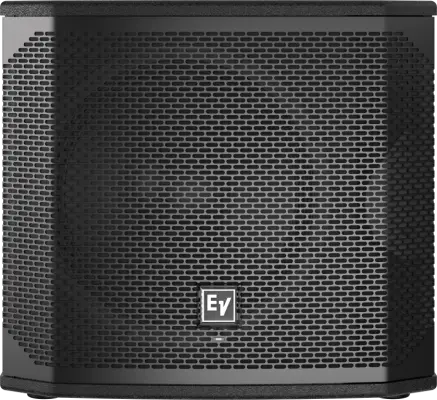

Electro-Voice ELX200-12SP 12-Inch Powered Subwoofer
Additional Photos:
settings), visual monitoring of limiter status, input level control and meters, and master volume control to ensure optimal gain structure. ELX200 powered models are ideal for portable and installed applications, with lightweight and compact 15-mm wood enclosures, integrated M20 threaded pole polemount plate, and two-handle design for easy lifting.
The new QuickSmart Mobile wireless control and monitoring application, using Bluetooth Low Energy (BTLE) technology, allows intuitive system control, configuration and monitoring of up to six powered ELX200 loudspeakers simultaneously. Receive alerts when your system is being overdriven, and control your system while in front of your speakers, not behind. Bluetooth is available in select countries.
Features:
- EV QuickSmart Mobile application: quickly and wirelessly configure, control and monitor up to six ELX200 loudspeakers simultaneously, and receive immediate notification during critical performance conditions. Bluetooth is available in select countries.
- QuickSmartDSP features best-in-class processing. Easy setup via three presets, sub/top system-match, five user-programmable presets, visual monitoring of limiter status, input level control and meters, and master volume control to optimize gain structure, all via LCD.
- High-efficiency 1200 W Class-D power amplifier delivers up to 129 dB peak SPL utilizing ultraefficient, high-sensitivity transducer designed and engineered by EV.
- Ideal for portable and installed applications. Professional-grade hardware: integrated M20 threaded pole mount plate and two-handle design for easy lifting.
Specifications:
Connector Type: (2) XLR/TRS combo jacks and (2) XLR link outputs
Depth: 457mm (17.99")
Enclosure Material: 15 mm plywood with EVCoat
Family: ELX200
Frequency Range (-10 dB): 41 Hz 165 Hz
Frequency Response (-3 dB): 49 Hz 135Hz
Grill: 18 AWG steel with powdercoat
Height: 397mm (15.63")
LF Transducer: EVS-12L 300 mm (12 in)
Low Pass Frequency: Adjustable: 80 Hz, 100 Hz, 120Hz, 150 Hz
Max. SPL/1m (calc): 129dB
Power Consumption: 100 - 240 V~, 50 - 60 Hz, 1.8A
Power Rating: 1200W
Powered or Passive: Powered
Shipping Weight: 22.3kg (49.16 lbs)
Speaker Type: Subwoofer
Weight Net: 19.1kg (42.11 lbs)
Width: 445mm: (17.52")
Woofer Size: 12 inch
*Sold individually.
