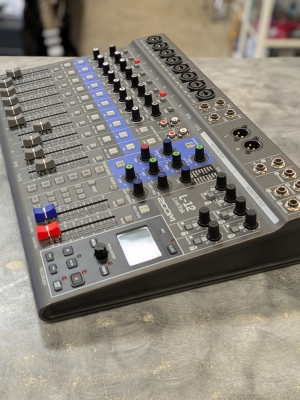

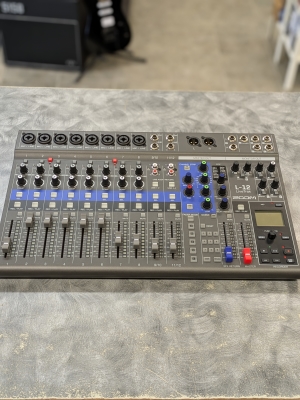

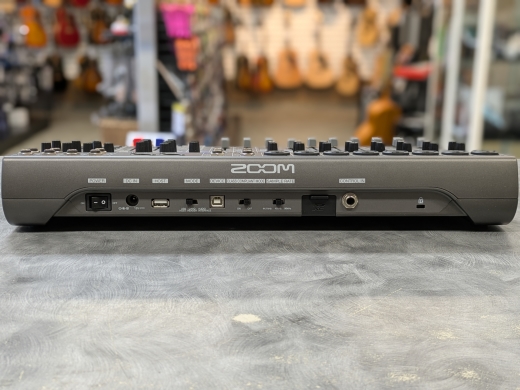

Zoom LiveTrak L-12 12-Channel Digital Mixer / Recorder w/FX - USB
Additional Photos:
Product Videos :
YouTube Video
With the LiveTrak L-12, you can finally mix, record, and monitor with a single piece of gear. Its the only digital console that lets you mix your live performance and record up to 12 discrete channels - all while providing five individual custom headphone mixes.
Effortless Live Mixing - LiveTrak's 12 discrete channels (eight mono plus two stereo) have a 3-band mid-parametric EQ and 16 built-in send effects. Its eight mono channels also have a dedicated compressor. With all these controls plus its 12-segment LED metering, the L-12 offers just what you need for intuitive mixing.
Record Everything, Remix Anywhere - LiveTrak lets you record 12 discrete tracks up to 24-bit/96 kHz WAV audio to an SD card while simultaneously mixing your live show. Tracks are recorded pre-EQ and effects, so they can be transferred to your favorite DAW for further mixing and editing.
Five Custom Monitoring Mixes - Each of LiveTrak's five monitor outputs provides a unique mix, so every performer can create and save a mix that's tailored to their preferences. Its headphone amplifier delivers volume that stands up in any live environment without the need for a separate headphone monitoring setup.
USB Connectivity for Your DAW - LiveTrak is also a 14-in/4-out USB audio interface with flexible routing options, offering unlimited possibilities. Class compliant mode, which enables connection with iOS devices, is also supported.*
*Apple Lightning to USB Camera Adapter required (sold separately).
FEATURES
• 12 discrete channels (8 mono plus 2 stereo) with XLR or 1/4-inch connectivity
• 14-track simultaneous recording, 12-track playback
• 14-in/4-out USB audio interface connectivity
• 5 powered headphone outputs, each with a customizable and saveable mix
• Add backing/click tracks from your computer to your live mix and recording
• RCA and TS line inputs
• 48V phantom power (channels 1-4 and 5-8)
• Hi-Z connectivity (channels 1 and 2)
• 26 dB pad (channels 3-8)
• Built-in compression control (Channels 1-8)
• Digital level meters -48 dB to -0 dB
• Master mute button
• Low-cut control
• Stereo panning
• Master and Monitor Outputs A-E
• Scene saving function, up to 9 scenes saved at a time
• 16 built-in delay and reverb effects with adjustable parameters
• Built-in slate mic
• Class-compliant mode (for iOS compatibility)
• SD card input
• Built-in metronome
• Automatic recording starting/stopping capability
• Project protection
• Import/export projects with USB 2.0 host port
• Latency adjustment for A-to-D conversion
• Compatible functions for ZOOM FS01 footswitch
Includes:
- AC adapter (AD-19)
- USB 2.0 cable
- Quick Guide
SPECIFICATIONS
Inputs:
Mono (MIC/LINE): 8 XLR/TRS combo jacks (XLR: 2 HOT, TRS: TIP HOT)
Stereo (LINE): 2 TS phone/RCA pin (unbalanced) jacks, Maximum input level +10 dBu
Outputs:
MASTER OUT: 1 XLR jack (balanced)
MONITOR OUT: 5
MONITOR OUT A (TRS): TRS phone jacks (balanced)
MONITOR OUT A-E (PHONES): Standard Stereo phone jacks
BUSES
MASTER:1
MONITOR: 5
SEND EFX: 1
CHANNEL STRIP
COMP:
LOW CUT: 75 Hz, 12 dB/OCT
EQ:
HIGH: 10 kHz, 15 dB, shelving
MID: 100 Hz-8 kHz, 15 dB, peaking
LOW: 100 Hz, 15 dB, shelving
LEVEL METERS
Level segments:12
SEND EFFECTS: 16 types
RECORDER
Maximum simultaneous recording tracks: 14 at 44.1/48 kHz (12 channel + stereo mix); 12 at 96 kHz
Maximum simultaneous playback tracks: 12
Recording format: WAV 44.1/48/96 kHz, 16/24-bit, mono/stereo WAV format
Recording media: 16 MB-2 GB SD cards, 4 GB-32 GB SDHC cards, 64 GB-512 GB SDXC cards
AUDIO INTERFACE
44.1/48 kHz: Recording: 14 channels; Playback: 4 channels
Bit depth: 24-bit
Interface: USB 2.0
CARD READER
Class: Mass storage USB 2.0 High Speed
USB HOST
Class: USB 2.0 High Speed
SAMPLING RATE
Sampling rate: 44.1/48/96 kHz
FREQUENCY CHARACTERISTICS
44.1 kHz: -1.0 dB: 20 Hz - 20 kHz
96 kHz: -3.0 dB: 20 Hz - 40 kHz
EQUIVALENT INPUT NOISE
Actual measurements: -128 dB EIN (IHF-A) with +60 dB/150 Ω input
Display: LCD with backlight (128x64 resolution)
Power supply: ZOOM AD-19 AC adapter (DC12 V/2 A)
Power consumption: 17W maximum
External dimensions (W x D x H): 445 mm x 282 mm x 70.5 mm / 17.5" x 11.1" x 2.78"
Weight (main unit only): 2.53 kg / 5.58 lbs
Effortless Live Mixing - LiveTrak's 12 discrete channels (eight mono plus two stereo) have a 3-band mid-parametric EQ and 16 built-in send effects. Its eight mono channels also have a dedicated compressor. With all these controls plus its 12-segment LED metering, the L-12 offers just what you need for intuitive mixing.
Record Everything, Remix Anywhere - LiveTrak lets you record 12 discrete tracks up to 24-bit/96 kHz WAV audio to an SD card while simultaneously mixing your live show. Tracks are recorded pre-EQ and effects, so they can be transferred to your favorite DAW for further mixing and editing.
Five Custom Monitoring Mixes - Each of LiveTrak's five monitor outputs provides a unique mix, so every performer can create and save a mix that's tailored to their preferences. Its headphone amplifier delivers volume that stands up in any live environment without the need for a separate headphone monitoring setup.
USB Connectivity for Your DAW - LiveTrak is also a 14-in/4-out USB audio interface with flexible routing options, offering unlimited possibilities. Class compliant mode, which enables connection with iOS devices, is also supported.*
*Apple Lightning to USB Camera Adapter required (sold separately).
FEATURES
• 12 discrete channels (8 mono plus 2 stereo) with XLR or 1/4-inch connectivity
• 14-track simultaneous recording, 12-track playback
• 14-in/4-out USB audio interface connectivity
• 5 powered headphone outputs, each with a customizable and saveable mix
• Add backing/click tracks from your computer to your live mix and recording
• RCA and TS line inputs
• 48V phantom power (channels 1-4 and 5-8)
• Hi-Z connectivity (channels 1 and 2)
• 26 dB pad (channels 3-8)
• Built-in compression control (Channels 1-8)
• Digital level meters -48 dB to -0 dB
• Master mute button
• Low-cut control
• Stereo panning
• Master and Monitor Outputs A-E
• Scene saving function, up to 9 scenes saved at a time
• 16 built-in delay and reverb effects with adjustable parameters
• Built-in slate mic
• Class-compliant mode (for iOS compatibility)
• SD card input
• Built-in metronome
• Automatic recording starting/stopping capability
• Project protection
• Import/export projects with USB 2.0 host port
• Latency adjustment for A-to-D conversion
• Compatible functions for ZOOM FS01 footswitch
Includes:
- AC adapter (AD-19)
- USB 2.0 cable
- Quick Guide
SPECIFICATIONS
Inputs:
Mono (MIC/LINE): 8 XLR/TRS combo jacks (XLR: 2 HOT, TRS: TIP HOT)
Stereo (LINE): 2 TS phone/RCA pin (unbalanced) jacks, Maximum input level +10 dBu
Outputs:
MASTER OUT: 1 XLR jack (balanced)
MONITOR OUT: 5
MONITOR OUT A (TRS): TRS phone jacks (balanced)
MONITOR OUT A-E (PHONES): Standard Stereo phone jacks
BUSES
MASTER:1
MONITOR: 5
SEND EFX: 1
CHANNEL STRIP
COMP:
LOW CUT: 75 Hz, 12 dB/OCT
EQ:
HIGH: 10 kHz, 15 dB, shelving
MID: 100 Hz-8 kHz, 15 dB, peaking
LOW: 100 Hz, 15 dB, shelving
LEVEL METERS
Level segments:12
SEND EFFECTS: 16 types
RECORDER
Maximum simultaneous recording tracks: 14 at 44.1/48 kHz (12 channel + stereo mix); 12 at 96 kHz
Maximum simultaneous playback tracks: 12
Recording format: WAV 44.1/48/96 kHz, 16/24-bit, mono/stereo WAV format
Recording media: 16 MB-2 GB SD cards, 4 GB-32 GB SDHC cards, 64 GB-512 GB SDXC cards
AUDIO INTERFACE
44.1/48 kHz: Recording: 14 channels; Playback: 4 channels
Bit depth: 24-bit
Interface: USB 2.0
CARD READER
Class: Mass storage USB 2.0 High Speed
USB HOST
Class: USB 2.0 High Speed
SAMPLING RATE
Sampling rate: 44.1/48/96 kHz
FREQUENCY CHARACTERISTICS
44.1 kHz: -1.0 dB: 20 Hz - 20 kHz
96 kHz: -3.0 dB: 20 Hz - 40 kHz
EQUIVALENT INPUT NOISE
Actual measurements: -128 dB EIN (IHF-A) with +60 dB/150 Ω input
Display: LCD with backlight (128x64 resolution)
Power supply: ZOOM AD-19 AC adapter (DC12 V/2 A)
Power consumption: 17W maximum
External dimensions (W x D x H): 445 mm x 282 mm x 70.5 mm / 17.5" x 11.1" x 2.78"
Weight (main unit only): 2.53 kg / 5.58 lbs
Media
Youtube video product demo
Q & A
There are currently no questions for this product.
Reviews
3.149.29.224
Mozilla/5.0 AppleWebKit/537.36 (KHTML, like Gecko; compatible; ClaudeBot/1.0; [email protected])
Versatile mixer for the intermediate or advanced sound-man 0 of 0 customers found this review helpful
Features
Quality
Value
Overall
Product Experience I own it
Closest Store Truro, Nova Scotia
This board is not for the beginner unless you’re a quick learner… somewhat of a Swiss Army knife of mixing boards, suitable for a small studio, podcaster, live main/sub mixer and even for daw applications.
It doesn’t do automation very well unless paired with a computer and a midi controller with faders. Although it records audio with good quality, it has only limited file management capabilities so I recommend that audio be transferred or recorded directly to a computer.
It shines when recording a band jamming out ideas or for the podcaster who wants to archive the show.
Personally, I’m using it in a home studio setting with a keyboard controller, mics, instruments etc. and a computer. I find that as an educational tool and it’s potential for expanded uses and adaptability to a wide array of performance situations make the Livetrak L12 a good value.
Posted by Dan on Feb 17, 2024
Excellent for studio use 0 of 0 customers found this review helpful
Features
Quality
Value
Overall
Product Experience I own it
Closest Store Winnipeg (Pembina), Manitoba
I've had this mixer for over a year now and it's perfect for use in my home studio. Having 5 headphone outputs is great for use with in ear monitor systems, or for routing to floor monitors. It was super easy to level set 2 guitars, a bass and 4 vocal inputs. I may upgrade to the L20 in order to get enough inputs to fully mic the drums (currently have 1 overhanging the set), but if you are looking for a nice unit to record multiple instruments/vocals, and feed that into a multitrack program (I use Abelton Live) this is a great unit for that. Super handy to be able to record directly to the SD card so that when we set up live somewhere we don't need the full band present to sound check, just play back a recent recording. Overall a fantastic unit, no regrets whatsoever with this purchase!
Posted by Wayne on Sep 9, 2023
not really compatible with Pro tools 0 of 0 customers found this review helpful
Features
Quality
Value
Overall
Product Experience I own it
Closest Store Moncton, New Brunswick
I've been fiddling with this machine for a couple of months, but I'm not able to do any real recording on my DAW/pt. Any signal I try comes out garbled. Some recordings are fine to start with then become scratchy and clippy. I've tried all the session settings, nothing seems to work. I don't know if it's pro tools, my computer or the l12. It works great as a mixer/onboard recorder.
The mike preamp is ok with some tweaking. It would be nice to have the on board fx on the different channels for recording effects from the mike channel for instance. I understanding there's a fix for that coming.
Overall the machine is solid, no other issues. I'll try to work around the aformentioned I'm thinking of trying a focusrite interface
Posted by Ray L on Jul 24, 2023
Love my L-12!! 3 of 3 customers found this review helpful
Features
Quality
Value
Overall
Product Experience I own it
Closest Store Toronto (Bloor St.), Ontario
Hi,
This is my first review ever! I've been using the L-12 for a year and a half now. No issues yet! Great features and build quality.
Cheers!
Posted by David on Nov 28, 2020
Livetrak L12. Great Value.Everything I need.Intuitive 9 of 9 customers found this review helpful
Features
Quality
Value
Overall
Product Experience I own it
Closest Store Mississauga, Ontario
I was previously using Soundcraft UI16. Great mixer for live shows- but no Audio Interface and a bit of a nuisance to connect to a computer or tablet every time I want to change a setting. Used Scarlett 2I4 as audio interface. also great equipment- but only 2 channels
Traded both in on Livetrak L12 on Tuesday. On Saturday I mixed sound and recorded a live 6 hour jam (in about one hour segments onto SD card) with 5-6 musicians. Set up was painless. Play back was surprisingly clear. Left my laptop and tablet at home
Today I copied the files into Sonar and have been editing down the individual songs.
Multi track audio interface works great with Sonar Artist
. the only difficulty I had was installing the drivers. for some reason the utility gave no indication of progress but actually did complete the installation
For me the convenience of a live mixer, ability to record a show and multi track audio interface were the features I have been looking for.
Can't wait to record the next jam session
Posted by Paul Grant on Jun 17, 2018
Very versatile 2 of 2 customers found this review helpful
Features
Quality
Value
Overall
Product Experience I own it
Closest Store Bedford, Nova Scotia
This is an amazing piece of gear! The more I mess with it the more I like it. I can't wait to put it through its paces on a live mobile recording.
Posted by Georges Hebert on Feb 3, 2018
LiveTrak L12 14 of 15 customers found this review helpful
Features
Quality
Value
Overall
Product Experience I own it
Closest Store Cambridge, Ontario
The features this has is pretty incredible. Ok, you may think this thing sounds cheap and just looks ok. Right off the hop I had to check the mic pres which sound remarkably good. Clear, transparent with ample headroom and a low noise floor hold promise of value.
The L12 can be used as a live mixer with onboard effects that actually sounds a decent option when needing some spatial enhancements. Again, not overly sophisticated but certainly capable in many situations.
The L12 is also a DAW control device allowing 14 tracks in. Built in one knob compression is a useful tool and a sweepable EQ. I believe it works with most DAWs.
Another great feature is that it is Device Compliant which makes this unit iOS compatible!! Works in GarageBand!
So many variations to utilize this handy feature rich device that i nearly for to mention that this is also a stand alone multitrack recorder!! 14 tracks simultaneously!
This thing literally can do it all. Not having it for too long I can already sense great potential and convenience. I am very impressed by the functionality.
I had an issue with some playback issue that made me contact zoom support.
Boom!! Blown away again! I send an email off to the just before midnight, I had a response before noon the next day!!! From a real person addressing my specific question. They have made me a believer. ?
Posted by Reiner Strenzke on Sep 19, 2017
