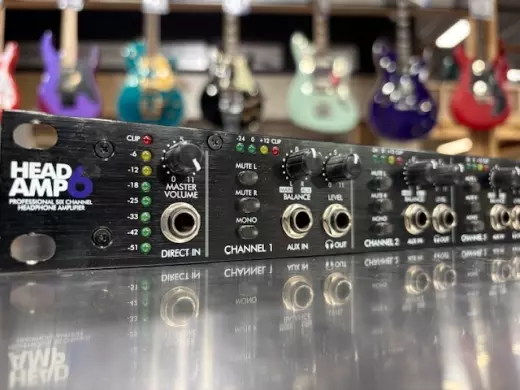

ART Pro Audio 6 Channel Headphone Amp
Additional Photos:
Your Price: $199.00 CDN
or from $29 CDN/mo
The HeadAmp6 is a fully-featured six -channel stereo headphone amplifier that includes six auxiliary inputs to allow separate "more-me" mixes on each headphone channel.
Each output channel has a dual function Balance Control which will pan between Left & Right input of the main signal bus, or vary the mix between the main stereo signal bus and the auxiliary input for that respective channel.
Each output channel includes one front and two rear panel stereo 1/4-inch TRS head-phone jacks for ease of installation and quick patching capability. Mono, Mute L, and Mute R select buttons and on each channel select between four operating modes; 1) Stereo, 2) Mono Left, 3) Mono Right, 4) Mono Both (Left & Right) for versatile monitoring solutions. Independent output level controls on each channel personalize monitoring levels.
Input options include XLR and 1/4-inch TRS balanced inputs with matching "Thru" jacks for bridging multiple units. An additional front panel stereo 1/4-inch TRS Direct In jack for quick patch override of the rear panel inputs is included for quick insertion of any stereo source. Master Volume control sets the main signal bus level. Eight-segment precision LED level metering on the main bus and four-segment indicators on each output channel provide visual feedback of the signal level at all key points.
FEATURES:
• Six Independent High-Power Headphone Amplifier Channels
• Dual Function Balance/Mix Control per Channel
• Front Panel Stereo Aux Input for each Channel
• Multiple Monitoring Settings per Channel
• Individual Output Level Control per Channel
• Precision Four Segment LED Metering Per Channel
• Master Volume Control w/ Eight Segment LED Metering
• Front Panel Direct In Jack
• One Front and Two Rear Mounted Headphone Jacks per Channel
• Connects and Drives up to 18 Headphones Simultaneously
• XLR and 1/4" Main Inputs and Outputs
• Parallel Main Outputs for Multiple Unit Use
SPECIFICATIONS:
• Input Connections: XLR-F balanced (2),-inch balanced (9)
• Output Connections: XLR-M balanced (2),-inch balanced (2),-inch stereo headphone (18)
• Input Impedance: 40K Ohms Main,10K Ohms Direct,15K Ohms Aux In
• Output Impedance: 90dB typical
• THD: 101dB typical
• CMRR: >40dB
• Phase Shift:
Each output channel has a dual function Balance Control which will pan between Left & Right input of the main signal bus, or vary the mix between the main stereo signal bus and the auxiliary input for that respective channel.
Each output channel includes one front and two rear panel stereo 1/4-inch TRS head-phone jacks for ease of installation and quick patching capability. Mono, Mute L, and Mute R select buttons and on each channel select between four operating modes; 1) Stereo, 2) Mono Left, 3) Mono Right, 4) Mono Both (Left & Right) for versatile monitoring solutions. Independent output level controls on each channel personalize monitoring levels.
Input options include XLR and 1/4-inch TRS balanced inputs with matching "Thru" jacks for bridging multiple units. An additional front panel stereo 1/4-inch TRS Direct In jack for quick patch override of the rear panel inputs is included for quick insertion of any stereo source. Master Volume control sets the main signal bus level. Eight-segment precision LED level metering on the main bus and four-segment indicators on each output channel provide visual feedback of the signal level at all key points.
FEATURES:
• Six Independent High-Power Headphone Amplifier Channels
• Dual Function Balance/Mix Control per Channel
• Front Panel Stereo Aux Input for each Channel
• Multiple Monitoring Settings per Channel
• Individual Output Level Control per Channel
• Precision Four Segment LED Metering Per Channel
• Master Volume Control w/ Eight Segment LED Metering
• Front Panel Direct In Jack
• One Front and Two Rear Mounted Headphone Jacks per Channel
• Connects and Drives up to 18 Headphones Simultaneously
• XLR and 1/4" Main Inputs and Outputs
• Parallel Main Outputs for Multiple Unit Use
SPECIFICATIONS:
• Input Connections: XLR-F balanced (2),-inch balanced (9)
• Output Connections: XLR-M balanced (2),-inch balanced (2),-inch stereo headphone (18)
• Input Impedance: 40K Ohms Main,10K Ohms Direct,15K Ohms Aux In
• Output Impedance: 90dB typical
• THD: 101dB typical
• CMRR: >40dB
• Phase Shift:
Q & A
There are currently no questions for this product.
Reviews
3.140.197.140
Mozilla/5.0 AppleWebKit/537.36 (KHTML, like Gecko; compatible; ClaudeBot/1.0; [email protected])
Art headphone amp 6 4 of 6 customers found this review helpful
Features
Quality
Value
Overall
Product Experience I own it
Closest Store Burlington, Ontario
I purchased this unit about 4 years ago for a small home studio. I used its XLR inputs to feed a monitor signal either from a mixer, or an DAW interface. The headamp was secured onto a shelf and never once got moved. It received only occasional use until a few months ago when I started having some musicians in to record and/or jam....basically use it for its intended purpose for the first time. I was disappointed that after only my 3rd small session output across all channels was suddenly broken up on one side and noisey/weak on the other. I concluded it must be the input stage that has failed. It is totally useless now and not worth fixing. I was careful with this gear, and I feel its breakdown was the result of a weak internal component.
Posted by Peter Day on Jan 3, 2020
Love it!!!!!! 0 of 0 customers found this review helpful
Features
Quality
Value
Overall
Product Experience I own it
Closest Store Abbotsford, British Columbia
Separate in put on each of the six headphones is a huge bonus! I can input my pre eq mix to some listeners and they can blend how much of each they want with the eq mix.
Very handy.
Admittedly it also looks great in my rack and feels very nice as well.
Posted by Michael A. on Jan 24, 2018
Cutting edge 1 of 1 customers found this review helpful
Features
Quality
Value
Overall
Product Experience I own it
Closest Store Laval, Quebec
Just got the unit. Packaging was great, but I cut myself on the front plate when unpacking it. Nothing serious, still the plate edges are way too sharp and dangerous to both cables and me! After carefully handling the unit to plug it in, I was happy with the sound and functionality of the unit.
Posted by Terrence Benoit on May 10, 2017
Perfect 1 of 1 customers found this review helpful
Features
Quality
Value
Overall
Product Experience I own it
Closest Store Markham, Ontario
I purchased the ART Headphone amp to use with my Shure in-ear monitors for live performances and it works fantastic. No more wedge monitors to lug around, no more feedback and best of all, I can actually hear our vocals now.
The unit is extremely well built. The buttons and controls are solid and smooth, as you'd expect from a quality product. And the blue LEDs look great too!
Posted by Brent Kehoe on Oct 26, 2016
Not bad for entry level 2 of 2 customers found this review helpful
Features
Quality
Value
Overall
Product Experience I own it
Closest Store Edmonton South, Alberta
Features: it has useful features being able to use a main mix, mix bypass to external speakers and insert via the aux send another mix (ie. monitor/custom) which then changes the balance L/R knob to a mix/blend.
Quality: It's OK. I've found the "zero" noon position to have more right bias, therefore you need to move the balance knob to the left off noon to get equal balance left/right (at least with the one we own.)
Value: It's definitely great for the value. 6 headphone lines out.
Overall: If you're just starting out this is a pretty good one but I think it's time to upgrade. We use it currently for our 4-5 player jam sessions and using in-ear monitors is definitely a plus for sound isolation and getting a good mix.
Posted by Drew on Apr 19, 2016
Excellent 2 of 2 customers found this review helpful
Features
Quality
Value
Overall
Product Experience I own it
Closest Store London North, Ontario
I bought this component to provide in ear sound for both recording and performance. It is a better alternative to stage monitors if you don't mind the extra cabling.
I am running it through a TRS splitter off my A&H ZED 24 phones out. It is clean sound and we are hearing what we are playing. No more missed cues.
Highly recommended.
Posted by Harold Hotham on Jun 6, 2015
6 Channel ART headphone amp 3 of 3 customers found this review helpful
Features
Quality
Value
Overall
Product Experience I own it
Closest Store Chilliwack, British Columbia
ART provides some of the best affordable home studio accessories and upgrades. I now have the ART MPA, VLA, XLR patch bay, 1/4" patch bay and 6 channel head phone amp. Unbeatable value and quality for the money!!! CHWK L&M owners and staff are great!
Posted by Roger Downing on Apr 16, 2014
