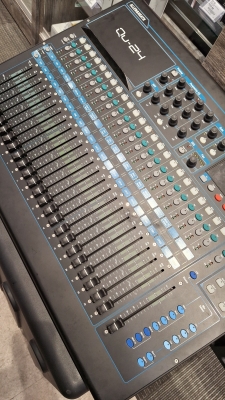

Allen & Heath QU-24 30-In / 24-Out Digital Mixing Console
Additional Photos:
Product Videos :
Qu series features include multitrack recording direct to USB, Automatic Mic Mixing, ProFactory mic presets, plus an ever growing ecosystem of apps, accessories and remote I/O.
Whether you're switching from analogue or updating your digital desk, it's time to experience the new digital with Qu-24
Feature Summary:

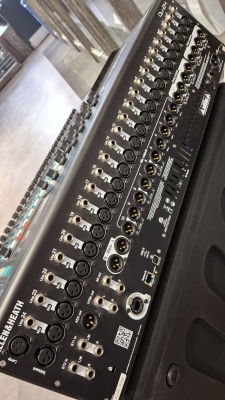

• 24 Mono Mic/Line Inputs (TRS + XLR)
• Recallable AnaLOGIQTM Preamps
• 3 Stereo Inputs (TRS)
• 20 Mix Outputs (XLR)
• 2 Stereo Groups (switchable to Mix mode)
• Up to 9 Monitor Mixes (4 mono + 5 stereo)
• 2 Stereo Matrix Outs
• 4 FX Engines
• 4 dedicated FX Sends / Returns
• 4 Mute Groups
• 4 DCA Groups
• AES Digital Out
• 3230 USB Audio Interface
• dSNAKETM Remote Audio Port
• 25 Motor Faders
• 800480 Touchscreen
• 10 Soft Keys
• Trim, polarity, HPF, gate, insert, 4-band PEQ, compressor, delay on all Inputs
• Insert, 4-band PEQ, 1/3 octave GEQ, compressor, delay on all Outputs
• Automatic Mic Mixer
• Channel Ducker on all inputs
• ProFactory Mic Presets
• iLive FX Library
• Built-in Signal Generator
• RTA with Peak Band indication
• Spectrogram to aid feedback elimination and room acoustics
• Qu-Drive Direct Multitrack Recording / Playback on USB drives
• DAW MIDI Control
• Qu-Pad iPad App
• Qu-You iPhone / Android personal monitoring app
• Qu-Control customisable iOS app for simple wireless control
• Compatible with ME Personal Mixing System
• High contrast metallic finish controls, matching premium GLD Chrome series
QU ECOSYSTEM
Qu provides much more than just a mixer. Qu is an entire ecosystem with Remote AudioRacks allowing I/O to be placed where it's needed, ME Personal Mixers expanding monitor mixes and enabling simple, time-saving local control, Qu Apps for complete remote setup and wireless mixing on stage or anywhere else in the venue, ProFactory Mic presets to speed up preparation time and ensure the best sound, plus USB recording and DAW integration for powerful workflow optimization from one centrepiece device.
ANALOGIQTM PREAMPS
Qu-24 features twenty-four AnalogiQTM digitally controlled preamps with advanced zero-crossing detection and a padless 1dB-step gain stage, which have been closely allied to the DSP for optimal gain accuracy and audio transparency. The analogue signal is captured by high-class, low latency 24bit analogue to digital converters, and are matched to 24bit digital to analogue converters to deliver the required high quality output. The AnalogiQTM preamp design has been refined to offer superb transparency, minimal distortion and an ultra-low noise floor, with a warm, musical sound that is missing from some digital consoles.
THE MIXING EXPERIENCE

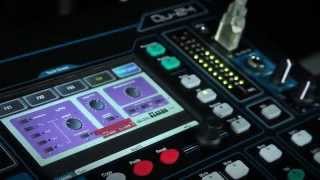

Having massive processing power and advanced functionality counts for nothing if you cant access the controls you need in a heartbeat. The 800480, True Colour Touchscreen and its dedicated rotary encoder form the heart of Qu-24s interface, providing super-fast access to all settings and parameters. Dedicated keys and screen tabs quickly guide you to meter and RTA views, FX racks, channel processing, USB audio control, scenes, setup menus and much more. Complementing the touchscreen is the SuperStrip a set of single function physical controls for instant access to gain, HPF, 4 band PEQ, gate, compressor, GEQ and pan. The screen overview also follows the control being turned.
ONE CHANNEL / ONE FADER
Qu-24 has a fader per mono input channel and fewer fader layers for simpler, quicker workflow. Some digital mixers dont offer a fader per physical input, meaning you have to access an additional fader layer to control these channels. This can be confusing and time consuming. Because every mic input is presented on its own fader for fast, easy control, this makes Qu-24 the perfect mixer for first-time converts from analogue to digital and those not comfortable working with several layers of faders.
