Focal Professional Shape 50 5-inch Powered Studio Monitor w/Dual Radiators (Single)
Additional Photos:
The Shape 40, Shape 50 and Shape 65 monitors are all made in France and integrate five innovations to maximise acoustic transparency. Designed to meet the needs of nearfield monitoring, Shape monitors combine an ingenuous design and numerous settings optimised for the acoustics of small listening rooms.
These new work tools distinguish themselves through the wide and extremely precise stereo image. The bass register is articulated and controlled. The lower mid-range and mid-range benefit from extreme neutrality, and without any masking effects, making equalization of these essential registers much easier. Finally, the new tweeter is whats at the source of the very high definition. It efficiently reveals any hissing, and its also very precise in the very high end.
KEY FEATURES
• Tweeter with very low directivity for a flexible listening position
• Designed without a port, but with a double passive radiator, allowing it to be placed near a wall.
• Numerous settings for optimal integration
• Accurate control, even in the very high end
• Flax sandwich cone: controlled and articulated bass, natural and detailed lower mid-range and upper mid-range registers.
• Mounting mechanisms present on the back and underneath the loudspeaker: for installing on a table stand, a microphone stand, the ceiling or a wall (Mounting accessories not supplied).
SPECIFICATIONS
System
Frequency response (+/-3dB) : 50Hz - 35kHz
Maximum SPL (musical signal) : 106dB SPL (peak @ 1m)
Electronic Section
Inputs/ Impedance
• Type - XLR : balanced 10kOhms
• Connectors - RCA : unbalanced 10kOhms with sensitivity compensation
Midrange and low frequency amplifier : 60W, class AB
High frequency amplifier : 25W, class AB
Automatic standby
• Standby on : After approximately 30 minutes with no signal
• Standby off : Signal detection > 3 mV
Electrical supply
• Voltages : 220-240V (T800mAL / 250V fuse) or 100-120V (T1.6AL / 250V fuse)
• Connection : IEC plug and detachable power cord

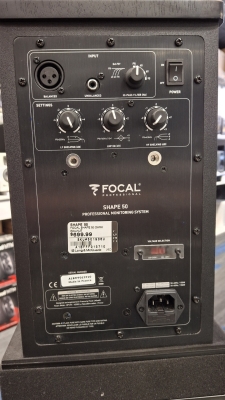

Settings
• High pass filter - Adjustable Full range 45/60/90Hz
• Bass (0 - 250Hz) - Adjustable, +/-6dB
• Midrange/bass (160Hz, Q=1) - Adjustable, +/-3dB
• High (4.5 - 35kHz) - Adjustable, +/-3dB
• Power On/Power Off - On/off switch on rear panel
Standby consumption : < 0.5W
Displays and controls : LED for power on/off and standby
Transducers
Woofer 5" : (13cm) Flax Cone
Tweeter : 1" (25mm) 'M' profile Aluminum-Magnesium
Cabinet
Construction : 0.6" (15 mm) MDF
Finish : Vinyl, real walnut and black painting
Dimensions with four rubber feet (HxWxD): 12.3 x 7.5 x 9.5" (312 x 191 x 242mm)
Weight: 20.7lb (9.4kg)
