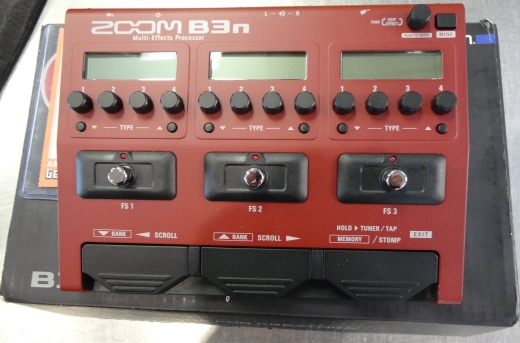

Zoom B3n Multi-Effects Pedal for Bass

The Zoom B3n Multi-Effects Pedal for bass is pre-loaded with 67 high-quality stompbox DSP effects, including 19 dynamics and filter effects, 15 overdrive and distortion effects, 17 modulation effects, 11 delay and reverb effects and more. It's easy to integrate the B3n into any live performance or studio rig. In addition to a standard 1/4" input, there's an auxiliary 1/8" stereo input for connecting smartphones or music players. There's also a dedicated headphone jack for practice, and dual outputs for mono or stereo L/R connection to bass amps, PA systems, and audio interfaces.

The B3n's newly created emulations include five classic bass amps and five matching cabinets that have been modeled to sound and respond like the real thing. To adjust the sound of each model, simply use the B3n's parameter knobs just as you would with analog gear. You can also download even more amp/cabinet combinations via ZOOM Guitar Lab software.

Create Custom Effects Chains
Chain up to seven effects, amps, and cabinets together simultaneously in any order you like to experiment with and create new sounds. You can also store up to 150 of your custom effects chains as patches.

Master Your Sound
The B3n's simple layout and controls make for faster and more intuitive editing. Its three independent LCD screens display your entire effects chain at a glance, and its tactile knobs and switches give you effortless control over adding, editing, deleting, or changing the order of effects.

Just Plug It In and Play
There's no complex setup with the B3n - just plug in and start playing. Thanks to its 68 built-in rhythm patterns, the B3n is great for both practice and solo performances. With the onboard looper, you can record and overdub phrases up to 80 seconds long, creating textured layers of sounds using the effects of your choice.

The looper, rhythm patterns, and delay effects can all be synchronized using a tap tempo function. And a built-in chromatic tuner lets you bypass the currently selected patch while tuning, or mute the signal altogether.

Features At A Glance

• 67 high-quality stompbox DSP effects
• 5 amp emulators plus 5 cabinet emulators
• Free ZOOM Guitar Lab Mac/Windows software allows for downloading of additional effects and patch management
• Use up to 7 effects simultaneously, chained together in any order
• 3 stompbox switches allow effects to instantly be brought in and out
• Intuitive user interface with 3 independent editing displays
• Onboard chromatic tuner with dedicated footswitch supports all standard bass tunings, including open and drop tunings (tuner range of 435 - 445 Hz)
• Stereo/mono looper allows recording of up to 80 seconds of phrase recording
• 68 built-in rhythm patterns that can be used in conjunction with the looper
• Tap Tempo with dedicated footswitch
• Auxiliary stereo input jack for connection of smartphones and music players
• Dual output jacks for connection to bass amps and mono or stereo PA systems
• Dedicated stereo headphone output
• Control input for ZOOM FP02M external expression pedal

Specs:

Effect types: 67
Simultaneous Effects: Up to 7x
Sampling frequency: 44.1 kHz
AD/DA Conversion: 24-bit with 128x oversampling
Signal processing: 32-bit
Frequency characteristics: 20 20 kHz +1 dB, -3 dB (10 kΩ load)
Display: 128 x 32 dot-matrix LCD (x3)

INPUTS:
Standard monaural phone jack
Rated input level: -20 dBu*
Input impedance (line): 470 kΩ
AUX IN:
Stereo mini jack (3.5 mm)
Rated input level: -10 dBu*
Input impedance (line) : 10 kΩ

OUTPUTS:
Standard monaural phone jack
Maximum output level: Line +5 dBm (with output load impedance of 10 kΩ or more)
L/Mono/Phone: Standard stereo phone jack (combined line/headphone)
Maximum output level: Line +5 dBm (with output load impedance of 10 kΩ or more)
Headphones: 15 mW + 15 mW (into 32 Ω load)
Power: AC adapter DC9V (center minus plug), 500 mA (ZOOM AD-16)
USB: USB MIDI, USB Micro-B

Dimensions: 181 mm (D) X 234 mm (W) X 58 mm (H), 7.1 in (D) X 9.2 in (W) X 2.2 in (H)
Weight: 1.28 kg / 2.8 lbs

Accessories: Operation manual, Zoom AD-16 AC adapter
