Sennheiser XS1 Wireless Set w/me3 Headset Mic
Additional Photos:
FEATURES
• Lightweight headmic and compact bodypack transmitter
• Antenna-switching diversity reception
• Integrated antennas
• Automatic frequency management and synchronization via remote channel for easy setup
• Selectable UHF frequencies within a large bandwidth
• Up to 10 compatible channels

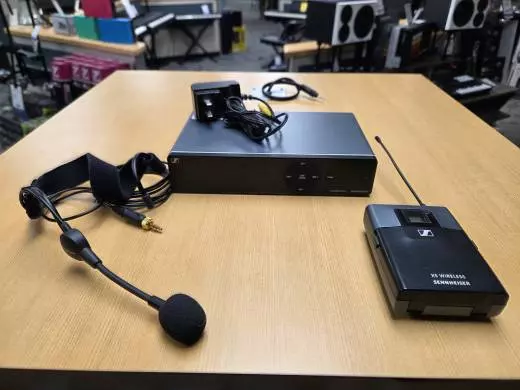

WHAT'S IN THE BOX?
1 receiver EM-XSW 1
1 headset microphone ME 3-II
1 bodypack transmitter SK-XSW
1 power supply NT 12-5 CW
2 AA batteries
TECHNICAL DATA
Receivers
Dimensions: approx. 200 x 42 x 127 mm
Weight: approx. 340g
Power supply: 12 V DC nom. / 300 mA
AF frequency response: 50 to 16,000 Hz (3 dB)
Transmitter
Dimensions: approx. 71 x 96 x 28 mm
Weight: approx. 95g
Operating time: Approx. 10 hrs
Power supply: 2 AA size batteries, 1.5 V
Adjustment Range: Transmitter 0 to -30 dB, adjustable in 10 dB steps
Microphone Condenser
THD, total harmonic distortion: =< 0.9%
Pick-up pattern: Cardioid
Signal-to-noise ratio: > or equal to 103 dBA
RF output power: 10 mW
Switching bandwidth: up to 24 MHz
Modulation: Wideband FM
Output voltage: 1/4" (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu
Housing: Rugged ABS housing
Frequency: 8 frequency banks, each with up to 10 factory-preset channels
Sensitivity: < 3 μV at 52 dB(A)rms S/N
SPL for peak deviation: 150 dB
Squelch adjustable from: 3 dBμV to 28 dBμV (combined with pilot tone)
Synchronization: 2.4 GHz, Low Power OQPSK (only active during synchronization)
Input sensitivity: 1.5 mV / Pa
Audio adjustment range: 45 dB, adjustable in 5-dB steps
Line / Mic level: 20 dB, switchable
