Elektron Analog Heat Tabletop Stereo Analog Sound Processor
![Analog Heat Tabletop Stereo Analog Sound Processor](https://cdn.long-mcquade.com/files/80364/lg_5aa63798fae7516e96134484aefc1165.webp)
Additional Photos:
![Analog Heat Tabletop Stereo Analog Sound Processor](https://cdn.long-mcquade.com/files/80364/md_c2e9034c4a893b3ec59a073597d45b47.webp)
![Analog Heat Tabletop Stereo Analog Sound Processor](https://cdn.long-mcquade.com/files/80364/md_95954aa4f3d3136b05d8d6871dc5c8f5.webp)
Product Videos :

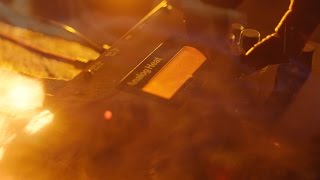

![Analog Heat - Stereo Analog Sound Processor](https://img.youtube.com/vi/zbzamlkEzMo/hqdefault.jpg)
Add sparkly brilliance, or grimy roughness, to any sound source. Samplers, drum machines, synths, the master bus, you name it. Analog Heat is a fiery furnace destined to make your music glow.
Analog Heat can also function as a 2 in/2 out sound card, even while processing DAW audio, perfect for the traveling musician. With Overbridge your Analog Heat can be used as a VST/AU effect plugin. The unit also features MIDI In, Out, and Thru with DIN sync and connects to your computer via high-speed USB 2.0.
Specifications:
Sound processing
• 8 Stereo analog distortion circuits
• 1 Stereo analog multi-mode filter (7 filter types)
• 1 2 band adaptable stereo analog EQ
• 1 Assignable envelope generator/envelope follower
• 1 Assignable LFO
Storage
• 128 user preset slots
Hardware
• 12232 pixel backlit LCD
• MIDI In/Out/Thru with DIN Sync out
• 2 1/4″ balanced audio out jacks
• 2 1/4″ balanced audio in jacks
• 1 1/4″ stereo headphones jack
• 2 1/4″ CV/Expression pedal input jacks
• 48 kHz, 24-bit D/A and A/D converters
• Flash-EEPROM upgradable OS
• Hi-speed USB 2.0 port
Audio outputs
• Headphones out level: +22 dBu peak
• Headphones output impedance: 55 Ω
• Impedance balanced main outputs level: +22 dBu peak
• Main outputs impedance: 440 Ω unbalanced
• Sound card S/N Ratio: 111 dBFS (20-20,000 Hz)
Audio inputs
• Balanced audio input level: +22 dBu peak
• Audio input impedance: 39 kΩ
• Sound card S/N Ratio: 112 dBFS (20-20,000 Hz)
Control inputs
• Input level: -5 V +5 V
• Accepts CV, Expression pedals, Foot switches
Physical specifications
• Sturdy steel casing
• Dimensions (WxDxH): 215 x 184 x 63 mm (8.5 x 7.2 x 2.5")
• Weight: 1.5 kg (3.3 lbs)
Miscellaneous
• Overbridge support (Overbridge sold separately)
• Ableton Live 9 Lite license included
