Rupert Neve Designs RNHP Precision Headphone Amplifier
Additional Photos:

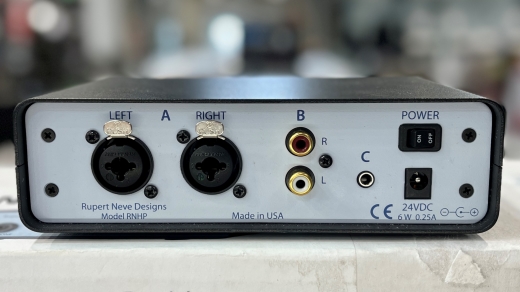

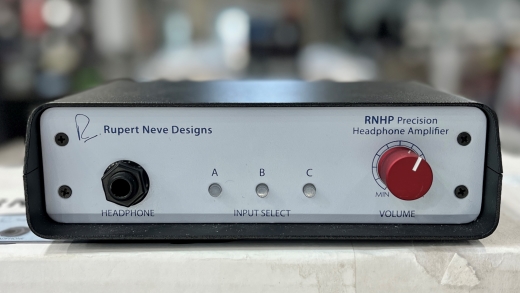

Based on the headphone output circuit in the 5060 Centerpiece Desktop Mixer, the RNHP is a dedicated 24V reference-quality headphone amplifier with specifically-calibrated +4dBu balanced line, unbalanced RCA and 3.5mm (1/8") inputs, housed in a rugged VESA-mountable steel chassis. With effortless, wide-open sonic performance and the ability to drive any pair of headphones without compromise, the RNHP allows you to perform, mix and enjoy your music with a new level of clarity.
Features
• Wide-open, extremely detailed sound quality
• Dedicated Power
• Near-zero output impedance
• Precision Stereo Potentiometer
• Professional Line Input
• RCA Input
• 3.5mm Input
• VESA Mount
• Steel Clamshell Chassis
• 24V DC Input
Specifications
• Maximum Input Levels: "A" XLR I/P: +22.8 dBu @1kHz, "B" RCA I/P: +14.7dBu @1kHz, "C" 3.5mm I/P: +3.3dBu @1kHz
• Output Power: As measured with typical headphones, Z=44 ohms: 3.617 VAC RMS @1kHz = 300mW RMS
16 ohm typical Load: 1.933 VAC RMS @1kHz = 230mW RMS
150 ohm typical Load: 5.108 VAC RMS @1kHz = 175mW RMS
• Output Impedance: .08 ohms @ 1KHz, 16-150 ohm load, 0dBu input
• Frequency Response: +/- .2dB from 10Hz to 120KHz
• Noise: Measured with typical headphones, Z=44 ohms, BW 22Hz 22kHz, "A" XLR Input: -101.9dBV, "B" RCA Input: -100.9dBV, "C" 3.5mm Input: -88.8dBV
• Power Supply Requirements: 24VDC @ 0.25Amp (6 watt) minimum.
Q & A
Reviews
Rental rates
This product is normally available for rental. Please contact your preferred location for further information.
1 Day from $14.00
1 Week $27.00
1 Month $54.00
