Tascam 16x8 Channel USB Audio Interface / Mic Preamp

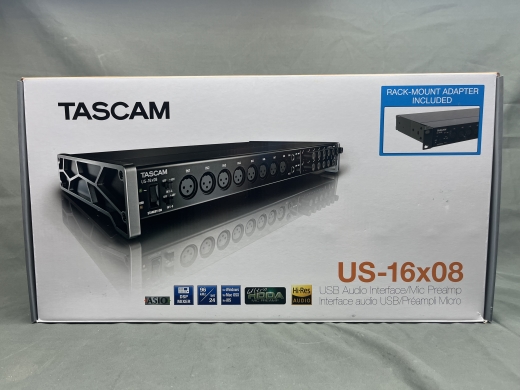

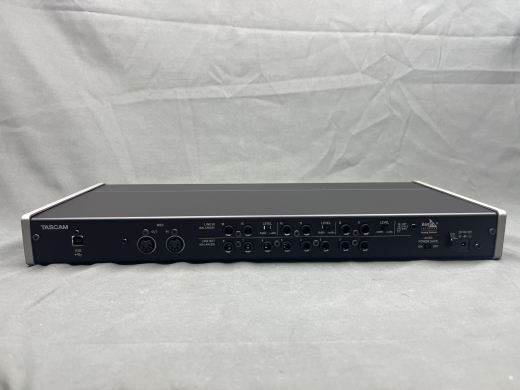

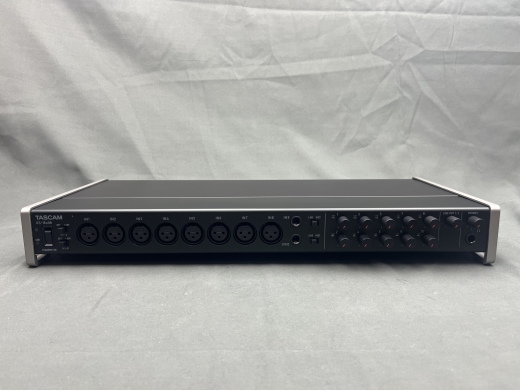

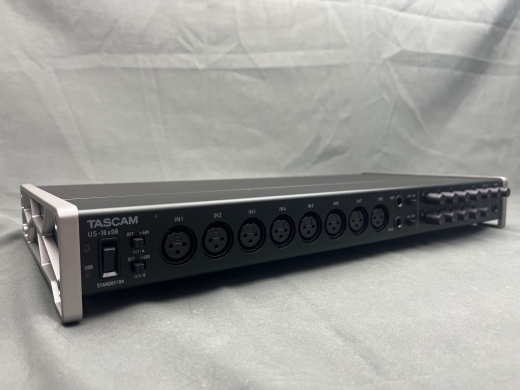

Additional Photos:
The TASCAM US-16x08 captures 16 mic and line inputs to your computer with clear sound quality and advanced features to manage big sessions. Eight Ultra-HDDA microphone preamps deliver the cleanest and quietest operation in their class while delivering up to 56dB of gain. An additional eight line inputs are provided, two of them switchable to instrument level for direct guitar or bass recording. Eight balanced line outputs are also available, two with a level control on the front panel for monitoring.
Built into the US-16x08 is a DSP Mixer for low-latency digital mixing. Each channel has four-band EQ and compression for polished-sounding monitor mixes. In addition to interface mode, the US-16x08 can be used stand alone as a standalone mic preamp. Mac and Windows drivers are provided, as well as USB Class Compliant 2.0 drivers for tablets like Apple's iPad. MIDI input and output are also available on the rear panel.
Whether using the ergonomically-designed angled desktop stand or mounting with the included rack ears, the US-16x08 includes analog I/O for almost any music recording application.
Ultra-HDDA Mic Preamps for Clear Audio Quality from All of Your Mics
TASCAM's own Ultra-HDDA mic preamps, with a gain range of 56dB, are ideal for any type of mic dynamic, condenser, or ribbon. With preamp performance well beyond any interfaces in their price range, the Ultra-HDDA preamps on the US-16x08 makes your tracks sound like a record.
TASCAM's Ultra-HDDA (High Definition Discrete Architecture) mic preamp design achieves an incredible EIN rating of -125 dBu, meaning their noise level is practically below the range of hearing. Other impressive specs include a signal-to-noise ratio of 100 dB, out-specing anything in its price range.
The Ultra-HDDA mic preamps and line inputs offer 20dB of headroom for distortion-free recordings of percussive, high SPL instruments like drum tracks.
16 analog inputs to record a full drumset, instruments, and vocals at the same time
Eight XLR mic inputs and eight TRS inputs can be used simultaneously for 16-track live recordings. Capture every detail of live performances or rehearsals for later mixdown.
The eight XLR mic inputs have switchable +48V phantom power to use up to 8 condenser mics at the same time. The two front panel TRS line inputs are switchable between instrument level and line level input with adjustable gain. An additional six TRS line ins on the rear of the unit are switchable between -10dB and +4dB. All of the jacks support balanced or unbalanced 1/4" signals.
Advanced Digital Processing Includes an Advanced DSP Mixer and All-New USB Driver
Digital processing features like the DSP Monitor Mixer and advanced USB drivers make sessions with the US-16x08 comfortable for the musicians and engineer. The DSP Mixer includes processing for a polished-sounding headphone mix without latency delay from your DAW software, fueled by a Blackfin DSP processor. And new drivers, re-written from the ground up, provide beter compatibility and performance on Mac, Windows and iPad recording systems.
High Resolution Recording - Up to 96kHz/24-bit
The converters and electronics on the US-16x08 allow you to record at audio resolutions up to 96kHz/24-bit for detailed acoustic productions. No matter what your session's sample rate is set for, the high-quality analog and digital design make your recordings sound their best.
Class-Compliant Drivers for use with iPad and Other Tablets
The US-16x08 is built with class-compliant drivers built into the units. Not only does this mean that they can be used with many computers without first installing a driver, they also open the possibilities of with tablets such as Apple's iPad.
Rackmount Ears and Hex Keys Included
You can either use the rack ears for rackmount installations.
FEATURES AT A GLANCE
• Ultra-HDDA (High Definition Discrete Architecture) mic preamps with −125dBu EIN
• Eight Ultra-HDDA mic pres with XLR connectors, eight TRS inputs
• Standalone mode for use as an independent mic preamp
• Up to 96kHz/24-bit recording
• Support for Windows and Macintosh
• USB 2.0 computer connection
• Connect with iPads and other iOS devices via Class Compliant drivers
• +48V phantom power available for all microphone inputs
• High-impedance inputs available
• 56 dB of preamp gain, ideal for dynamic or ribbon microphones
• Tough metal casing for durability
• Angled design provides excellent usability on a desktop
• Eight TRS outputs
• Standard TRS headphones output jack with 70mW/ch output power
• Separate controls for line and headphones output volumes
• MIDI input and output
• Low-latency monitoring via on-board DSP mixer
• DSP mixer with 4-band EQ and compression on each input channel
• Digital Patch bay allows outputs to be assigned freely
• Scenes can store DSP mixer settings (up to 10 scenes can be stored and named)
• USB class compliant 2.0 support
• Confirmed operation with major DAW software (SONAR, ProTools, Cubase, Live, Studio One, Garage Band)
• RoHS certified
• Dedicated AC adapter included
US-16X08 SPECIFICATIONS
Sampling frequency: 44.1k/48k/88.2k/96kHz
Quantization bit rate: 16/24bit
Analog audio inputs:
MIC IN(IN 1-8)
Connector: XLR-3-31(1:GND, 2:HOT, 3:COLD), BALANCED
Input impedance: 2.4k ohms
Nominal input level:
- GAIN:MAX: -68dBu (0.0003Vrms)
- GAIN:MIN: -12dBu (0.195Vrms)
Maximum input level: +8dBu (1.947Vrms)
Gain: 56dB
INST IN (IN 9-10)
Connector: 6.3mm(1/4") TS-jack(T:HOT, S:GND), UNBALANCED
(When set to "INST" at LINE/INST switch)
Input impedance: 1M ohms or more
Nominal input level:
- GAIN:MAX: -57dBV (0.0014Vrms)
- GAIN:MIN: -12dBV (0.251Vrms)
Maximum input level: +8dBV (0.2512Vrms)
Gain: 45dB
LINE IN (IN 9-10)
Connector: 6.3mm(1/4") TRS-jack(T:HOT, R:COLD, S:GND), BALANCED (When set to "LINE" at LINE/INST switch)
Input impedance: 10k ohms
Nominal input level:
- GAIN:MAX: -41dBu (0.0069Vrms)
- GAIN:MIN: +4dBu (1.228Vrms)
Maximum input level: +24dBu (12.182Vrms)
Gain: 45dB
LINE IN (IN 11-16)
Connector: 6.3mm(1/4") TS-jack(T:HOT, S:GND), UNBALANCED
(When set to "-10dBV" at LEVEL switch)
Input impedance: 10k ohms or more
Nominal input level: -10dBV (0.3162Vrms)
Maximum input level: +10dBV (3.162Vrms)
LINE IN (IN 11-16)
Connector: 6.3mm(1/4") TRS-jack(T:HOT, R:COLD, S:GND), BALANCED (When set to "+4dBu" at LEVEL switch)
Input impedance: 10k ohms
Nominal input level: +4dBu (1.228Vrms)
Maximum input level: +24dBu (12.182Vrms)
Analog audio outputs:
LINE OUT (LINE OUT 1-8)
Connector: 6.3mm(1/4") TRS-jack(T:HOT, R:COLD, S:GND), BALANCED
Output impedance: 100ohms
Nominal output level: +4dBu (1.228Vrms)
Maximum output level: +24dBu (12.177Vrms)
PHONES
Connector: 6.3mm(1/4") stereo phone jack
Maximum output level: 70mW+70mW or more (THD+N 0.1% or less, 32ohms loaded)
MIDI IN / OUT
Connector: Din 5-pin
Format: Standard MIDI format
USB
Connector: USB B type 4-pin
Format: USB2.0 HIGH SPEED mass storage class
Power: Dedicated AC adapter (GPE248-120200-Z, included)
Power consumption: 12W
Dimensions (W x H x D): 445mm x 59mm x 219mm
/ 52" x 2.32" x 8.62"
Weight: 2.8kg / 6.11lb
Operating temperature: 5 to 35 degrees C
Accessories: Rack mount adapter, USB cable, User's manual, warranty card, dedicated AC adapter (GPE248-120200-Z)
Audio performance
Frequency response:
LINE OUT(BALANCED)
• 44.1k/48k: Hz20Hz to 20kHz, +/-0.3dB(JEITA)
• 88.2k/96k: Hz20Hz to 40kHz, +/-0.3dB(JEITA)
THD: 0.008% or less
S/N ratio: 100dB or more
Crosstalk: 100dB or more
EIN: -125dBu or less
COMPUTER SYSTEM REQUIREMENTS:
Windows
OS: Windows 7(32-bit SP1, 64-bit SP1), Windows 8.0(32-bit, 64-bit), Windows 8.1(32-bit, 64-bit)
Compatible computers: Windows-compatible computer with a USB 2.0 port
CPU type/speed: Dual core/2 GHz or faster
Memory: 2GB or more
DRIVER: ASIO2.0, WDM(MME)
Macintosh
OS: OS X Mountain Lion(10.8), OS X Mavericks(10.9)
Compatible computers: Apple Macintosh computer with a USB 2.0 port
CPU type/speed: Dual core/2 GHz or faster
Memory: 2GB or more
DRIVER: Core Audio, Core MIDI
iOS
OS: iOS 7
