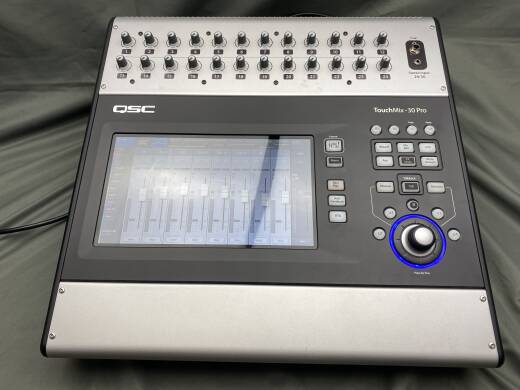

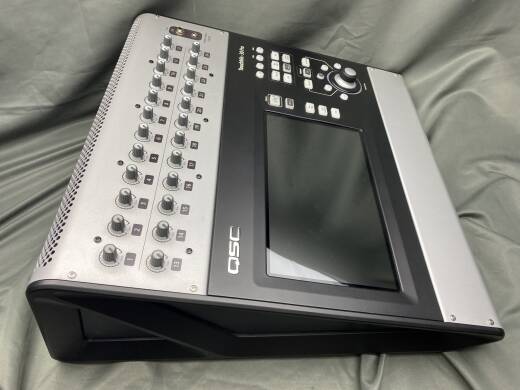

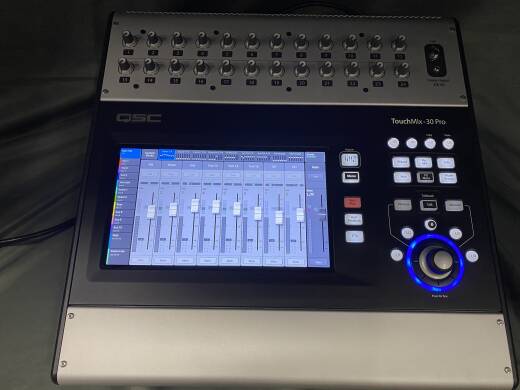

QSC Touchmix-30 Pro - 32-Channel Professional Digital Mixer with Touchscreen
Additional Photos:
Your Price: $3,499.00 CDN
or from $162 CDN/mo
A remarkable new standard for performance in a compact digital mixer, the TouchMix-30 Pro has the features and functionality that will satisfy the most demanding professional while also providing an intuitive workflow that delivers great results, quickly and easily, to users at every level of experience. Perfect for production professionals, musicians and bands as well as live performance venues, its 32 mixing channels (24 Mic/Line, 6 Line, Stereo USB) and 16 outputs offer tremendous signal management flexibility for a wide range of applications.
TouchMix "Pro" Features:
Far more than simply a higher channel count version of the TouchMix-8 and TouchMix-16, The TouchMix-30 Pro offers a host of additional, new Pro features including:
• Large (10-inch) multi-touch touchscreen offers more on-screen information while also providing greater hands-on control
• Anti-Feedback and Room Tuning Wizards simplify complex equalization tasks
• Two real-time analyzers (RTA) provide instantaneous display of channel tonal balance and room response
• Copy and Paste function easily duplicates mixes, channels, EQ, dynamics and more.
• Touch-and-route Patch Matrix for easy "multing" and rearrangement of inputs
• Eight sub-groups with 6-band full parametric EQ, variable high- and low-pass filters and limiter may be linked for stereo
• 32-channel direct-to-hard drive record/playback capture and recall performances without the need for a computer
• 32-Channel DAW interface with Mac computers allows for bidirectional I/O with popular workstation software
• MP3 playback direct from USB
More of Everything
Additionally, the TouchMix-30 Pro offers even more of what you would expect and demand from a TouchMix Series mixer:
• 24 class-A microphone preamps deliver pristine, studio-quality audio
• Over 120 live instrument, microphone and other audio source presets created in live environments provide mix-ready channel settings
• All outputs feature 1/3 octave graphic equalization and 6-band parametric EQ plus limiters, delay and 12-band notch filters
• 14 mono mixes may be paired for stereo while two pairs of Auxes can drive wired in-ear monitors (IEM) directly
• Six stereo effects processors plus pitch-correct offer studio-grade signal enhancements, without sacrificing Auxes or additional channels
Specs:
Inputs
32 Total
24 Mic/Line (4 with XLR/TRS combo);
6 Stereo Balanced (TRS); 1 1/8" (3.5 mm) stereo;
2 Stereo USB MP3 playback
Talkback mic w/ 48V

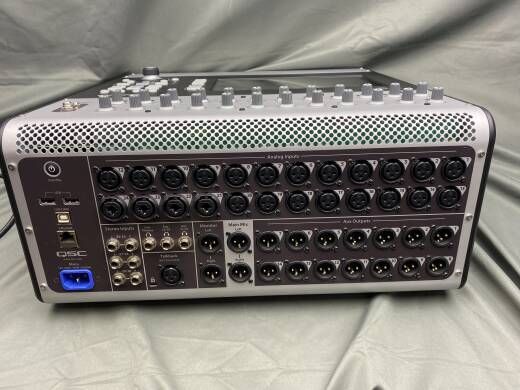

Outputs
Main L/R (XLR)
14 Mono Aux mixes (XLR) can be paired stereo
3 Stereo Aux, (TRS)
2 Monitor L/R (XLR)
Display
10" (254 mm), 1024 x 600 pixel, color TFT, capacitive multi-touch sensing
USB Direct to Hard Disk Recording/Playback
32x32 channels
DAW USB Computer Recording/Playback
32 x 32 (Core Audio, MAC OS only)
WiFi Control
External Control: TouchMix Control App for iPad and Android tablets controls all mixer functions via Wi-Fi.
Wi-Fi: USB Wi-Fi dongle or Wi-Fi router
RTA - yes
Effects
6 DSP Engines (Reverb, Delay, Chorus, Pitch Shift)
Wizards
Anti-Feedback, Room Tuning, Gain, Effects
Power Requirements
100-240 VAC, 50-60 Hz
Sampling Frequency
Selectable 44.1 kHz or 48 kHz
THD
< 0.005%, +4 dBu; 20 Hz-20 kHz, unity gain, any input to any output
Frequency Response
20 Hz-20 kHz +/-0.5 dB, any input to any output
Dimensions
7.5 in x 16.9 in x 18.1 inch
19 cm x 42.9 cm x 46 cm
Weight
17.5 lb (7.9 kg)
TouchMix "Pro" Features:
Far more than simply a higher channel count version of the TouchMix-8 and TouchMix-16, The TouchMix-30 Pro offers a host of additional, new Pro features including:
• Large (10-inch) multi-touch touchscreen offers more on-screen information while also providing greater hands-on control
• Anti-Feedback and Room Tuning Wizards simplify complex equalization tasks
• Two real-time analyzers (RTA) provide instantaneous display of channel tonal balance and room response
• Copy and Paste function easily duplicates mixes, channels, EQ, dynamics and more.
• Touch-and-route Patch Matrix for easy "multing" and rearrangement of inputs
• Eight sub-groups with 6-band full parametric EQ, variable high- and low-pass filters and limiter may be linked for stereo
• 32-channel direct-to-hard drive record/playback capture and recall performances without the need for a computer
• 32-Channel DAW interface with Mac computers allows for bidirectional I/O with popular workstation software
• MP3 playback direct from USB
More of Everything
Additionally, the TouchMix-30 Pro offers even more of what you would expect and demand from a TouchMix Series mixer:
• 24 class-A microphone preamps deliver pristine, studio-quality audio
• Over 120 live instrument, microphone and other audio source presets created in live environments provide mix-ready channel settings
• All outputs feature 1/3 octave graphic equalization and 6-band parametric EQ plus limiters, delay and 12-band notch filters
• 14 mono mixes may be paired for stereo while two pairs of Auxes can drive wired in-ear monitors (IEM) directly
• Six stereo effects processors plus pitch-correct offer studio-grade signal enhancements, without sacrificing Auxes or additional channels
Specs:
Inputs
32 Total
24 Mic/Line (4 with XLR/TRS combo);
6 Stereo Balanced (TRS); 1 1/8" (3.5 mm) stereo;
2 Stereo USB MP3 playback
Talkback mic w/ 48V
Outputs
Main L/R (XLR)
14 Mono Aux mixes (XLR) can be paired stereo
3 Stereo Aux, (TRS)
2 Monitor L/R (XLR)
Display
10" (254 mm), 1024 x 600 pixel, color TFT, capacitive multi-touch sensing
USB Direct to Hard Disk Recording/Playback
32x32 channels
DAW USB Computer Recording/Playback
32 x 32 (Core Audio, MAC OS only)
WiFi Control
External Control: TouchMix Control App for iPad and Android tablets controls all mixer functions via Wi-Fi.
Wi-Fi: USB Wi-Fi dongle or Wi-Fi router
RTA - yes
Effects
6 DSP Engines (Reverb, Delay, Chorus, Pitch Shift)
Wizards
Anti-Feedback, Room Tuning, Gain, Effects
Power Requirements
100-240 VAC, 50-60 Hz
Sampling Frequency
Selectable 44.1 kHz or 48 kHz
THD
< 0.005%, +4 dBu; 20 Hz-20 kHz, unity gain, any input to any output
Frequency Response
20 Hz-20 kHz +/-0.5 dB, any input to any output
Dimensions
7.5 in x 16.9 in x 18.1 inch
19 cm x 42.9 cm x 46 cm
Weight
17.5 lb (7.9 kg)
Q & A
Question: Is there a case with this unit?
- asked on Jul 5, 2024
- asked on Jul 5, 2024
Answer: There is no case included but QSC does make a tote bag for it that you can order separately from us for $195. There is also a flight case made by Odyssey.
- answered by David Callender, Brantford, Ontario
- answered by David Callender, Brantford, Ontario
Reviews
18.219.209.144
Mozilla/5.0 AppleWebKit/537.36 (KHTML, like Gecko; compatible; ClaudeBot/1.0; [email protected])
Perfect for us.....except. 2 of 2 customers found this review helpful
Features
Quality
Value
Overall
Product Experience I own it
Closest Store Calgary Chinook, Alberta
I can't say enough good things about this mixer regarding quality and features.
ALSO, and this is a big also, the recent firmware upgrade is a nightmare. It requires Android 11 on devices to have remote access for our individual monitors, etc. Drummer's cell phone and keyboard player's tablet have this version which would no longer worked with the board's firmware version 2.0.
So they are now OK but the bass player, (me), and the guitar player have older tablets which can't upgrade to Android 11 so we are hooped! Version 3.0 of the firmware is not backwards compatible with older Androd versions! I can't believe that a reputable company like QSC would do this on purpose.
Our only hope is that enough excrement is raised by owners and users to wake up the brainiac engineers at QSC. We shouldn't have to fork out more money to buy Android 11 tablets to make this great board totally functional again.
Posted by Tait on Apr 21, 2023
QSC Touchmix -30 Pro Love It!!! 0 of 0 customers found this review helpful
Features
Quality
Value
Overall
Product Experience I own it
Closest Store Markham, Ontario
So simple to use it can make a novice sound like a pro, but with so many pro features that someone who really knows what they're doing won't be disappointed. I'm the drummer for our band and I bought this for our live performances, but we also use it to record. (Records up to 32 individual tracks direct to drive, or to your DAW). Can be completely controlled by multiple tablets, and individual monitor mixes can be controlled from your phone. What's not to love?
Posted by S.K.S. Perry on Mar 4, 2022
Touch Mix 30 1 of 1 customers found this review helpful
Features
Quality
Value
Overall
Product Experience I own it
Closest Store Port Coquitlam, British Columbia
Absolutely fantastic unit !! Everything Tim just said (above my review) and more. Perhaps the last mixer our band will ever need. Does everything we need it to do and more. 17.5 lbs and overbuilt !! Records the gigs.
Posted by Ron Logan on Nov 10, 2019
Touchmix 30 Pro 2 of 2 customers found this review helpful
Features
Quality
Value
Overall
Product Experience I own it
Closest Store Edmonton South, Alberta
This is a FORMIDABLE piece of equipment that is not formidable to operate. I use this for my single and the 6 pc band I play keys in. It is beautifully designed. The software is brilliant. With 14 auxes and wireless networking every member of the band gets to mix their monitor with their iPad or Android Tab. I use pitch transposing for comedic effect on occasion, and this unit makes short work of it. It has literally replaced an entire rack of gear. Graphic eqs, parametric, reverb/delays/etc. I can tune a room in seconds. Brilliant feedback killing. Rerouting inputs a breeze. We don't have a soundman. I do double duty on keys, and I am not taxed. This is both as deep and as simple a unit as you want it to be. Every function can also be operated by footswitch. Love this thing. Tim Becker
Posted by Tim Becker on Nov 3, 2018
