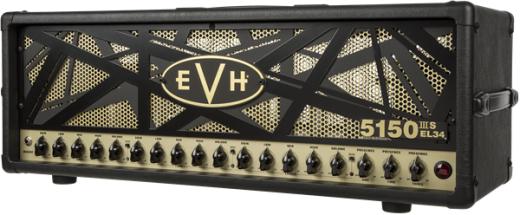

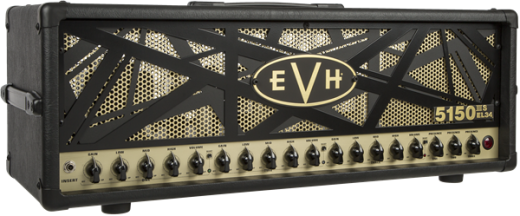

EVH 5150 IIIS 100W EL34 Head - Black
Additional Photos:
The EL34 power tubes deliver smoother contours, and greater sag and saturation that evoke a more modern "British" sound, all with more sustain and versatility than ever before.
Channel one boasts an even finer clear-and-compressed clean tone, while channels two and three now possess even more compression and saturation. Other features include a rear-panel resonance control section that tailors low-frequency response for each channel and a bias testing and adjustment port that allows you to fine-tune the tubes with more ease than ever.
Wrapped in an elegant gold and black EVH motif, the 5150III®S EL34 Head allows you to experience classic EVH EL34 tone.
Specifications
ElectronicsControls: Gain, Low, Mid, High, Volume, Channel Select, Presence and Resonance for Each Channel
Control Panel: Gain, Low, Mid, High, Volume, Channel Select, Presence and Resonance for Each Channel
Inputs: One - 1/4"
Line Out: One - 1/4"
Channels: Three - (Clean, Crunch and Lead)
Effects Loop: 1/4" (Send/Return)
Connection Type: 7-Pin DIN
Other Connections: Bias Ports
Voltage: 120V (Also Available in 100V, 110V, 220V, 230V, 240V)
Wattage: 100 Watts
Hardware
Control Knobs: Black Chicken-Head Style Pointer
Amplifier Covering: Black Textured Vinyl
Cabinet Material: White Birch
Grille Cloth: Perforated Steel Front and Rear Panel
Handle: Molded Plastic Strap with Nickel-Plated Caps (1 Top & 2 Sides)
Speaker Jack: Two - 1/4" Parallel
Front Panel: Gold Anodized
Speakers
Total Impedance: 4, 8, or 16 ohms
Tubes
Power Tubes: 4 x JJ EL34 Apex Matched
Preamp Tubes: 8 x JJ ECC83S (12AX7)
Rectifier: Solid State

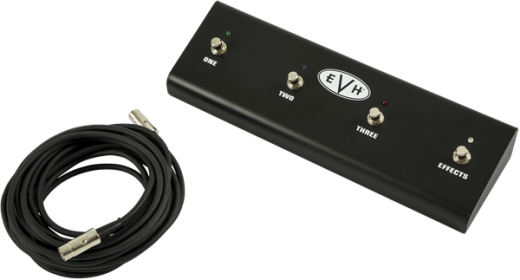

Includes a 4 Button Channel Footswitch
