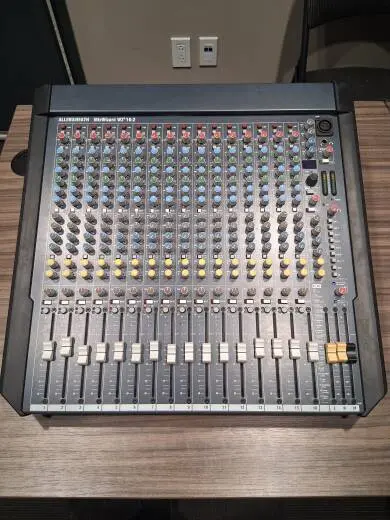

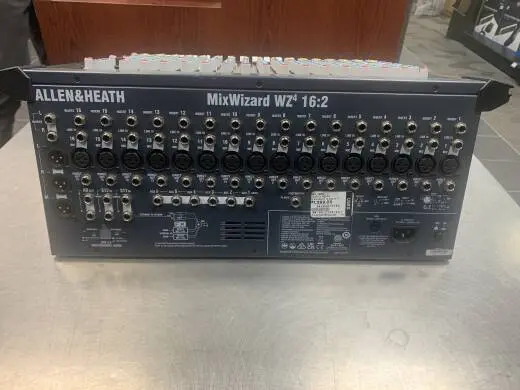

Allen & Heath MixWizard WZ4 16:2 Mixer with Effects
Additional Photos:
WZ4 16:2 features Allen & Heath's acclaimed 4 band EQ with 2 sweepable mids, high quality 100mm faders, 6 aux sends, 12 segment bargraph metering and their QCC connector system for easy desktop, rack or flightcase mounting.
New features for this 4th generation MixWizard console include two newly designed digital FX engines with 20 studio quality FX presets and EQ in/out switching.
If you're looking for professional grade, all-purpose analogue mixers in a compact, rack mountable frame, the MixWizards continue to set the bar.
Feature Summary
• 19" Rack mountable
• 16 mic/line inputs with balanced XLR/TRS jack, insert and direct output
• 100mm faders
• 4 band EQ with 2 swept mids
• 6 Aux sends 2x pre fade / 2x switched / 2x post fade*
• 2 Stereo returns
• Dedicated mono output fader can be switched to provide an L+R mono feed for a centre or fill speaker, or sub bass feed
• Independent A-B output for 2-track recording, monitor foldback, speaker fills etc
• Tri-colour, 12 segment bargraph metering
• Twin FX engines with 20 studio quality FX presets
• +48V Phantom Power
• Signal and Peak LEDs
• Lamp socket
• Footswitch connector (mutes/unmutes the ST1 FX Return)
*Can be reconfigured with internal jumpers
Specs:
Maximum output level
XLR: +26dBu into 600 ohms max load
Jack: +21dBu into 2k ohm max load
Internal headroom
Channels: +21dB
Mix: +23dB
Meters: 3 colour LED, quasi peak response
Sensitivity: 0VU = +4dBu at XLR output
Master meters: 12 segment -30 to +16dB
Channel meters: 2 segment -12, +16dB (5dB before clip)
Frequency response: 10Hz to 30kHz +/-0.5dB
THD+n at +10dBu: 1kHz Channel to mix out < 0.004%
Power supply: 100-240V, 50/60Hz auto sensing, IEC input
Power consumption: 45W max
Mains fuse: T630mA L 20mm
Free standing dimensions: W 507mm (20") x D 530mm (20.9") x H 194mm (7.7")
Rack mounted (Underside connectors): W 483mm (19") x D 122mm (4.8") x H 444mm (17.5") 10U
Rack mounted (Rear connectors): W 483 (19") x D 193 (7.6") x H 497 (19.6") 11.2U
Weight: 13kg (28lbs)
