Gibson 2016 Les Paul Voodoo Ltd in Juju
Additional Photos:
Features
• Tuners: Black chrome Grover kidneys
• Nut: Black tektoid nut
• Fingerboard: Richlite fingerboard with red dot inlays
• Body and top: Swamp ash body and top with Voodoo custom finish
• Neck: Les Paul rounded neck profile
• Pickups: Voodoo humbuckers
• Hardware: Black chrome hardware
• Controls: Classic Gibson controls
• Carrying case: Hardshell Gibson Case
Details:
Top
Wood Species: Ash
Pieces: 2
Grade: A
Back
Wood Species: Ash
Pieces: 1-2
Density: A
Weight Relief: 9 Hole
Neck
Wood Species: Maple
Pieces: 1
Truss Rod: Les Paul
Profile: Rounded
Thickness at Fret 1: 0.800"
Thickness at Fret 12: 0.875"
Average Weight: 1.2 lbs
Peg Head
Type: SP1-B
Inlay: Blank
Peg Head Binding: None
Logo: None
Silkscreen: RED "Gibson" & "Les Paul Model"
Headstock Angle: 17 degrees
Neck Fit
Joint Angle: 5.0 degrees
Joint Angle Tolerance: 0 deg 0 min 15 sec
Type: Mortis and Tenon
Adhesive: Franklin Tightbond 50
Gauges Used: Pitch Gage
Nut
Style: Black
Material: TekToid
Width: 1.695
Slots: E: 0.046"'A: 0.036"D: 0.026'G: 0.016" B: 0.011" e: 0.009"
Fingerboard
Wood Species: Composite
Pieces: 1
Shade: Dark
Radius: 12 degrees
Frets: 22
Nut/End of Board: 1.695" @ nut, 2.260" @ end of board
Scale: 24.75
Binding: None
Side Dots (Color): Red
Fingerboard Inlays: Dot
Material: Red Arcylic
Dimensions: 0.249"
JuJu
Color Code: JJ
Surface Texture: 30 Sheen Satin
Filler: Black
Sealer: 1.0 - 1.5 mils
Top: JuJu
Top Coat: Satin Lacquer / 30 Sheen, 3-4 mils
Scraped: Fingerboard sides and Nut
Pickups: Voodoo double-slug Rhythm & Lead w/Alnico II Magnets
Pots: All 500k non-linear

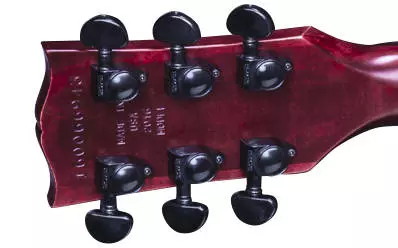

Tuning Keys
Style: Grover Kidney
Material: Zamak
Tuning Ratio: 14:01
Gear Type: worm
What is allowable turn: +/- 4 degrees
Plating specs: Black Chrome
Bridge
Style: Tune-o-matic
Material: Zamac
Plating Specs: Black Chrome
Dimensions of String Slots
E:0.046"'
A:0.036"
D:0.026'
G:0.016"
B:0.011"
e:0.009"
Tailpiece
Style: Stop Bar
Material: Zamak
Plating Specs: Black Chrome
Bits & Pieces
Output Jack: 1/4" mono
Jack Plate Style: Les Paul
Material: ABS Black
Strap Buttons Material:Anodized Aluminum
Plating Specs: Black
Pick Guard: None
Truss Rod CoverStyle:Satin Black, Blank
Knobs Style: Black Top Hat w/ Red Numbers
Control & Switch Plates: Les Paul SS infused Polycarbonate
Switch WasherStyle: Black w/ Red stamp
Trim Rings Style: Low/High Black Humbucker
Case Style: Voodoo Harshell
Color: Red Snake Skin
Tools: Truss Rod Wrench
Manual: Gibson USA Owner's
