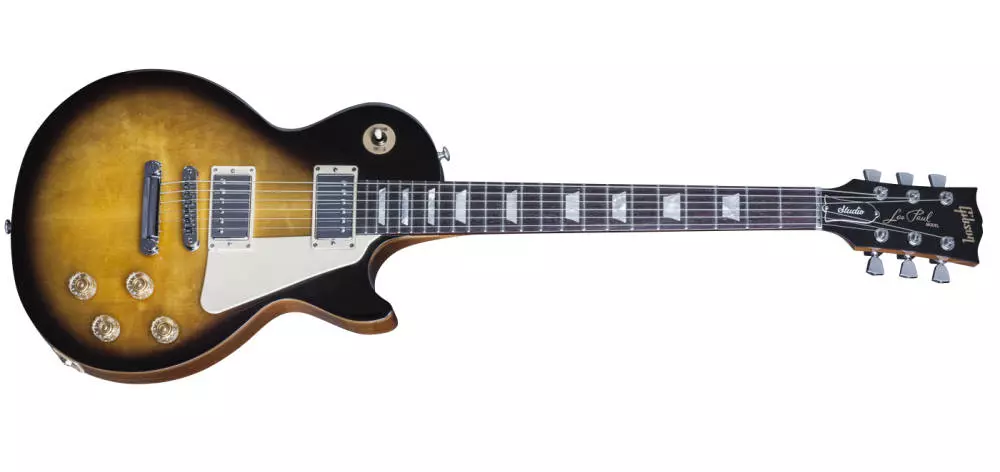

Gibson 2016 Les Paul Studio HP - Vintage Sunburst, Chrome Hardware
Additional Photos:
• Tuners: Next-Generation Gibson G FORCE
• Switch: Solid, positive feel with quiet operation
• Bridge: Titanium saddles
• Carrying case: High Performance Hard Shell Case
• Neck width: Soloist neck width
• Inlays: Mother of pearl inlays
• Pickups: 490R and 498T humbuckers
• Volume Controls: Push/Pull Coil-Tappers
• Jack: Gold plated multi contact jack
• Neck heel: Fast-access heel
• Nut: Titanium adjustable zero-fret nut
Details:
Top
Wood Species: Maple
Pieces: 2
Grade: C
Binding: None
Back
Wood Species: Mahogany
Pieces: Multi
Density: Medium
Binding: None
Body Contour Carve: Classic
Neck
Wood Species: Mahogany
Pieces: 1
Truss Rod: Standard
Profile: slim profile
Thickness at Fret 1: 0.800"
Thickness at Fret 12: 0.875"
Peg Head
Type: SP1-B
Silkscreen: Gold "Gibson" and "Les Paul Model"
Headstock Angle: 17 degrees
Neck Fit
Joint Angle: 5.0 degrees
Joint Angle Tolerance: 0 deg 0 min 15 sec
Type: Mortise and Tenon
Gauges Used: Pitch Gage, Alignment Gauge
Nut
Style: Zero Fret Adjustable Nut
Material: Titanium
Width: 1.745"
Slots:
E: 1.4732 mm / 0.058 inches
A: 1.2192 mm / 0.048 inches
D: 0.9652 mm / 0.038 inches
G: 0.7112 mm / 0.028 inches
B: 0.4826 mm / 0.019 inches
e: 0.3556 mm / 0.014 inches
Fingerboard
Wood Species: Granadillo
Pieces: 1
Shade: Light
Fingerboard Details
Radius: 12"
Frets: 22
Nut/End of Board: 1.745" @ nut, 2.310" @ end of board
Scale: Equal tempered 24 3/4"
Side Dots (Color): White
Fingerboard Inlays
Style: Trapeziods
Material: Mother of Pearl
Dimensions: Trap at 3rd fret= 1.160"T x .660"W and 21st fret= 1.565"T x .245"W
Pickups (Rhythm/Lead)
Style: 490R/498T
Control Pocket Assembly
Volume Pot (Lead & Rhythm): Push/Pull 500K
Tone Type (Lead & Rhythm): 500K Non-Linear
Capacitors (Lead & Rhythm): .22uF/.22uF
Switchable Functions
Neck Pickup: Tap or Split
Bridge Pickup: Tap or Split
Tuning Keys
Style: G FORCE
Material: Zamak
Tuning Ratio: 40:1
Gear Type: Syncronized spur gear system
What is allowable turn: +/- 4 degrees
Bridge
Style: Tune-o-matic w /Titanium saddles
Material: Zamak base
Dimensions of String Slots
E:1.4732mm / 0.058"
A:1.2192mm / 0.048"
D:0.9652mm / 0.038"
G:0.7112mm / 0.028"
B:0.4826mm / 0.019"
e:0.3556mm / 0.014"
Tailpiece
Style: Stop Bar
Material: Zamak
Output Jack
Style: HP 1/4" mono gold plated positive contact
Jack Plate
Style: Les Paul
Material: ABS Black
Strap Buttons
Material: Aluminum
Pick Guard
Style: Removable Black
Truss Rod Cover
Style: B/W "Studio" Imprint
Knobs
Style: Supreme grip speed knobs
Control Plate(s) (Backplate Cover)
Style: Les Paul SS infused Polycarbonate
Control Plate(s) (SwitchPlate Cover)
Style: Les Paul SS infused Polycarbonate
Switch Washer
Style: Black w/ Gold
Trim Rings
Style: Black Neck/Bridge
Case
Style: HP Hard shell
Color: Aluminum
Tools: Truss rod wrench 2.5mm adjustment wrench, Polishing cloth, Manual
Case: Gibson Hardshell
