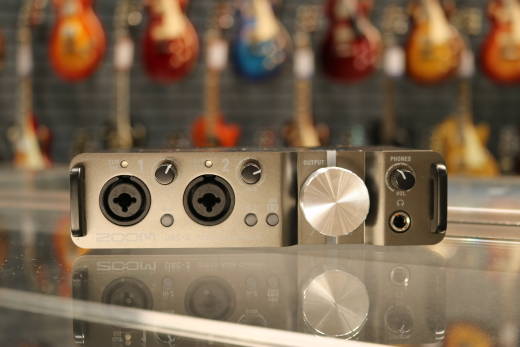

Zoom 24-bit/192 kHz 2x2 USB 3.0 Audio Interface
Additional Photos:
Sale Price: $249.00 CDN
Original Price: $319.99 CDN
or from $37 CDN/mo
Limited stock available in select stores only1 Available through Gear Hunter from $239.99
The ZOOM UAC-2 USB 3.0 SuperSpeed Audio Converter for Mac and PC
The UAC-2 from Zoom is a 2x2 USB 3.0 audio interface that offers near zero latency and up to 24-bit/192 kHz resolution. The compact and robust housing makes the interface perfect for studio and field recording of microphones and instruments, and with its dedicated MIDI input and output connectors, it can even serve as a stable MIDI interface. Plug in any microphone, line-level device, or instrument and use the UAC-2 for onstage playback, recording to a DAW, or enjoyment of high-res audio in your home or office. You can also use it for fast, low-latency podcasting, gaming, and other live streaming applications.
USB 3.0 SuperSpeed
The USB 3.0 SuperSpeed transfer protocol supported by the UAC-2 is ten times faster than USB 2.0 and six times faster than FireWire 800. The result? Low-latency (2.2ms roundtrip @ 96 kHz/32 samples) for improved performance from your DAW software, and a stable data stream that is unaffected by computer jitter (slight variations in timing), so there's no need to connect an external master clock source.
Features at a glance:
• 2-in/2-out USB 3.0 SuperSpeed audio interface
• Support for recording and playback up to 24-bit/192 kHz
• Loopback function for webcasting, podcasting, gaming, and other live streaming applications
• Low latency overdubbing and direct monitoring for zero-latency monitoring in mono or stereo
• Two combo balanced XLR/TRS input connectors accept both mic- and line-level signal
• Hi-Z switches allow direct connection of electric guitar or bass
• Switchable +48V phantom power
• Two balanced TRS output jacks for connection to amplifiers or self-powered speakers
• 1/4" headphone jack with dedicated level control
• Independent gain controls and clip LEDs for each input
• Large knob output volume control
• Direct Monitoring switch for zero latency monitoring in mono or stereo
• MIDI In and Out
• Compatible with all popular DAW and streaming software, including Cubase, Logic, Garage Band, Pro Tools, Ableton Live, and others
• High-performance mic preamps with up to +60dB of amplification
• 120dB of dynamic range
• 4x upsampling during A/D and D/A conversion for reduced noise and enhanced fidelity
• Asynchronous transfer system unaffected by computer jitter
• Bus powered - no AC power required
• Robust metal housing ensures road-worthiness
• Works with all USB 3.0-equipped computers and iPads*
• Dimensions: 113.9mm(D) x 176.0mm(W) x 46.2mm(H)
• Weight: 750g (1.65 lbs)
*Optional power adapter and Apple Camera Connection kit or Lightning to USB Camera Adapter required
Includes:
- USB 3.0 cable (1m)
- Cubase LE Software Authorization Code
- Cubase LE startup guide
- Operation manual
Specifications:
INPUTS
Input 1/2 connectors: XLR/TRS combo jacks (XLR: 2 hot / TRS: TIP hot)
Input gain: 0 to 60dB in 1dB steps
Input impedance: 5kΩ (1 MΩ (when Hi-Z ON)
Maximum input level: +12 dBu (@0dBFs)
Phantom power: +48V
L/R OUTPUT
Type: 1/4" TRS jack (Balanced)
Maximum output level: +14 dBu (@0dBFs)
Output impedance: 100Ω
PHONES OUTPUT
Type: 1/4" stereo phone jack; 20mW + 20mW (into 32Ω load)
Maximum output level: +8 dBu (@0dBFs)
Output impedance: 33Ω
DYNAMIC RANGE
A/D: 118dB typical (IHF-A)
D/A: 120dB typical (IHF-A)
NUMBER OF AUDIO CHANNELS
Recording: 2
Playback: 2
OTHER
Frequency characteristics:
-1.0 dB: 20 Hz - 60 kHz @ 192kHz
-1.0 dB: 20 Hz - 40 kHz @ 96kHz
-1.0 dB: 20 Hz - 20 kHz @ 44.1kHz
Measured conversion noise (EIN): -125dBu (IHF-A) @ 60dB, 150Ω input
Sampling frequencies: 192kHz, 176.4kHz, 96kHz, 88.2kHz, 48kHz, 44.1kHz
Bit depth: 24-bit
Interface: USB 3.0
MIDI In/Out: 5-pin DIN jack
Power source: USB 3.0 Bus Power / AD-14 AC adapter (DC 5V 1A)
Power consumption: 5 W maximum
Dimensions: 113.9mm(D) x 176.0mm(W) x 46.2mm (H)
Weight: 750g
The UAC-2 provides everything you need, in one compact device. Order yours today.
The UAC-2 from Zoom is a 2x2 USB 3.0 audio interface that offers near zero latency and up to 24-bit/192 kHz resolution. The compact and robust housing makes the interface perfect for studio and field recording of microphones and instruments, and with its dedicated MIDI input and output connectors, it can even serve as a stable MIDI interface. Plug in any microphone, line-level device, or instrument and use the UAC-2 for onstage playback, recording to a DAW, or enjoyment of high-res audio in your home or office. You can also use it for fast, low-latency podcasting, gaming, and other live streaming applications.
USB 3.0 SuperSpeed
The USB 3.0 SuperSpeed transfer protocol supported by the UAC-2 is ten times faster than USB 2.0 and six times faster than FireWire 800. The result? Low-latency (2.2ms roundtrip @ 96 kHz/32 samples) for improved performance from your DAW software, and a stable data stream that is unaffected by computer jitter (slight variations in timing), so there's no need to connect an external master clock source.
Features at a glance:
• 2-in/2-out USB 3.0 SuperSpeed audio interface
• Support for recording and playback up to 24-bit/192 kHz
• Loopback function for webcasting, podcasting, gaming, and other live streaming applications
• Low latency overdubbing and direct monitoring for zero-latency monitoring in mono or stereo
• Two combo balanced XLR/TRS input connectors accept both mic- and line-level signal
• Hi-Z switches allow direct connection of electric guitar or bass
• Switchable +48V phantom power
• Two balanced TRS output jacks for connection to amplifiers or self-powered speakers
• 1/4" headphone jack with dedicated level control
• Independent gain controls and clip LEDs for each input
• Large knob output volume control
• Direct Monitoring switch for zero latency monitoring in mono or stereo
• MIDI In and Out
• Compatible with all popular DAW and streaming software, including Cubase, Logic, Garage Band, Pro Tools, Ableton Live, and others
• High-performance mic preamps with up to +60dB of amplification
• 120dB of dynamic range
• 4x upsampling during A/D and D/A conversion for reduced noise and enhanced fidelity
• Asynchronous transfer system unaffected by computer jitter
• Bus powered - no AC power required
• Robust metal housing ensures road-worthiness
• Works with all USB 3.0-equipped computers and iPads*
• Dimensions: 113.9mm(D) x 176.0mm(W) x 46.2mm(H)
• Weight: 750g (1.65 lbs)
*Optional power adapter and Apple Camera Connection kit or Lightning to USB Camera Adapter required
Includes:
- USB 3.0 cable (1m)
- Cubase LE Software Authorization Code
- Cubase LE startup guide
- Operation manual
Specifications:
INPUTS
Input 1/2 connectors: XLR/TRS combo jacks (XLR: 2 hot / TRS: TIP hot)
Input gain: 0 to 60dB in 1dB steps
Input impedance: 5kΩ (1 MΩ (when Hi-Z ON)
Maximum input level: +12 dBu (@0dBFs)
Phantom power: +48V
L/R OUTPUT
Type: 1/4" TRS jack (Balanced)
Maximum output level: +14 dBu (@0dBFs)
Output impedance: 100Ω
PHONES OUTPUT
Type: 1/4" stereo phone jack; 20mW + 20mW (into 32Ω load)
Maximum output level: +8 dBu (@0dBFs)
Output impedance: 33Ω
DYNAMIC RANGE
A/D: 118dB typical (IHF-A)
D/A: 120dB typical (IHF-A)
NUMBER OF AUDIO CHANNELS
Recording: 2
Playback: 2
OTHER
Frequency characteristics:
-1.0 dB: 20 Hz - 60 kHz @ 192kHz
-1.0 dB: 20 Hz - 40 kHz @ 96kHz
-1.0 dB: 20 Hz - 20 kHz @ 44.1kHz
Measured conversion noise (EIN): -125dBu (IHF-A) @ 60dB, 150Ω input
Sampling frequencies: 192kHz, 176.4kHz, 96kHz, 88.2kHz, 48kHz, 44.1kHz
Bit depth: 24-bit
Interface: USB 3.0
MIDI In/Out: 5-pin DIN jack
Power source: USB 3.0 Bus Power / AD-14 AC adapter (DC 5V 1A)
Power consumption: 5 W maximum
Dimensions: 113.9mm(D) x 176.0mm(W) x 46.2mm (H)
Weight: 750g
The UAC-2 provides everything you need, in one compact device. Order yours today.
