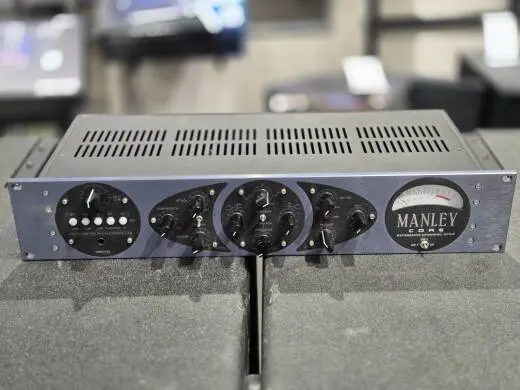

Manley All Tube Analogue Channel Strip
Additional Photos:
48V Phantom power switch
120Hz High Pass Filter switch
Phase Invert switch
Input Attenuator (Variable Pad)
Mic Pre Selectable Gain 40dB or 60dB
Line Amp Selectable Gain 20dB or 40dB
1/4" Direct Input
Similar to the DI in the Manley SLAM!, this all-discrete solid-state circuit with 10 Meg Ohm input impedance is perfect for guitars, bass, keyboards, etc.
COMPRESSOR:
Featuring Manley's successful ELOP technology also found in their famous Manley VOXBOX
Compressor is uniquely before the Mic Preamp making it virtually impossible to clip
Ratio 3:1
Continuously variable Attack, Release, and Threshold controls
Silent Bypass switch
EQUALIZER:
Low and High Baxandall Shelves (80Hz and 12kHz) with 12dB range
Sweepable Midrange Bell EQ (100Hz 1kHz) or (1kHz 10kHz) with 10dB range
LIMITER:
Fast attack FET brickwall limiter
Continuously Variable Threshold and Release controls
Peak Limit LED indicator
10dB range output gain control
METER:
Large illuminated analog display
3-way meter-select switch shows Compressor Gain Reduction, Micpre Output Level, and Main Output audio levels.
INPUTS AND OUTPUTS:
Balanced XLR Mic Input
Balanced XLR Line Input
Front Panel Direct Instrument 1/4" Input
Insert point between Mic Preamp and EQ/Limiter via TRS jack
Balanced XLR Direct Output (after Preamp/Compressor section)
Balanced XLR Main Output
Deluxe CNC-machined 1/4" thick faceplate with inlaid laser-engraved inserts adorn the rigid 2U steel chassis - all sourced in Southern California
Q & A
Reviews
Available In Gear Hunter
Sale Price: $3,299.00
