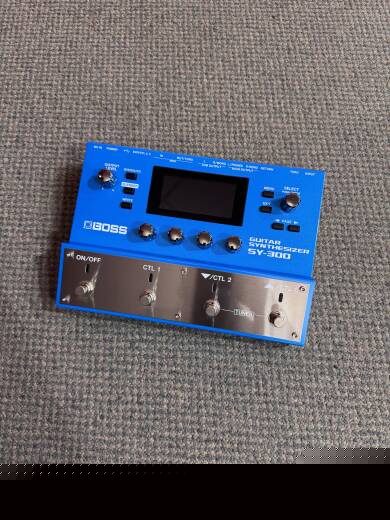

BOSS Guitar Synth
Additional Photos:
Features:
• Plug into the standard 1/4-inch jack and play rich and expressive polyphonic synth tones with any guitar
• Completely latency-free playing feel directly connects your hands with the sound
• Three simultaneous synth sections and four effects processors enable rich, dynamic, and diverse sound creation
• Shape your normal guitar tone with synth filters, amplifiers, and LFOs to create all-new sounds
• Graphic LCD display, three assignable footswitches, and dedicated on/off footswitch
• 70 ready-to-play preset patches and 99 user patches for storing custom sounds
• Create and archive sounds on your computer with the BOSS Tone Studio editor/librarian and download new sounds at BOSS Tone Central
• Works with bass and other electronic instruments as well
Specifications:
Oscillators: Three OSCILLATOR (wave: SIN, SAW, TRI, SQR, PWM, DETUNE SAW, NOISE, INPUT)
Effects: FX x 4, Type: CHORUS, COMPRESSOR, DELAY, EQ, FLANGER, ISOLATOR, LIMITER, LO-FI, OD/DS, PAN, PHASER, REVERB, ROTARY, SLICER, SLOW GEAR, TOUCH WAH, TREMOLO, UNI-V, CHORUS+DELAY, CHORUS+REVERB, DELAY+REVERB
Patch Memories
- User: 99
- Preset: 70
AD Conversion: 24 bits + AF method
• AF method (Adaptive Focus method): This is a proprietary method from Roland and BOSS that vastly improves the signal-to-noise (SN) ratio of the AD and DA converters.
DA Conversion: 24 bits
Sampling Rate: 44.1 kHz
Nominal Input Level
- INPUT: -10 dBu
- RETURN: -10 dBu
Input Impedance
- INPUT: 2.2 M ohms
- RETURN: 220 k ohms
Nominal Output Level
- MAIN OUTPUT: -10 dBu
- SUB OUTPUT: -10 dBu
Output Impedance
- MAIN OUTPUT: 2 k ohms
- SUB OUTPUT: 2 k ohms
Recommended Load Impedance
- MAIN OUTPUT L/R: 20 k ohms or greater
- SUB OUTPUT L/R: 20 k ohms or greater
- PHONES: 16 ohms or greater
LCD: Graphic LCD (132 x 64 dots, backlit LCD)
Connectors
- INPUT jack: 1/4-inch phone type
- THRU jack: 1/4-inch phone type
- RETURN jack: 1/4-inch phone type
- MAIN OUTPUT R (MONO) jack: 1/4-inch phone type
- MAIN OUTPUT L (PHONES) jack: 1/4-inch phone type
- SUB OUTPUT R (MONO) jack: 1/4-inch phone type
- SUB OUTPUT L jack: 1/4-inch phone type
- MIDI (IN, OUT/THRU) connectors
- EXP/CTL4, 5 jack: 1/4-inch TRS phone type
- USB port: USB type B
- DC IN jack
Power Supply: AC adaptor
Current Draw: 400 mA
Accessories:
- AC adaptor
- Owner's manual
- Leaflet "USING THE UNIT SAFELY"
Options (sold separately):
- Footswitch: FS-5U, FS-6, FS-7
- Expression pedal: Roland EV-5
Size and Weight:
Width: 255 mm (10-1/16 inches)
Depth: 191 mm (7-9/16 inches)
Height: 70 mm (2-13/16 inches)
Weight(excluding AC Adaptor): 1.75 g (3 lbs 14 oz.)
