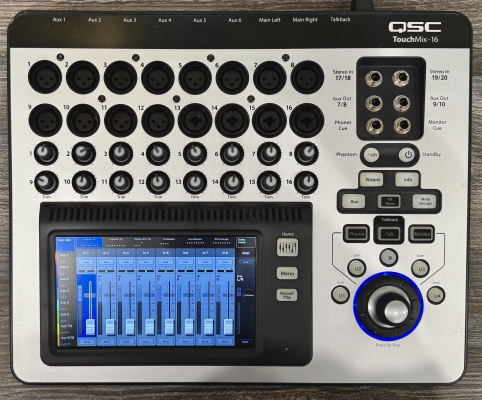

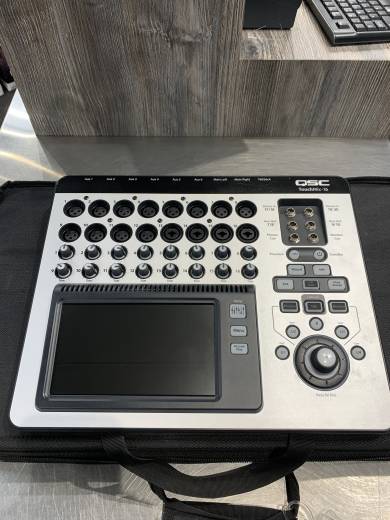

QSC TouchMix-16 Compact Digital Mixer with Touchscreen
Additional Photos:
Product Videos :
YouTube Video
Your Price: $2,449.00 CDN
or from $144 CDN/mo
Features:
Great results and easy to use.
• Input channel preset library features over 100 presets developed by experienced concert engineers specifically for live sound applications.
• Wizards assist with input gain adjustment and effects selection and routing.
• On board, multi-language Info system for instant access to the user manual in Chinese Mandarin, English, French, German, Russian and Spanish.*
• Color, capacitive touch screen graphical user interface combined with hardware controls for fast and intuitive operation.

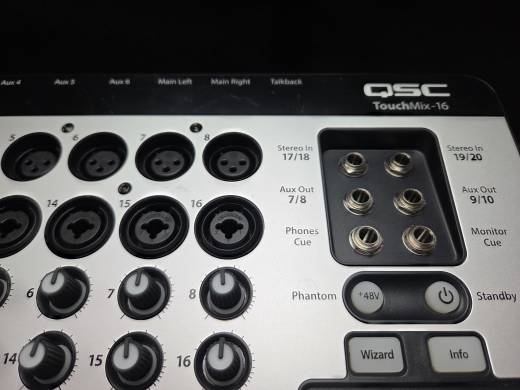

20 total inputs: 16 mic, (four with XLR/TRS combo connector) and two stereo line (TRS)
• Dedicated talkback mic input

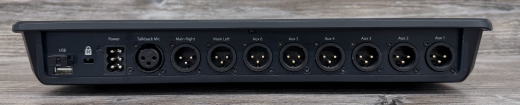

• Stereo Main L/R outputs (XLR)
Ample monitor outputs (eight total) with 6 mono auxiliary mixes (XLR) and 2 stereo auxiliary mixes.
• The 2 stereo aux outputs can drive wired in-ear monitors (IEM) directly.
• Mono auxiliaries may be linked for stereo use.
• Multiple ways to control aux mixes
- Mix on faders*
- Send from channels
- Aux overview of all aux mixes
- Auxiliary mixes may be assigned for Main L/R output for use as sub-groups.
Superb sound quality
• Class-A microphone pre-amps
• 32-bit floating point processing
• 24-bit AD & DA convertors
Input channels are fully-featured:
• Four-band full parametric EQ
• Variable high-cut and low-cut filters
• Gate
• Compressor (with de-esser)
• Gate and compressor assignable Pre or Post EQ*
• User selectable auxiliary pick-off points*
Main and auxiliary outputs feature:
• 1/3-octave graphic EQ (four-band parametric EQ on stereo auxiliaries)
• Limiter
• Delay
• Notch filters
Four professional quality stereo DSP effects. Choose from:
• Two types of reverb
• Mono delay
• Stereo delay
• Chorus
• Pitch-change
• One Pitch Correct processor assignable to any input channel.
Eight DCA and eight mute groups.
Assign / Un-assign Input to Main Mix*
Programmable User-Buttons.*
Save your own channel presets and complete mixer scenes to internal memory or USB device.
Capturing live performance to multi-track has never been easier. Record 22 tracks (all inputs plus a stereo mix) directly to USB hard-drive. Mix down on TouchMix or import into your favorite DAW.
Remote Control
• Complete mixer remote control via free iOS app for iPad, iPhone, iPod Touch.
- Monitor control via iPhone/iPod Touch App.*
- Multiple Wi-Fi connectivity options.*
- Individual devices may be given permissions to access one or more functions.*
- Support for MIDI-over-USB footswitches.*
Security Lockout Modes

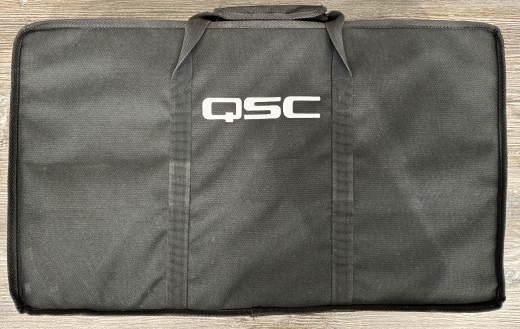

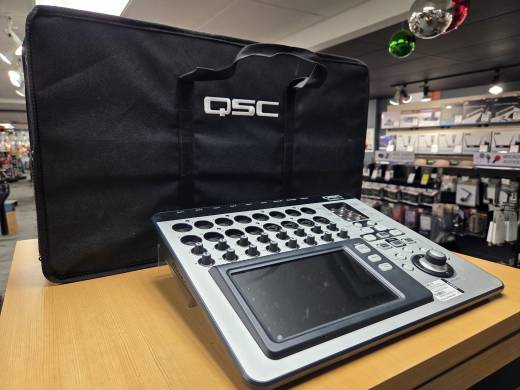

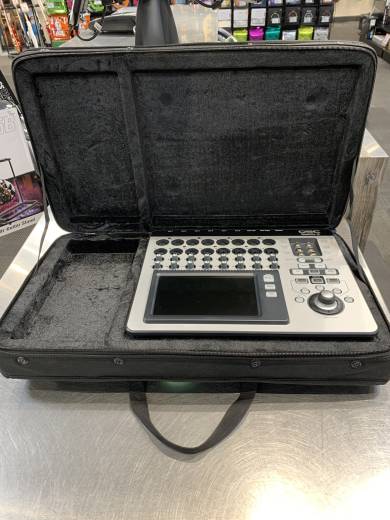

USB Wi-Fi interface and carrying case are included.
*Requires 2.1 or higher firmware
Quick Specs:

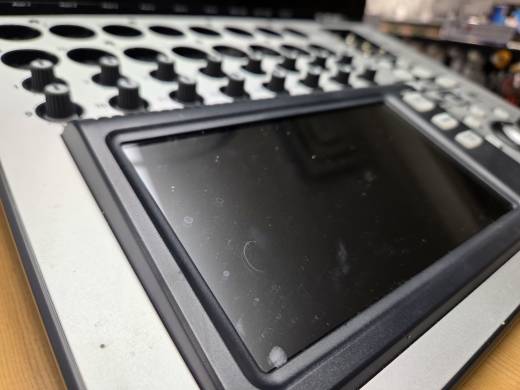

Display: 6.1" 3.5" (156 mm 90 mm) color TFT, touch sensing
Inputs (Mic/Line): 20
Input (Talkback): One XLR
Outputs: 12
Recording: 22 tracks, requires USB 3.0 HD • FAT32 format • minimum 7800 RPM
Effects: 4 professional effects engines including reverb, echo, delay, chorus, 50 factory, 50 user presets, 1 pitch correct
Scenes: 130 user-defined scenes
Sampling Frequency: Selectable 44.1 kHz or 48 kHz
Phantom Power: 48V, individually switchable per channel
Dimensions (HxWxD): 58 mm x 360 mm x 291 mm (2.3" x 14.2" x 11.5")
Weight: 5.9 lb (2.98 kg)
Great results and easy to use.
• Input channel preset library features over 100 presets developed by experienced concert engineers specifically for live sound applications.
• Wizards assist with input gain adjustment and effects selection and routing.
• On board, multi-language Info system for instant access to the user manual in Chinese Mandarin, English, French, German, Russian and Spanish.*
• Color, capacitive touch screen graphical user interface combined with hardware controls for fast and intuitive operation.
20 total inputs: 16 mic, (four with XLR/TRS combo connector) and two stereo line (TRS)
• Dedicated talkback mic input
• Stereo Main L/R outputs (XLR)
Ample monitor outputs (eight total) with 6 mono auxiliary mixes (XLR) and 2 stereo auxiliary mixes.
• The 2 stereo aux outputs can drive wired in-ear monitors (IEM) directly.
• Mono auxiliaries may be linked for stereo use.
• Multiple ways to control aux mixes
- Mix on faders*
- Send from channels
- Aux overview of all aux mixes
- Auxiliary mixes may be assigned for Main L/R output for use as sub-groups.
Superb sound quality
• Class-A microphone pre-amps
• 32-bit floating point processing
• 24-bit AD & DA convertors
Input channels are fully-featured:
• Four-band full parametric EQ
• Variable high-cut and low-cut filters
• Gate
• Compressor (with de-esser)
• Gate and compressor assignable Pre or Post EQ*
• User selectable auxiliary pick-off points*
Main and auxiliary outputs feature:
• 1/3-octave graphic EQ (four-band parametric EQ on stereo auxiliaries)
• Limiter
• Delay
• Notch filters
Four professional quality stereo DSP effects. Choose from:
• Two types of reverb
• Mono delay
• Stereo delay
• Chorus
• Pitch-change
• One Pitch Correct processor assignable to any input channel.
Eight DCA and eight mute groups.
Assign / Un-assign Input to Main Mix*
Programmable User-Buttons.*
Save your own channel presets and complete mixer scenes to internal memory or USB device.
Capturing live performance to multi-track has never been easier. Record 22 tracks (all inputs plus a stereo mix) directly to USB hard-drive. Mix down on TouchMix or import into your favorite DAW.
Remote Control
• Complete mixer remote control via free iOS app for iPad, iPhone, iPod Touch.
- Monitor control via iPhone/iPod Touch App.*
- Multiple Wi-Fi connectivity options.*
- Individual devices may be given permissions to access one or more functions.*
- Support for MIDI-over-USB footswitches.*
Security Lockout Modes
USB Wi-Fi interface and carrying case are included.
*Requires 2.1 or higher firmware
Quick Specs:
Display: 6.1" 3.5" (156 mm 90 mm) color TFT, touch sensing
Inputs (Mic/Line): 20
Input (Talkback): One XLR
Outputs: 12
Recording: 22 tracks, requires USB 3.0 HD • FAT32 format • minimum 7800 RPM
Effects: 4 professional effects engines including reverb, echo, delay, chorus, 50 factory, 50 user presets, 1 pitch correct
Scenes: 130 user-defined scenes
Sampling Frequency: Selectable 44.1 kHz or 48 kHz
Phantom Power: 48V, individually switchable per channel
Dimensions (HxWxD): 58 mm x 360 mm x 291 mm (2.3" x 14.2" x 11.5")
Weight: 5.9 lb (2.98 kg)
Media
Youtube video product demo
Q & A
There are currently no questions for this product.
Reviews
18.117.232.215
Mozilla/5.0 AppleWebKit/537.36 (KHTML, like Gecko; compatible; ClaudeBot/1.0; [email protected])
QSC TM16 1 of 1 customers found this review helpful
Features
Quality
Value
Overall
Product Experience I own it
Closest Store Kanata, Ontario
I've been using a TM16 since they first hit the market. There were teething pains from QSC as it came from the factory. The external power supply can be an issue, seems many users have put too much strain on the plug going into the board. The pins and sockets inside the plug can become bent leading to power failures on stage. Owners must support weight of the power supply so there's no strain on that plug. As for power issues, you must remember, this mixer is basically a laptop with no internal battery. That mean if there's a power interruption while operating, the unit may "lose its mind" thereby needing a full reboot. What happens to your performance while rebooting... maybe have the lead singer do a little tap dancing for about two minutes. If you're really lucky, the board will reboot and the show goes on. If the board doesn't come back up, that's what a performance warranty from L&M is for. As for the live show with a bricked mixer, we'll, you just became an acoustic unplugged show. Using a UP'S will also get you through bad Hydro, old wiring in venues, noisy freezers and LED lighting buzzing, etc.
It is a must to upgrade the firmware and software versions. I also use an iPad to control the mixer right from a mic stand, you can hide the mixer if stage space is an issue.
The TM8 was too small while for my purposes, the TM32 was simply too much mixer. I run as a duo, trio or 4 piece country rock show and I've also used this mixer as the center of a huge system while I run sound and lights remotely.
I've never had any issues with dropping connectivity as some have reported.
If the board wound up as a paper weight, I'd run right out to my local L&M and get another, hands down.
Posted by BBQ Bob on Aug 13, 2023
QSC TM 16 caveats. 2 of 2 customers found this review helpful
Features
Quality
Value
Overall
Product Experience I own it
Closest Store Waterloo, Ontario
I have owned my unit over 2 years, use it in studio and for smaller PA gigs.
If you are using it outside of your own studio, make sure you add a proper WiFi router, don't depend on the one supplied for paying gigs. Also, the USB stick is fine for recording a few tracks, 2 ideally, maybe 4 at best. If you are planning on recording Multitrack, get a Solid state HDD, the USB stick will not handle the data transfer fast enough and you experience dropouts and lost data.... not good. Trust me, I know this. :(
Otherwise I love my unit.
Posted by Steve Morris on Dec 8, 2019
Best Mixer I've used till date. 0 of 0 customers found this review helpful
Features
Quality
Value
Overall
Product Experience I own it
Closest Store Mississauga, Ontario
This little package packs a BIG PUNCH! It has everything you could ever want and more. I love the screen on the unit as well as the ability to connect a tablet. The interface is very intuitive. This is my first digital mixer purchase. I have however used many before, but none of the other big brands come anywhere close to how easy this is to use. I would highly recommend it.
It is by far the best investment I have made in a very long time.
Posted by ShEhEnShAh on Feb 10, 2019
Awesome mixer!!! 7 of 7 customers found this review helpful
Features
Quality
Value
Overall
Product Experience I own it
Closest Store Moncton, New Brunswick
Bought this mixer just over a year ago. I can't say enough good things about it. I sold all of my effects and processors including my old analog board.
This has really simplified set up time and the sound quality is incredible using the on board wizard and features to do a sound check is a breeze. There is ""nothing"" out there at present time that can rival this product at this price range.
Posted by Danny Vienneau (Lead vocalist) on Feb 26, 2016
