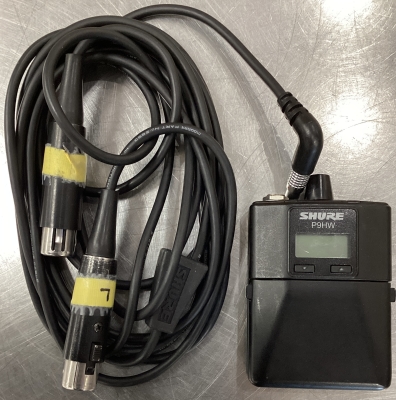

Shure P9HW Wired Bodypack Personal Monitor
Additional Photos:
Product Videos :
The P9HW is a wired, two-channel stereo personal monitor with individual mix controls. Listen to one or two channels of audio from the mixing console through earphones using MixMode technology to customize the mono blend. Stereo mode allows left / right balance adjustment for two mixes. Use the volume limiter to set the maximum volume adjustment range.
The PSM900 series offers unprecedented audio and RF performance for the most demanding professional applications.
Features:
• Rugged, all-metal construction
• LCD screen with menu-based navigation
• Easy to adjust volume knob and mix control
• Two input channels with MixMode technology or stereo mode output
• MixMode allows volume adjustment of the mono blend of two input mixes
-Stereo mode allows left/right balance adjustment for two mixes
-Volume limiter sets the maximum volume adjustment range
• 4-band parametric EQ
• Switchable line (+4 dBu) and aux (-10 dBV) input level
• 2 AA batteries provide up to 9 hours of use
• Optional Shure SB900B lithium-ion rechargeable battery provides extended runtime
• Power and battery status LED
• 5 segment battery life meter
• Power-save mode and automatic power-off preserves battery life
Specifications:
Audio Frequency Response: 20 Hz to 20 kHz
Signal-To-Noise Ratio: 98 dB (typical)
Total Harmonic Distortion: 55 dB
Minimum Load Impedance: 9.5Ω
Operating Temperature: -18 °C to +63 °C
Dimensions (H x W x D): 99 x 66 x 23 mm (3.9 x 2.6 x 0.9 inches)
Net Weight: 196 g (6.9 oz) (with batteries)
Battery Life: 9 hours (continuous use) AA batteries
Connector Type: LEMO
Configuration: Electronically balanced
Impedance: Line: 45 kΩ/Aux: 66 kΩ
Nominal Input Level: Switchable: +4 dBu (Line), -10 dBV (Aux)
Maximum Input Level: +4 dBu (Line): +22 dBu, -10 dBV (Aux): +12.2 dBu
Phantom Power Protection: Up to 60 V DC
Audio Output Connector Type: 3.5 mm (1/8")
