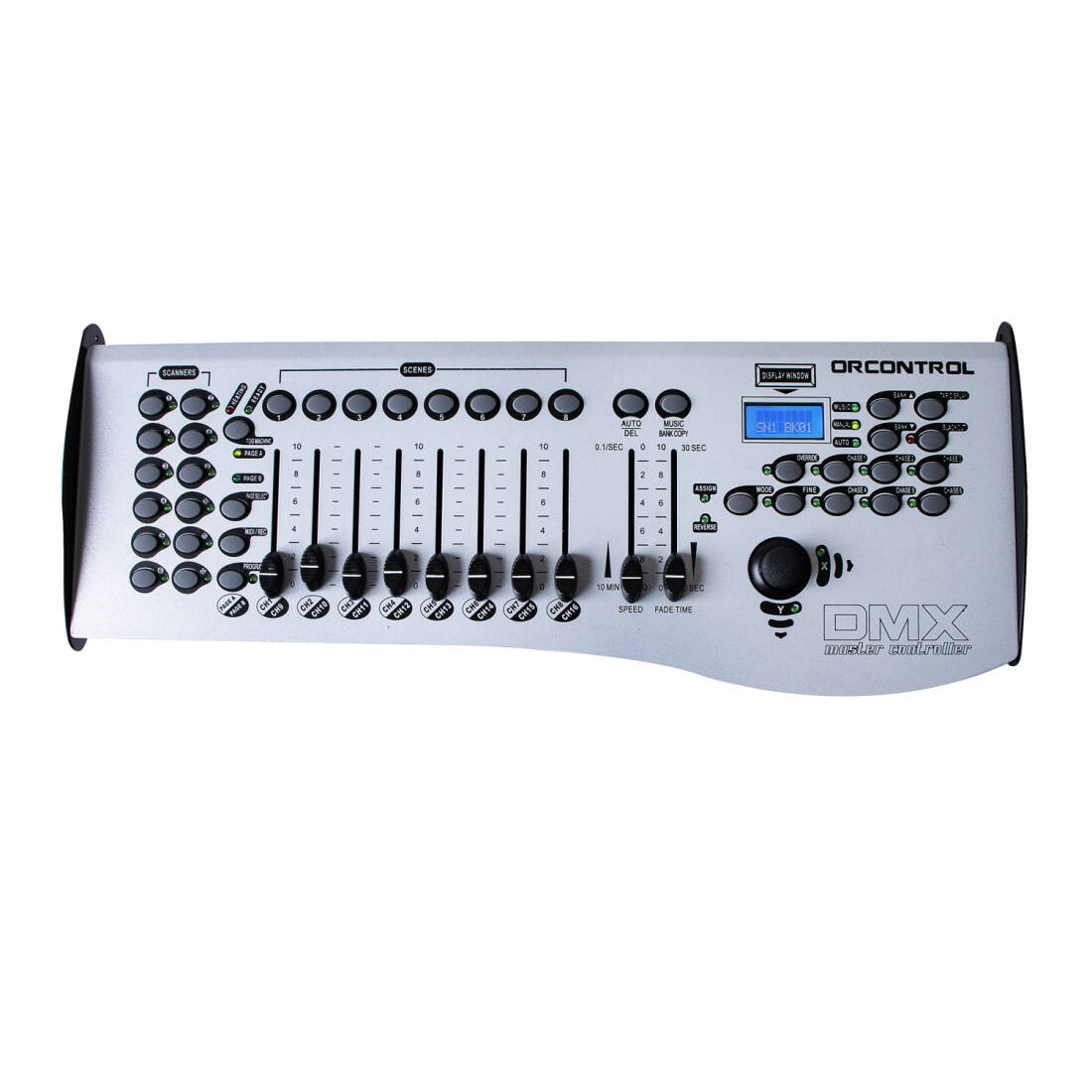

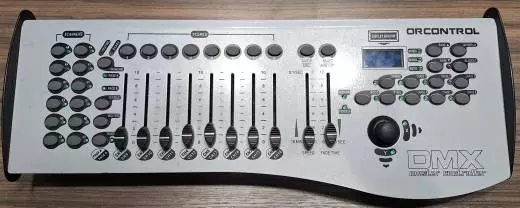

Orion 16-Channel DMX Lighting Controller
Thirty programmable banks with 8 scenes each (240 scenes) allow detailed preset design for even the most complex stage or club setup. Two assignable pan / tilt joysticks ensure the ORCONTROL is ready when you expand into moving head lights and effects. All channels and faders can be reassigned for detailed system control.
The ORCONTROL is able to run multiple chases simultaneously, and can tap sync, audio sync or auto run depending on application. Ideal for use with any and all Orion DMX ready lasers, LEDs and smoke machines.
Features
• Universal DMX512 Controller
• Controls 12 Intelligent Lights up to 16 Channels
• 30 Banks of 8 Scenes (240 Scenes Total)
• Set up to 6 Chases containing 240 Scenes
• Executes Multiple Chases Simultaneously
• Channels are Re-assignable
• Assignable 16-bit Pan / Tilt Joystick Controller
• Beat Activation, Tap Sync, Auto Run Mode
• Selectable DMX Output Polarity
Specifications
DMX Protocol: DMX-512 USITT
DMX Connections:DMX XLR 3-Pin Input & Output

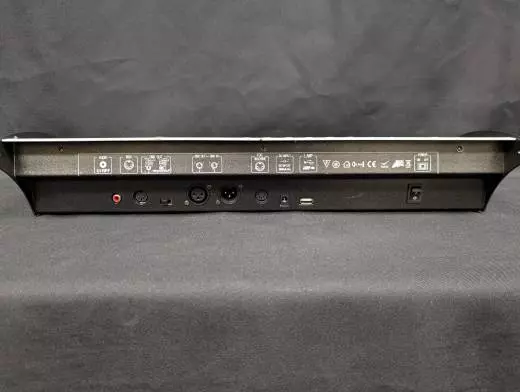

Additional Connections: Audio Input (Sound Active Mode), 5-Pin DIN plug (Fog Machine Control), USB Lamp Socket / Power Port
Power Supply: DC 9-12v 500mA
(Use Supplied Power Supply Only)
Dimensions L xWxH (in):19 x 7.5 x 3.5
Dimensions L xWxH (mm): 482 x 190 x 90
Weight: 7.7 lbs / 3.5kg
