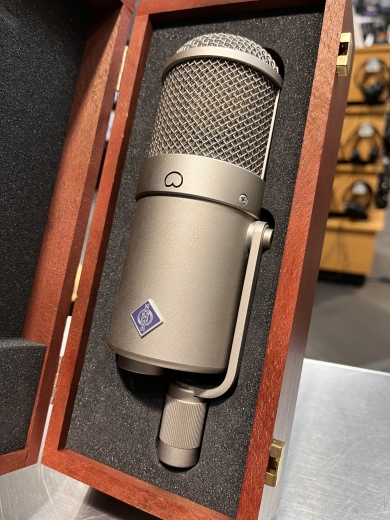

Neumann U47 FET Large Diaphragm Condenser Microphone
Additional Photos:

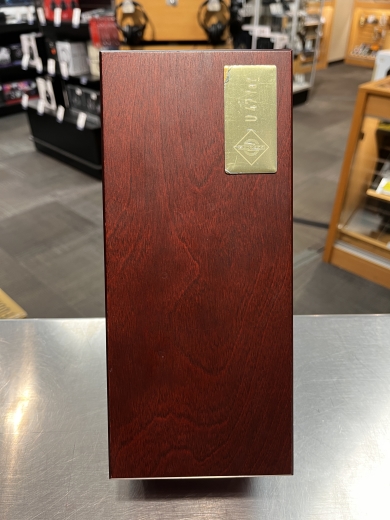

The U 47 fet Collectors Edition is a new edition of this classic, issued in the year 2014. For this, Neumann has resumed production of this classic mic, according to the original production documents and schematics. It is supplied with a high-quality wooden case with sophisticated special packaging, and an individual certificate with the serial number of the microphone.
In terms of technical design, the U 47 fet is a condenser microphone with a cardioid directional characteristic and fet 80 circuit technology. Among other things this technology, also used in the U 87, is characterized particularly by a wide dynamic range. The K 47 double large-diaphragm capsule was already employed in the U 47, the legendary tube-based predecessor of the U 47 fet. The K 47 provides a slight boost in the range above 2 kHz.

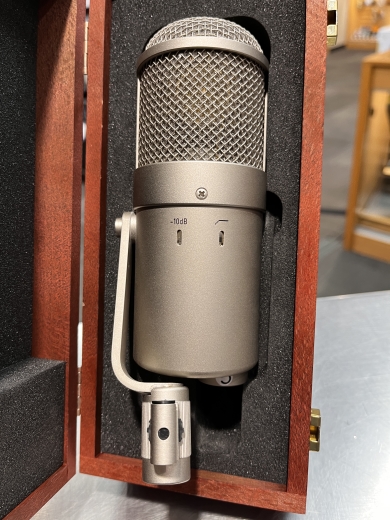

If required, a switchable low-cut filter raises the lower cutoff frequency electronically from 40 Hz to 140 Hz, thus suppressing undesirable low frequencies (such as impact sound and wind noise), or serving to compensate for the proximity effect. Switchable attenuation can reduce transmission levels by 10 dB, facilitating the processing of very high sound pressure levels of up to 147 dB. In addition, to prevent overloading of the connected preamp, the output signal can be reduced by 6 dB via a switch on the bottom of the microphone.
In order to ensure stable positioning, the microphone is swivel-mounted on an integrated bracket. The bracket stand connector has 5/8"-27 internal thread, with an adapter for 1/2" and 3/8" threads. The microphone cable can be secured at the side of the stand connector, by using the knurled nut to fasten it in the slot (for cable diameters of up to 5 mm). The microphone is available in classic nickel.
FEATURES:
• Linear frequency response with a slight boost in the range between 2 and 5 kHz for more clarity to the human voice
• Useful amount of proximity effect, particularly good for thin voices
• bass roll-off at 40 Hz, switchable high-pass filter at 140 Hz
TECHNICAL DATA
Acoustical operating principle: Pressure gradient transducer
Directional pattern: Cardioid
Frequency range: 40 Hz ... 16 kHz
Sensitivity at 1 kHz into 1 kohm: 8 mV/Pa
Rated impedance: 150 ohms
Rated load impedance: 1 kohms
Maximum output voltage: -3.3 dBu
Supply voltage (P48, IEC 61938): 48 V 4 V
Current consumption (P48, IEC 61938): 0.5 mA
Matching connector: XLR3F
Weight: 710 g
Diameter: 63 mm
Length: 160 mm
