Telefunken TF47 Vacuum Tube Condenser Microphone
Additional Photos:

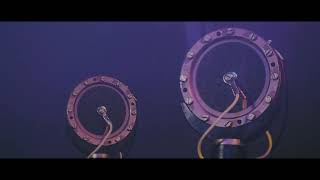

Product Videos :
Features
• Full low end and forward midrange, reminiscent of the U47• Smooth and detailed top end
• Cardioid, Omni, and Figure 8 polar pattern selection
• New old stock Philips/Raytheon 5840W vacuum tube
• K47-style capsule and robust BV8 output transformer
• Designed and hand assembled in the USA
• Recommended Applications: Vocals, Piano, Drums, Trombone, Bass, Cello
Specifications
- Type: Vacuum Tube Condenser- Polar Pattern: Cardioid, Omnidirectional, Figure-8
- Frequency Range: 20 Hz - 20 kHz, +3 dB
- Power Source: External Power Supply
- Capsule: TK47 Center Terminated Large Diaphragm
- Tube: NOS Philips/Raytheon 5840W
- Transformer: TELEFUNKEN Elektroakustik BV8
- Sensitivity: 22 mV/Pa, +1 dB
- THD at 1kHZ at 1Pa (Amplifier): 0.3%
- Output Impedance: 300 Ω
- Maximum SPL (for 1% THD): 125 dB
- S/N Ratio: 84 dBA
- Self Noise (Amplifier): 10 dBA
- Dimensions: 200 mm L x 46 mm Dia
- Weight: 710 g
Included Accessories
- Tube Mic Cable- Power Supply
- Shock Mount
- Stand Mount
- Mic Sleeve
- Carrying Case
