Behringer Classic Polyphonic Analog Synthesizer
Additional Photos:

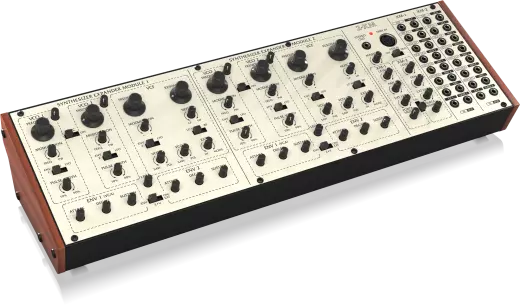

The original design consisted of two single-voice modules coupled together. With its 37-note keyboard, it was a considerable size but introduced a feature no other synth was capable of at the time: polyphony. The 2-XM combines all the features of the original with all the awesome stuff that we've all come to love in modern synths, such as MIDI and USB implementation, stereo, as well as a ton of CV and GATE ins and outs that'll allow you to transform and shape sounds any way you want!
The 2-XM comes with 4 VCOs, 4 envelope generators, 2 LFOs, and 2 multi-mode VCFs across two synthesizer expander modules. These two voices can be combined for some sweet two-voice polyphony, split, or have the 4 oscillators in unison for some truly intricate layering and rich, vintage analog tones!
Designed to handle the rigors of life on the road or in the studio, your 2-XM can easily be transferred into a standard Eurorack case for the perfect integration into your existing system.
Specifications
Synthesizer ArchitectureNumber of voices: 2 (duophonic)
Type: Analog
Oscillators: 4 VCO
LFO: 2 LFO
VCF: 2 LPF 12 dB/octave
Envelopes: 4 ADS
Connectivity
Power switch: Push button (rear panel)
MIDI In: 5-pin DIN
MIDI Thru: 5-pin DIN
USB: USB 2.0 Type B socket
Audio outputs: 3.5 mm TRS stereo (top panel)
2 x 6.35 mm TR (rear panel)
Patchbay: 32 x 3.5 mm TR jack
USB
Type: Class compliant USB 2.0 Type B
Supported Operating Systems
Windows 7 or higher
Mac OS 10.10 or higher
Master Section
Controls: Master Volume
Module Level x 2
Module Pan x 2
External Level x 2
Portamento x 2
Switches: Assign (Uni/Split/Duo)
Portamento On/Off
Oscillators
Controls: Coarse Frequency x 4
Fine Frequency x 4
Modulation x 4
Pulse Width x 4
Switches: Modulation Source x 4
Sync x 2
LFOs
Controls: Rate x 2
VCFs
Controls: Frequency x 2
Resonance x 2
Modulation x 2
Notch x 2
VCO1 x 2
VCO2 x 2
Ext x 2
Switches: Modulation Source x 2
LP-HP / BP x 2
Envelope Generators
Controls: Attack x 4
Decay x 4
Sustain x 4
Switches: VCA on / Ext x 2
Patchbay
Inputs: Ext audio x 2 / VCF CV x 2 / VCA CV x 2 / VCO1 CV x 2 / VCO2 CV x 2 / LFO Trig x 2 / Env Gate x 2
Outputs: CV1 / Gate1 / CV 2 / Gate2 / VCA audio x 2 / VCF audio x 2 / VCO1 audio x 2 / VCO2 audio x 2 / Env1 CV x 2 / Env2 CV x 2 / LFO CV x 2
Power Requirements
Voltage: 12 V DC
Current: 2000 mA
