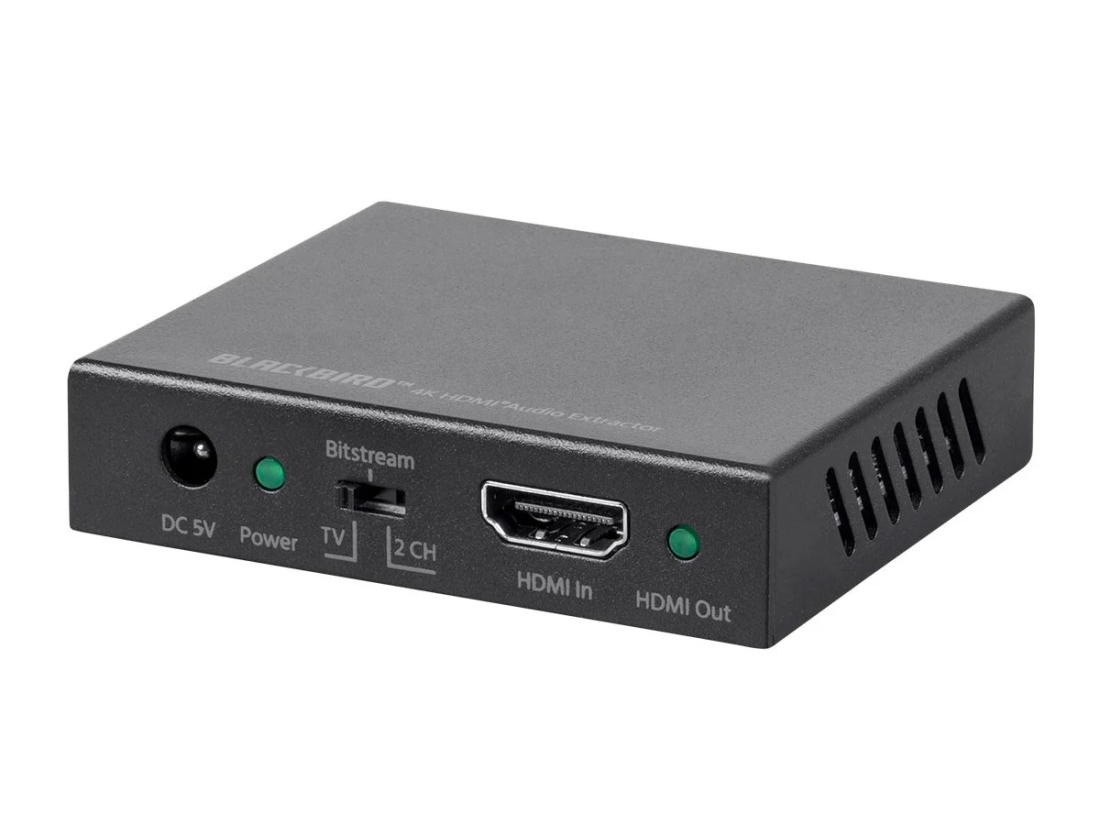

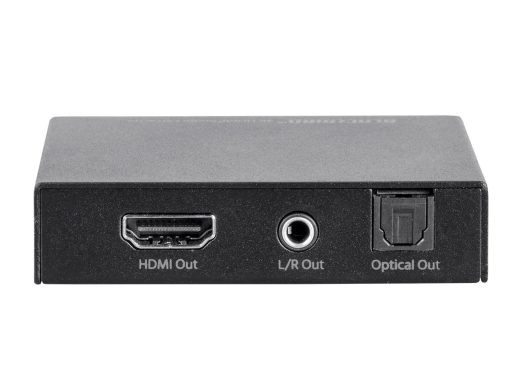

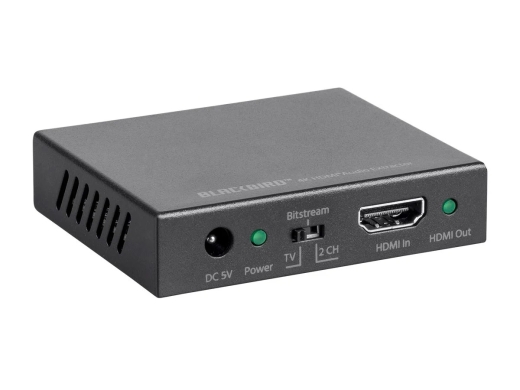

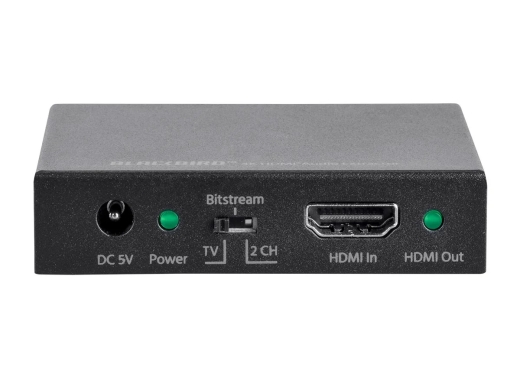

Monoprice Monoprice Blackbird 4K60 HDMI Audio Extractor

Additional Photos:



This Blackbird™ 4K HDMI® Audio Extractor extracts the audio signals from HDMI video streams. It supports analog stereo audio, as well as high‑definition multichannel audio streams over the S/PDIF digital optical audio output. It supports video resolutions up to 4K@60Hz YCbCr 4:4:4, 10‑bit High Dynamic Range (HDR) passthrough, and audio sampling rates up to 192kHz. It is fully compliant with the HDMI 2.0b and HDCP™ 2.2 standards and provides up to 18Gbps video bandwidth.
• Supports stereo analog and multichannel digital optical S/PDIF audio
• Supports video resolutions up to 4K@60Hz YCbCr 4:4:4
• Supports 10‑bits High Dynamic Range (HDR) passthrough
• Supports CEC bypass
• Supports audio sampling rates up to 192kHz
• Provides up to 18Gbps video bandwidth
- HDMI® Version: 2.0b
- HDCP™ Version: 2.2
- Maximum Video Resolution: 4K@60Hz YCbCr 4:4:4 including 1080p@120Hz and 1080p 3D@60Hz
- Color Space Support: RGB, YCbCr 4:4:4, YCbCr 4:2:2
- Color Depth: up to 12‑bits per channel (36‑bits total)
- Input Power: 5 VDC, 1A
- AC Adapter Input Power: 100 - 240 VAC, 50/60Hz
- Maximum Power Consumption: 1 watt
- Operating Temperature: +32 - +104°F (0 - +40°C)
- Storage Temperature: ‑4 - +140°F (‑20 - +60°C)
- Operating Humidity: 20 - 90% RH, noncondensing
- Dimensions: 2.9" x 2.4" x 0.7" (74 x 61 x 17 mm)
- Weight: 4.6 oz. (130g)
- Regulatory Compliance: CE, FCC, UL®
Features
• Extracts audio from an HDMI® video signal• Supports stereo analog and multichannel digital optical S/PDIF audio
• Supports video resolutions up to 4K@60Hz YCbCr 4:4:4
• Supports 10‑bits High Dynamic Range (HDR) passthrough
• Supports CEC bypass
• Supports audio sampling rates up to 192kHz
• Provides up to 18Gbps video bandwidth
Specifications
- Model: 24278- HDMI® Version: 2.0b
- HDCP™ Version: 2.2
- Maximum Video Resolution: 4K@60Hz YCbCr 4:4:4 including 1080p@120Hz and 1080p 3D@60Hz
- Color Space Support: RGB, YCbCr 4:4:4, YCbCr 4:2:2
- Color Depth: up to 12‑bits per channel (36‑bits total)
- Input Power: 5 VDC, 1A
- AC Adapter Input Power: 100 - 240 VAC, 50/60Hz
- Maximum Power Consumption: 1 watt
- Operating Temperature: +32 - +104°F (0 - +40°C)
- Storage Temperature: ‑4 - +140°F (‑20 - +60°C)
- Operating Humidity: 20 - 90% RH, noncondensing
- Dimensions: 2.9" x 2.4" x 0.7" (74 x 61 x 17 mm)
- Weight: 4.6 oz. (130g)
- Regulatory Compliance: CE, FCC, UL®
