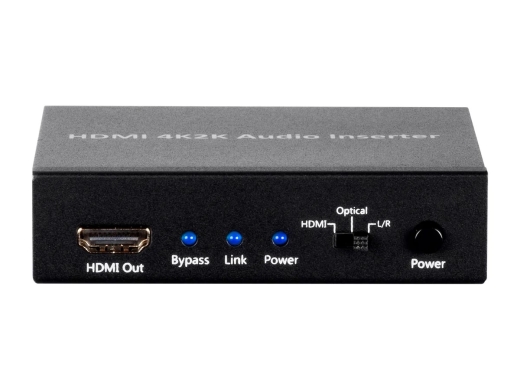

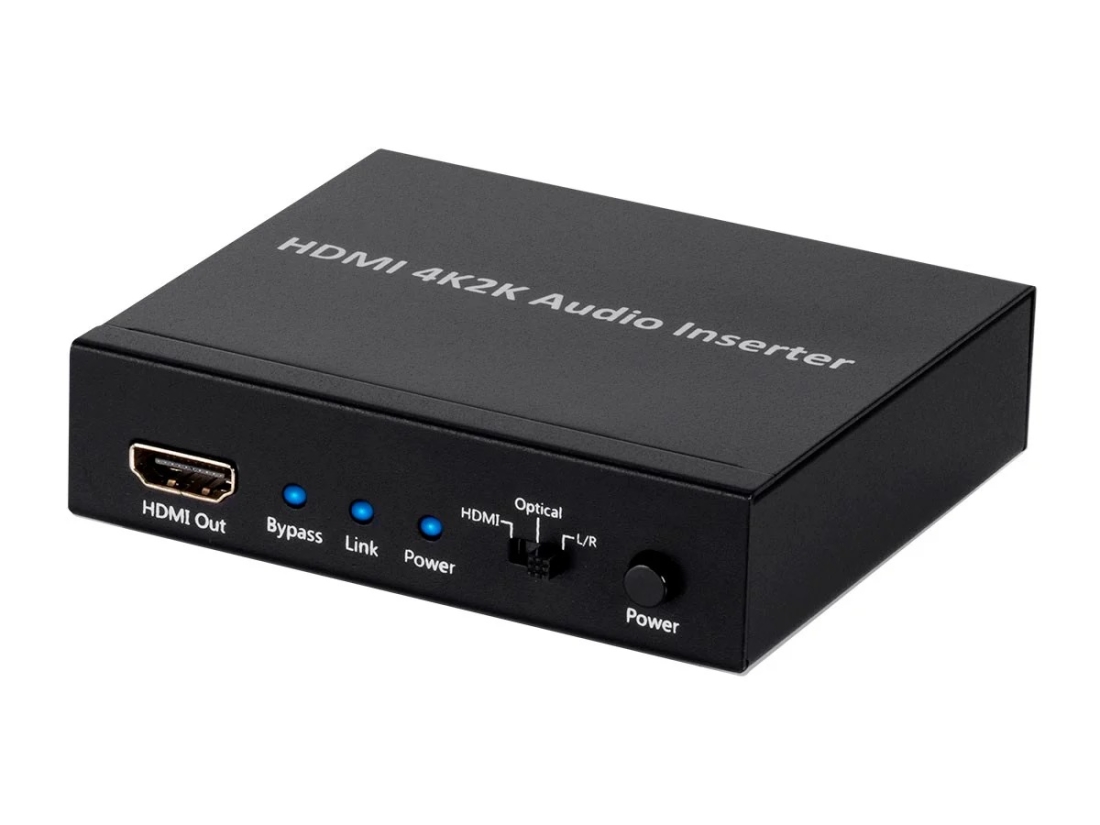

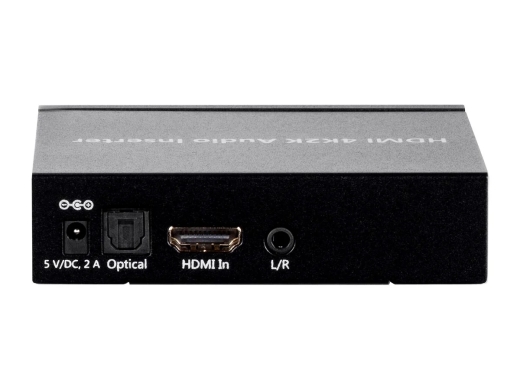

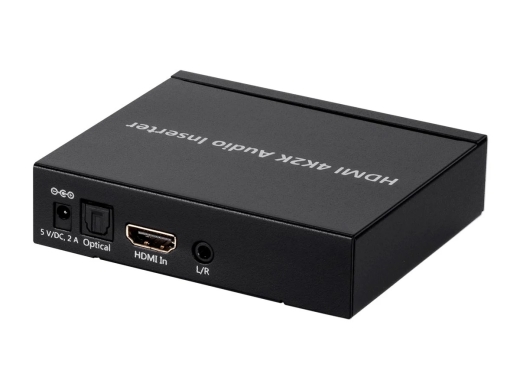

Monoprice Monoprice Blackbird 4K Series HDMI Audio Inserter

Additional Photos:



The Monoprice Blackbird™ 4K Series Audio Inserter allows you to insert stereo or multichannel surround sound audio signals through a digital Toslink® or an analog 3.5mm input, giving you the ability to add digital or analog audio to an HDMI® video signal. It supports 2‑, 5.1‑, and 7.1‑channel LPCM, Dolby® 5.1, DTS® 5.1, Dolby Digital Plus™, Dolby TrueHD™, DTS‑HD Master Audio™ formats. The Blackbird 4K Series Audio Inserter is fully compliant with the HDMI and HDCP™ 1.2 standards to ensure compatibility with equipment and components.
• Supports HDMI audio sampling rates up to 192 kHz
• Supports Digital Optical S/PDIF audio sampling rates up to 192 kHz
• Supports external Digital Optical or Analog audio replacement for HDMI audio signal
• HDMI supports High‑Bit‑Rate (HBR) audio
• Supports DVI conversion with DVI to HDMI adapter
• Supports CEC pass‑through
• Supports 4K resolution and 3D video signals
- Video Input: HDMI®
- Audio Inputs: HDMI, Digital optical S/PDIF (Toslink®), Analog stereo 3.5mm TRS
- Output: HDMI
- Video Bandwidth: 340Mbps per channel (10.2Gbps total)
- HDMI Audio Sampling Rate: Up to 192kHz
- Digital Optical S/PDIF Audio Sampling Rate: Up to 192kHz
- HDMI Audio Formats: 2/5.1/7.1 channel LPCM, 2-5.1 channel DTS®, Dolby TrueHD™, DTS‑HD Master Audio™
- Digital Optical S/PDIF Audio Formats: 2‑channel LPCM, 2-5.1 channel DTS
- Analog Audio Format: 2‑channel analog
- Power Source: 5 VDC, 2A
- Operating Temperature: +32 - +104°F (0 - +40°C)
- Storage Temperature: ‑4 - +140°F (‑20 - +60°C)
- Dimensions: 3.7" x 3.3" x 0.9" (95 x 83 x 24 mm)
Features
• Compliant with HDMI®, HDCP™ 1.2, and DVI™ 1.0 standards• Supports HDMI audio sampling rates up to 192 kHz
• Supports Digital Optical S/PDIF audio sampling rates up to 192 kHz
• Supports external Digital Optical or Analog audio replacement for HDMI audio signal
• HDMI supports High‑Bit‑Rate (HBR) audio
• Supports DVI conversion with DVI to HDMI adapter
• Supports CEC pass‑through
• Supports 4K resolution and 3D video signals
Specifications
- Model: 13347- Video Input: HDMI®
- Audio Inputs: HDMI, Digital optical S/PDIF (Toslink®), Analog stereo 3.5mm TRS
- Output: HDMI
- Video Bandwidth: 340Mbps per channel (10.2Gbps total)
- HDMI Audio Sampling Rate: Up to 192kHz
- Digital Optical S/PDIF Audio Sampling Rate: Up to 192kHz
- HDMI Audio Formats: 2/5.1/7.1 channel LPCM, 2-5.1 channel DTS®, Dolby TrueHD™, DTS‑HD Master Audio™
- Digital Optical S/PDIF Audio Formats: 2‑channel LPCM, 2-5.1 channel DTS
- Analog Audio Format: 2‑channel analog
- Power Source: 5 VDC, 2A
- Operating Temperature: +32 - +104°F (0 - +40°C)
- Storage Temperature: ‑4 - +140°F (‑20 - +60°C)
- Dimensions: 3.7" x 3.3" x 0.9" (95 x 83 x 24 mm)
