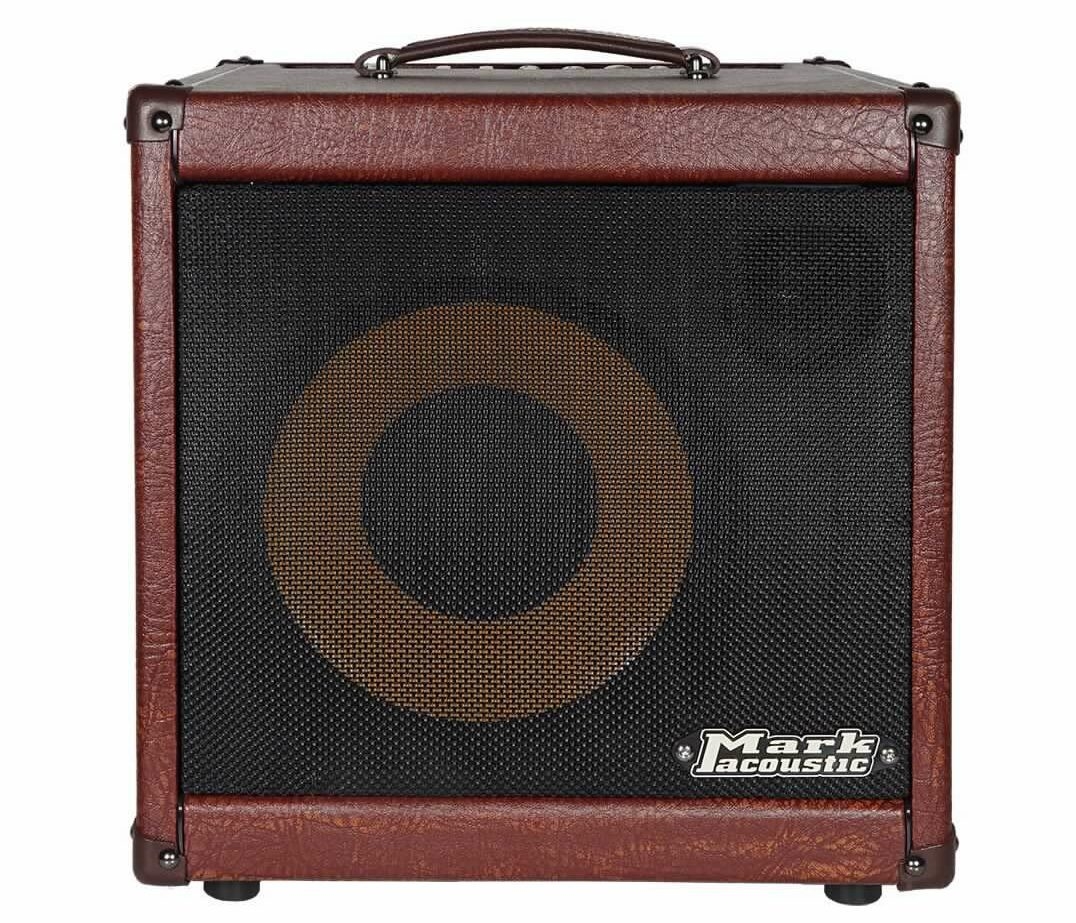

DV Mark AC 101H 250W 1x10 Acoustic Combo Amp
Additional Photos:
The AC 101H includes all the features that acoustic musicians need: 48V phantom power for use with condenser microphones, etc., feedback control and phase reverse to easily manage feedback problems and capture the true essence of your acoustic sound while also providing you with serious headroom, pre/post EQ switch for the XLR DI, FX send/return, tuner out and a next generation of digital reverb and chorus, sweet sounding, warm and natural.
Note: Markacoustic amps/combos are manufactured to be sold and used in the country of purchase, and they are factory preset to that country's voltage. This voltage may not be changed.
Specifications
AMP OUTPUT POWER
(analog) 250W @ 4 ohm / 150W @ 8 ohm
SPEAKER CONFIGURATION
110" DV Mark custom loudspeaker + 1" voice coil tweeter
PREAMP
Solid State
INPUTS
CH 1: Impedance 500 Kohm / Maximum Vpp: 10
CH 2: Impedance 500 Kohm / Maximum Vpp: 10
BALANCED CH2: Impedance 500 Kohm / Maximum Vpp: 20
RETURN: unbalanced, Impedance 33 Kohm // Max 10Vpp
CONTROLS CH1
GAIN: -45dB to 28dB
EFFECT MIX (onboard effect only)
EQUALIZER
LOW: Level +/-16 dB (40 Hz)
MID: Level +/-16 dB (600Hz)
HIGH: Level +/-16 dB min (6 KHz)
CONTROLS CH2
GAIN: -43dB to 26 dB
PHANTOM: 48VDC
EFFECT MIX (onboard effect only)
EQUALIZER
VPF: Center Frequency (380 Hz)
LOW: Level +/-16 dB (60 Hz)
HIGH: Level +/-16 dB min at (5 KHz)
OTHER CONTROLS
PHASE: 0°, 180°
ANTIFEEDBACK: 20Hz (off), 400 Hz
OUTPUTS
SEND: unbalanced, Max Voltage 20Vpp (Pre Equalization)
TUNER OUT: unbalanced, Max Voltage 2Vpp
LINE OUT XLR DI: balanced, Max Output: 20 Vpp
BASS PORT
rear
IMPEDANCE
8 ohms
SENSITIVITY
101 dB SPL
SPEAKER POWER HANDLING
200W RMS (AES Standard)
FREQUENCY RESPONSE
45 Hz to 20 kHz
CROSSOVER FREQUENCY
3.5 kHz
DIMENSIONS
(W x H x D): 353 x 367 x 367 mm
