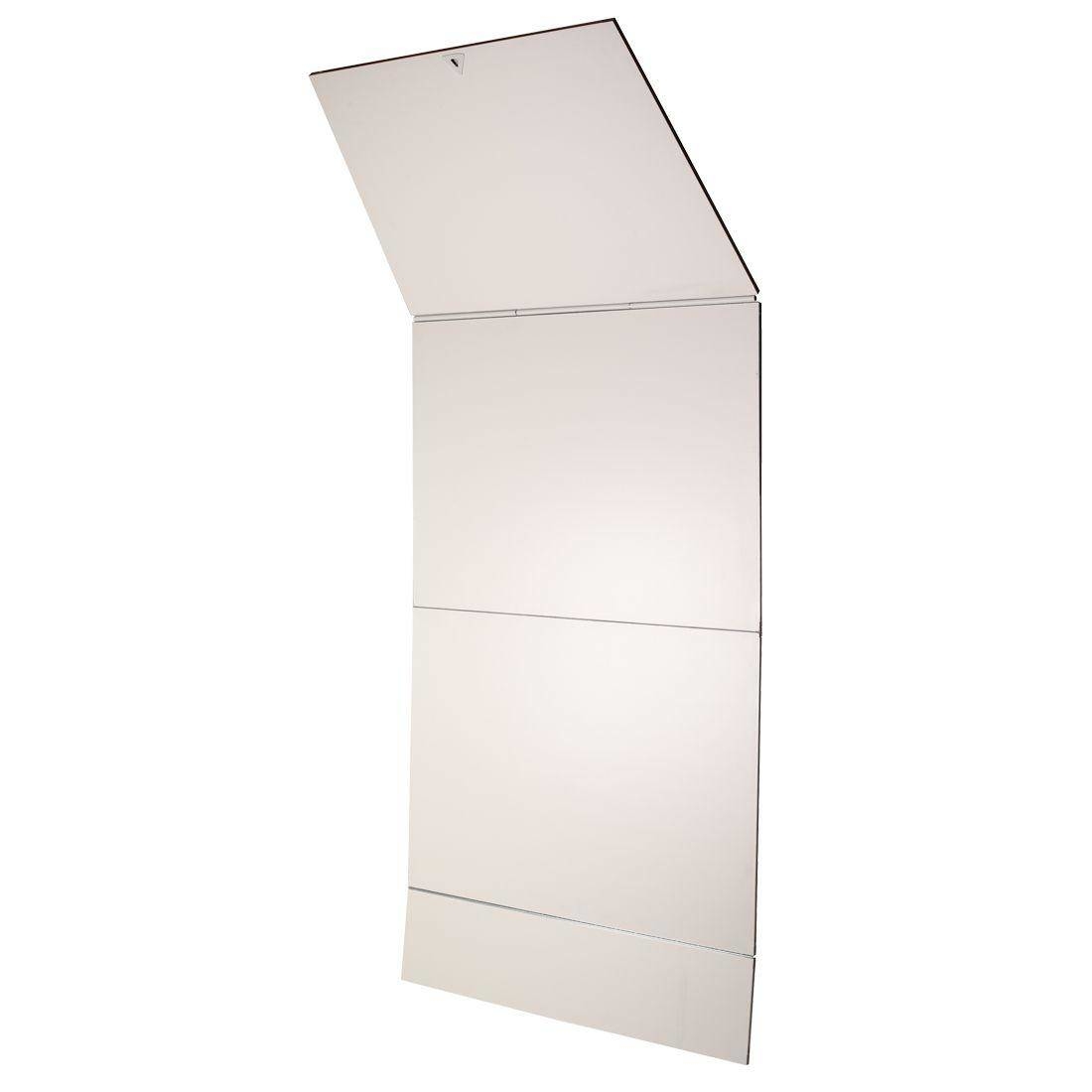

Wenger Tapered Legacy Basic Acoustical Shell - Oyster

With the Legacy Basic Acoustic Shell, setting up great acoustics is easier than ever.

Creating acoustical shells that meet your needs is part of Wenger CorporationÂ's tradition. The Legacy Basic Acoustical Shell continues to set the standards for ease of setup, acoustical effectiveness and flexibility at your most affordable price.

In its storage position, Legacy Basic Shells move through standard doorways and will roll around your facility with ease. To set it up, all it takes is one person and six rotations of a handle. The canopy locks into one of four different angles. This provides adjustable acoustics, which benefits all types of performances from choral to instrumental.

Specifications

6' (1829 mm) wide panels
Canopy and middle panels are constructed of 3/4" (19 mm) honeycomb core with 0.10" (3 mm) thick laminated hardboard skin on front and back;
Fixed bottom panel is constructed of 3/4" (19 mm) laminated particleboard
with grey 1/8" (3mm) edge banding
Overall panel thickness is 1" (25 mm)
The canopy panel may be set at 45, 60, 75, and 90° angles using gas assists to hold the canopy at the desired angle
Base and shell frame are constructed of black powder-coat painted steel
Base includes protruding legs at the front of the shell
Lift mechanism includes a crank handle with a pulley design assisted by a torsion spring to raise and lower the shell;
The shell is fully deployed into its performance position with just six turns
The middle panel overlaps the bottom panel in the performance position
Canopy panel dimensions are 6'w x 36"h (1829 x 914 mm)
Includes four 3" (76 mm) swivel, non-marring thermoplastic casters for easy movement
Fits through a standard 36" (914 mm) door opening in the storage position
Bottom panel rests 7" (178 mm) from floor
Overall shell surface coverage is 78 ft2 (7.2 m2)
Fully extended height is 13' (3962 mm)
Front panel color is a neutral Oyster that allows the shell to be placed almost anywhere
Shells nest compactly at 10" (254 mm) per unit
