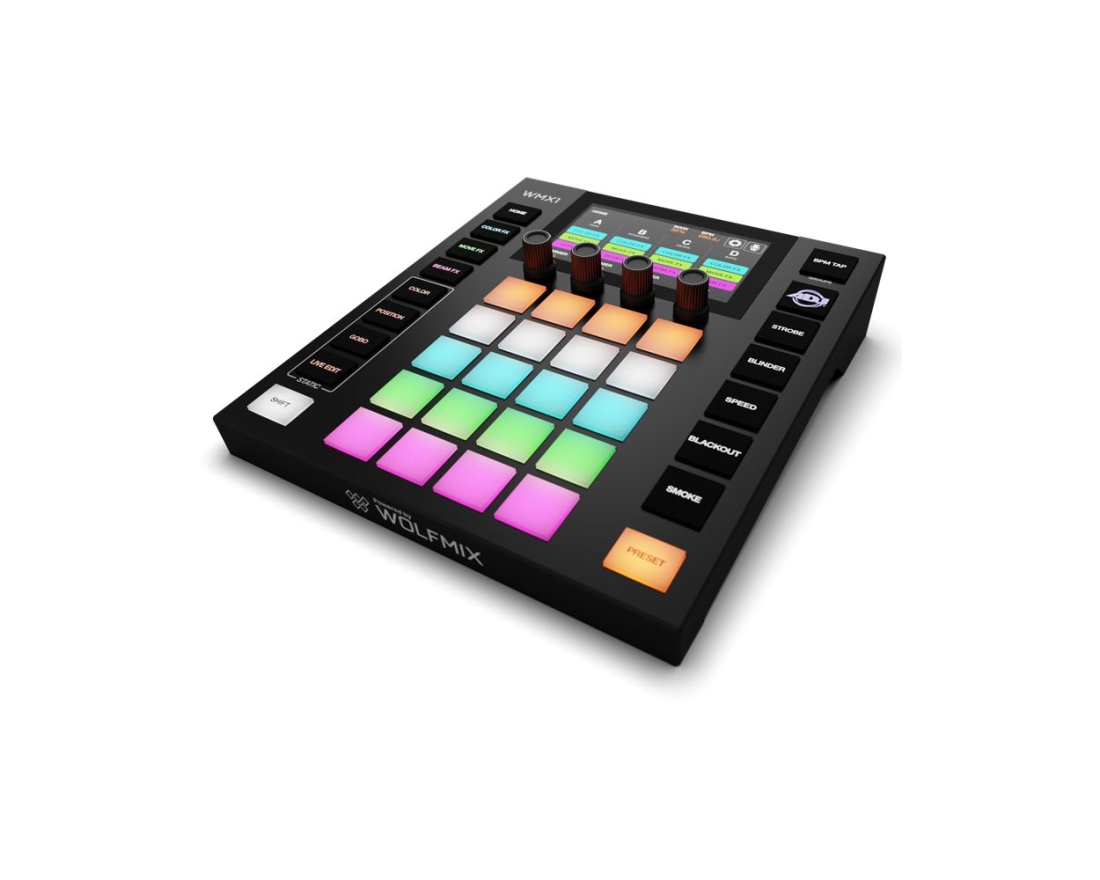

American DJ WMX1 MK 2 Standalone Lighting Control System
Additional Photos:
Features
Setup• Standalone (no computer needed)
• Compatible with any DMX device
• Standard unit comes with 2 DMX universe but up to 2 additional universes are available as add-ons, which are sold via the WTOOLS app.
• Up to 680 fixtures & beams
• Up to 50 fixture types
• Up to 5000 fixture features (color/gobo etc...)
• 8 fixture groups
• 6 projects
• 15000+ available fixtures (3500+ on the controller)
• DMX address, fixture order & group setup
• Use as a DMX splitter with DMX universe mapping
Palettes & FX
• Color FX module with 8 effect types & 16 definable colors
• Move FX module with 8 effect types
• Beam FX module with 8 effect types
• 6 Flash buttons for controlling Special FX, Strobe, Blinder, Speed, Blackout & Smoke
• Static color palette with 10 user definable colors per group & gradient control
• Static position palette with 5 user definable positions per group with fade & fanning
• Gobo palette with 5 user definable gobos per group
• 20 namable live edit buttons with flash triggering mode and Park function
• 100 namable presets for storing snapshots with hold and fade timings
• Preset playback cue list- all presets or per page of 20 presets
Control & Sync
• Group and master dimming with encoder acceleration
• Group FLASH, FULL and Blackout
• 16 bit Pan/Tilt control
• Multi-beam LED bar control
• FX music pulse sync from Microphone or Line-In
• FX BPM sync with Ableton Link, OS2L or BPM TAP
• Effect Speed, Phase, Order, Size, Fade, Fan & Flick
• Live control of move FX registration point
• Global FX speed and freeze control
• Map DMX IN with group dimmer and patch to output channels
• WLINK - sync with another Wolfmix controller
Built-in tools
• Fixture Builder
• Fixture calibration tool, to limit the area of moving fixtures
• X-Y touch controlled positioning grid
• RGBW touch controlled color picker
• 8-step real time sequencer for creating beam and move FX
• Live view of DMX levels with default value override and DMX channel tester
• Beam Editor to override Min and Max values used in generated FX
Features
• Calibrate and RGB, White, Amber, UV mixing with automatic fixed color wheel translation
• Automatic matching of similar gobos across different fixture types
• Timed release of flash and preset buttons
• Fixture FLIP function, for reversing beam order
• Fixture SPLIT function, for splitting up multi-FX bars
• Lock full controller, or lock editing with a password
• Project & fixture backup with WTOOLS app
• Offline 3D visualization with Easy View & WTOOLS over USB*
• Auto-recovery of active project (no manual saving needed)
• Import different fixture setups into the same project
• Starts in under 2 seconds. Starts sending DMX in under 1 second
• Factory firmware startup recovery mode for times of crisis
Specifications
Display4.3" Color TFT with tinted glass
Capacitive touch
Encoders
Full body alloy
Incremental push with acceleration
Button pads
37 Silicone buttons with matte oil finishing
LED color backlit
Processing
220Mhz CPU with ARM core
8MB RAM
16MB Flash
Audio
Sync FX with the music
Analog audio peak detection circuit
Built in microphone with auto-gain
3.5mm jack socket
DMX
2x 3pin DMX OUT XLR connectors
1x 5pin DMX OUT XLR connector
1x 5pin DMX IN/OUT XLR connector with WLINK
USB
USB B powered
USB A port for MIDI over USB and project loading & back-up
Sync with Ableton Link & OS2L via a computer
Link with MIDI faders and sync with MIDI clock
Backup projects and fixtures to a memory stick
Housing
ABS Plastic
Powder-coated steel base plate with 100mm VESA (M4 6mm max)
Powder-coated steel reinforced back plate
