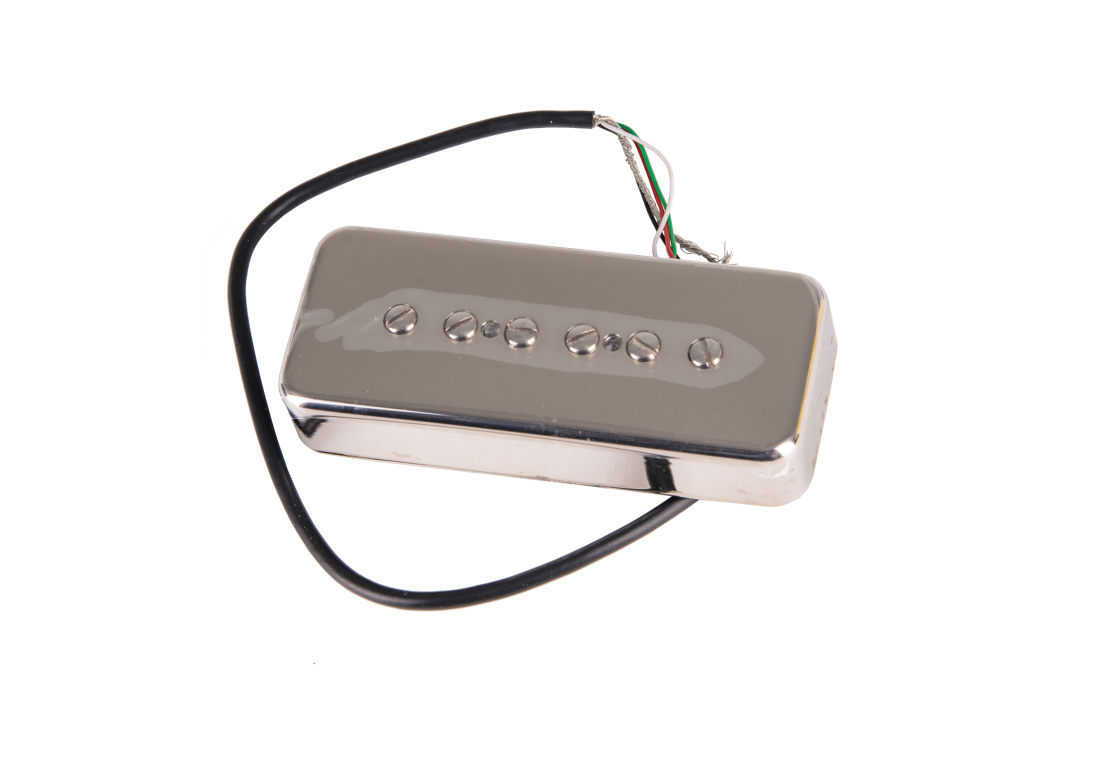

WD Music Kent Armtrong Stealth P90 Nickel Pickup

Kent Armstrong Custom Series Stealth 90 Noiseless P-90 Pickups This new revolutionary design gives the sweet, warm chime and tone of the original P-90 pickup without all that annoying 60-cycle hum. Read the forums on this HP-90 pickup and don't let the high resistance fool you. Making its debut at the 2012 summer NAMM show, this design uses the hum-canceling properties of opposing coils but defies the normal high output that would accompany similar resistance designs. Available in both bridge and neck positions so you can create a properly calibrated set in black and cream plastic as well as real metal covers in black, chrome, gold, and nickel plating! If you love P-90s and want to forget about not being able to use your favorite guitar because of lighting and power issues you simply have to get into a set of new Stealth 90 pickups.

Recommended wiring includes using a 500K Ohm pot for volume, 250K Ohm pot for tone, and a .022 capacitor as these are humbucking pickup designs. The 250K pot for tone will give a smoother, less abrupt tone sweep versus a 500K.

Specifications

Magnet type = Ceramic.
Resistance = 17.6K Neck.
Inductance (henrys) = 29.87.
Length = 3.365 in. (85.50mm).
Width = 1.36 in.(34.70mm).
Height = 0.74 in. (18.75mm).
Includes (4) conductor wiring.
All electrical measurements were taken at 78 degrees Fahrenheit.
