Audient iD48 24 in/32 out Audio Interface
Additional Photos:
Product Videos :
Bigger, better and more powerful than ever, iD48 is the flagship USB iD interface made for producers and engineers. Packing in eight Audient Console Mic Preamps, advanced 32-bit ESS converter technology and the all new Switchable Analogue Insert technology, iD48 seamlessly combines astonishing audio performance with ease of use. Add to that professional must have features like ADAT expandability and customisable monitor control, iD48 is ready to transform your studio.
For the pros
Sound better than ever with the Audient Console Mic Preamp. Delivering 68dB gain, ultra- low noise and low distortion with a touch of classic analogue warmth. iD48's eight Audient Console Mic Preamp's make sure you capture a clean, accurate and true to source translation of your audio.
Next-level performance
Utilising 32-bit ESS DAC converter technology to minimise quality loss and maximise performance during conversion, iD48 makes sure your audio sounds cleaner, clearer and more precise than ever. And with 126.5dB of dynamic range, you will hear subtle details better and identify problematic issues faster making getting release ready results easy.
Expand and conquer
Make short work of the most demanding sessions and future proof your studio with iD48's optical input and output connections. Supporting both ADAT and SPDIF, iD48 lets you boost your I/O by adding up to 16 channels of external mic preamps to your setup.
Built for outboard

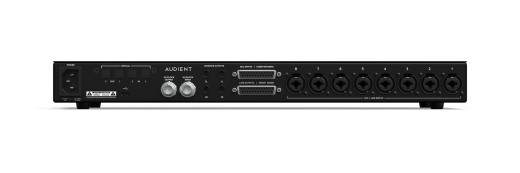

Utilising Dsub connections, iD48 provides eight fully balanced inserts letting you integrate your favourite outboard FX prior to conversion giving you the cleanest signal path possible. Perfect for stem mixing and print-backs.
Switch it up
And for the first time ever, iD48's Switchable insert routing enables you to select which source is feeding the ADC path. Letting you choose whether to send the Audient Mic Preamp or a DAW output to your outboard on a per channel basis and all without having to plug or unplug cables.
Track with an external preamp
Plus, for users wanting to record external analogue mic preamps, iD48's Returns let you bypass the Audient mic preamp, giving you a super clean and direct conversion path for recording.
Features
• 8 Audient console mic preamps• 16 digital inputs and outputs
• 2 headphone outputs
• 8 balanced inserts
• 12 line outputs
• 126.5 dB dynamic range
• 68 dB mic preamp gain
• 2 JFET instrument inputs
Specifications
Microphone Preamplifier- MIC GAIN: 0 to +68dB (with 10dB Gain Boost)
- LINE GAIN: -10 to +58dB (with 10dB Gain Boost)
- PHANTOM POWER: 48v +/-4v @ 10mA/Channel
- MIC EIN: -127dBu
- CMRR: 80dB @ 1kHz
- MAXIMUM INPUT LEVEL: +18dBu
- INPUT IMPEDANCE (Mic): 3k Ω balanced
- INPUT IMPEDANCE (Line): 10k Ω balanced
- FREQUENCY RESPONSE: +0.5dB 10Hz to 65kHz
- CROSSTALK: -115dB @ 1kHz & 10kHz
- THD+N @ 0dBu (1kHz): 0.0016% (-96dB)
- SNR: 99dB A-Weighted
- XLR: Pin 2 (Hot), Pin 3 (Cold) & Pin 1 (Shield)
- 1/4" TRS JACK: TIP (Hot), RING (Cold) & SLEEVE (Shield)
- PAD: -10dB
- HPF: -3dB @ 100Hz, 2nd Order (12dB/Octave)
D.I / Instrument Input (Channel 1 and 2)
- D.I GAIN: 0 to +68dB (with 10dB Gain Boost)
- MAXIMUM INPUT LEVEL: +15dBu
- INPUT IMPEDANCE: 500kΩ Unbalanced
- FREQUENCY RESPONSE: +0.5dB 10Hz to 40kHz
- THD+N @ 0dBu (1kHz): 0.06%
- SNR: 96dB A-weighted
- 1/4" JACK: Tip (Hot) & Sleeve (Shield)
Analogue to Digital Converter
- MAXIMUM INPUT LEVEL: +18dBu (0dBFS digital maximum)
- DIGITAL REFERENCE LEVEL: +18dBu = 0dBFS
- INPUT IMPEDANCE: 10k Ω Balanced
- CROSSTALK: -118dB @ 1kHz, -115dB @ 10kHz
- FREQUENCY RESPONSE: +0.5dB 10Hz to Fs/2 (Nyquist)
- THD+N @ -1dBFS (1kHz): 0.0003% (-110dB)
- DYNAMIC RANGE: 120dB A-weighted
- 1/4" TRS JACK: TIP (Hot), RING (Cold) & SLEEVE (Shield)
Digital to Analogue Converter (Monitor and Line Outputs)
- MAXIMUM OUTPUT LEVEL: +18dBu (0dBFS digital maximum)
- OUTPUT IMPEDANCE: 100 Ω
- CROSSTALK: -120dB @ 1kHz, -115dB @ 10kHz
- FREQUENCY RESPONSE: +0.5dB 10Hz to Fs/2 (Nyquist)
- THD+N @ -1dBFS (1kHz): 0.00026% (-111.5dB)
- DYNAMIC RANGE: 124dB un-weighted, 126.5dB A-weighted
- 1/4" TRS JACK: TIP (Hot), RING (Cold) & SLEEVE (Shield)
Headphone Outputs
- MAXIMUM OUTPUT LEVEL: +18dBu (0dBFS digital maximum)
- OUTPUT IMPEDANCE: 50 Ω unbalanced
- CROSSTALK: -117dB @ 1kHz, -112dB @ 10kHz
- FREQUENCY RESPONSE: +0.5dB 10Hz to Fs/2
- THD+N @ -1dBFS (1kHz): 0.00023% (-112dB)
- DYNAMIC RANGE: 121dB un-weighted, 124dB A-weighted
- MAX LEVEL INTO 30ohms: 4V Peak, 2.85V RMS, 530mW
- MAX LEVEL INTO 60ohms: 5.82V Peak, 4.12V RMS, 565mW
- MAX LEVEL INTO 600ohms: 8.71V Peak, 6.16V RMS, 126mW
- 1/4" JACK: TIP (Hot), RING (Cold) & SLEEVE (Shield)
