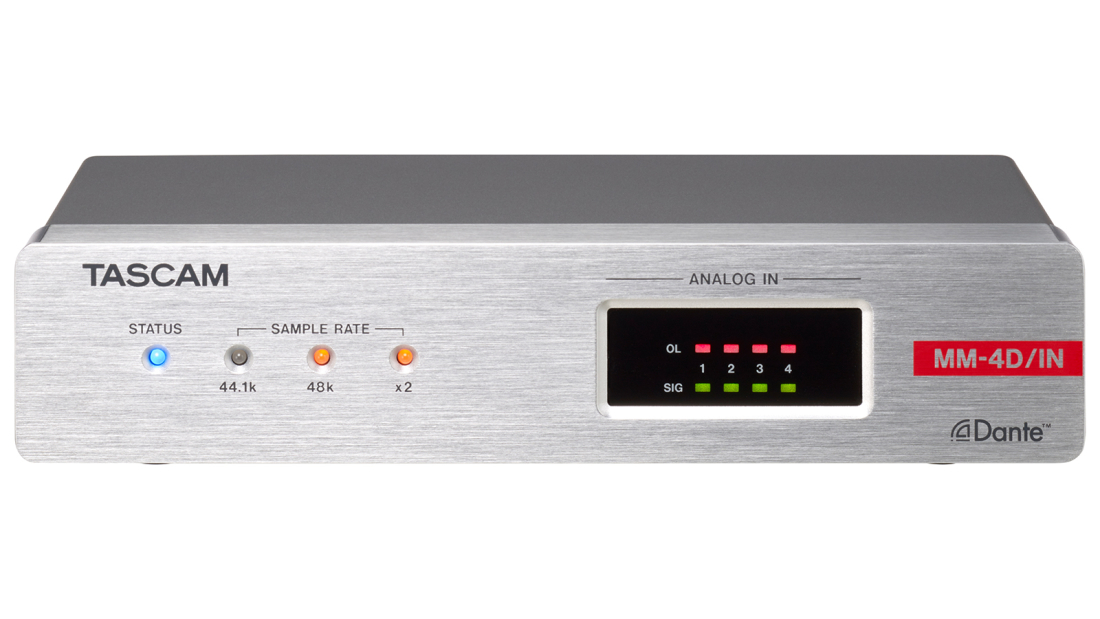

Tascam 4-Channel Mic/Line Input Dante Converter with Built-In DSP Mixer
Additional Photos:
The MM-4D/IN-E converts 4-channel mic/line input signals into 4-channel Dante output signals. It also supports 4-channel Dante input/output making it possible to use audio sources within an established Dante network.
Features
• 4-channel mic/line input with phantom power (+48v) support (Euroblock)• Supports remote mic gain control
• 4 Dante input/output
• Supports PoE (Power over Ethernet)
• Up to 24bit/96kHz
• Includes a variety of DSP functions for optimal use in different scenes/environments (Output effects, 8 in/4 out matrix mixer)
• Supports Dante daisy chain; this allows two Dante Compact Processor models to be connected without a network switch
• Flexible scene preset function allows to work in different area situations (Up to 50 presets)
• 2 types of user control software available for Windows/Mac/iOS/Android devices:
For full control: input/output routing selection, DSP/design/scene settings of the complete system, etc.
For simple control: simple app design for only the necessary functions such as area volume settings, etc.
• Remote control via GPI and Dante
• Half-rack mountable size
• Equipped with indicators that show LAN/Dante connection status and sample rate
• Equipped with signal indicators that monitor line input signals
• Configurable reference level (via remote control only)
• Surface rack mountable angles for installation under desks included
Specifications
GeneralFormats and channels: 44.1/48/88.2/96kHz,16/24-bit, 4 channels
Input/output ratings
DATA/DATA+PoE connectors
Connector: RJ-45
Transmission protocol: Dante
Gigabit Ethernet standard: 1000BASE-T (IEEE 802.3ab)
Cables: category 5e or faster STP cables
ANALOG IN connectors
Connector: XLR-3-31 (1: GND, 2: HOT, 3: COLD)
Minimun input level: -70 dBu
Maximum input level: +26 dBu
Input impedance: 2.0 kΩ or higher
Control input/output
External control connectors(LED/SWITCH)
Connectors: Euroblock 3.81mm pitch
LED connectors
Output format: open collector (10Ω output impedance, 48V withstand voltage, 35mA maximum current)
Low level maximum output voltage: 0.5 V
SWITCH connectors
Maximum input voltage: 5.5 V
High level minimum input voltage: 2.31 V
Low level maximum input voltage: 0.99 V
Other
Power: PoE class 0, TASCAM PS-P1220E AC adapter (sold separately)
Power consumption: 7.5W
